| Product Description | |
2CL77 China Wholesale Custom high voltage diodes :
Peak reverse repetitive voltage: 20KV
Max foward voltage: 75V
Max forward surge current: 5.0mA
Leakage current: 2.0uA

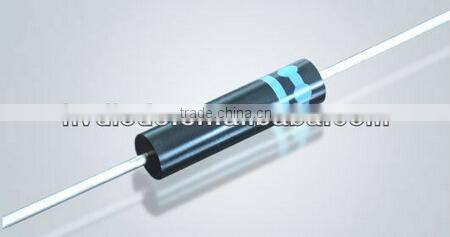

Dimension: φ3*12mm
Trr: 80-100nS
|
Features:
l Fast recovery l Low forward on pressure, low leakage current l Protection of avalanche breakdown l Antiimpacting of discharging of CRT high voltage surge current l Axial lead diode, could weld on tube pin l Epoxy resin molded and can resist corrosion on its surface |
|
Application:
l Television and FBT display
l neon lamp power supply, voltage multiplier assembly
l Cathode ion generator, laser power supply
l DC high voltage generator assembly
MAX.RATED VALUE
Rated Value |
Sign |
Condition |
2CL75 |
2CL77 |
Unit |
Peak Reverse Repetitive Voltage |
VRRM |
|
16 |
20 |
kV |
Average Forward Rectifier Current |
IO |
|
5.0 |
mA |
|
Max. Irrepetitive Surge current |
IFSM |
Ta=25℃,rated load,half cycle, single phase,50Hz |
0.5 |
A |
|
Junction Temperature |
Tj |
half cycle sinewave peak voltage |
120 |
℃ |
|
Ambient Humidity |
Tc |
|
100 |
℃ |
|
Store Humidity |
Tstg |
|
-40—120 |
℃ |
|
Electric Characteristic
Rated Value |
Sign |
Condition |
2CL75 |
2CL77 |
Unit |
Max. Forward Peak Voltage |
V |
IF=10mA |
50.0 |
62.5 |
V |

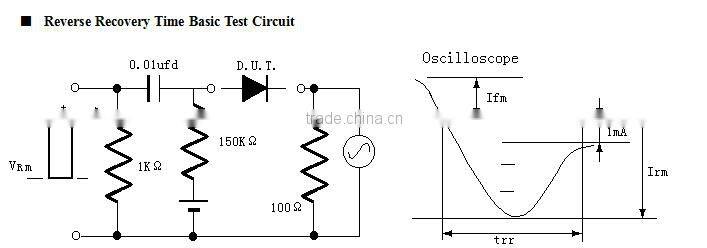

Max. Reverse Recovery Time |
trr |
IF=2mA IR=4mA |
0.1 |
μS |
|
Max. Reverse Leakage Current |
IR1 |
VR=VRRM ,25℃ |
2.0 |
μA |
|
Max. Reverse Leakage Current |
IR2 |
VR=VRRM ,100℃ |
5.0 |
μA |
|
Max. Junction Capacitor |
Cj |
|
2 |
pF |
|
| Related Products | |
| Packing & Shipping | |

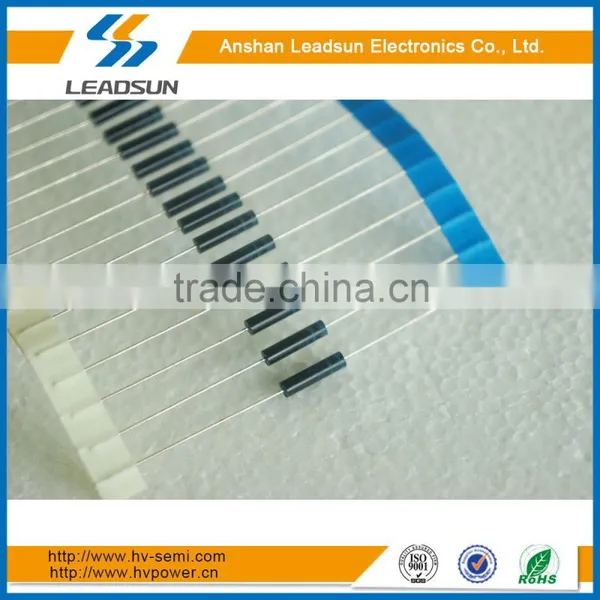

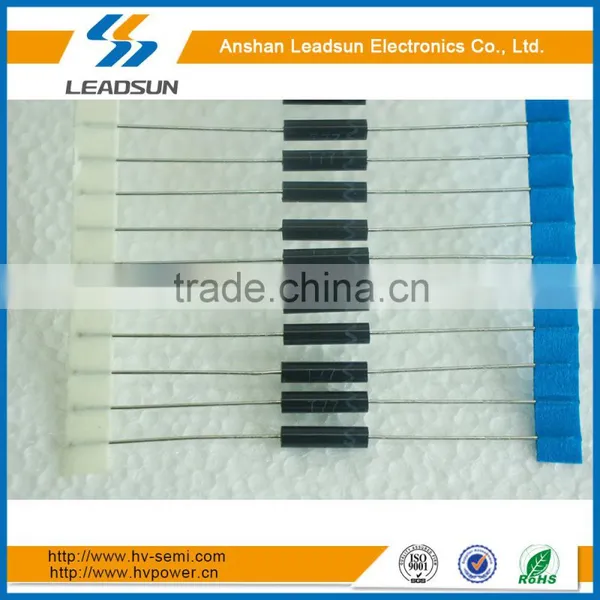

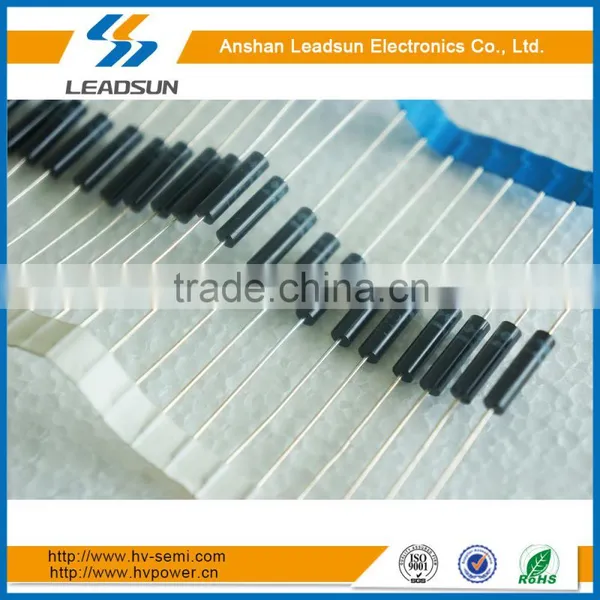

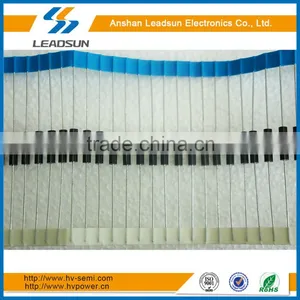

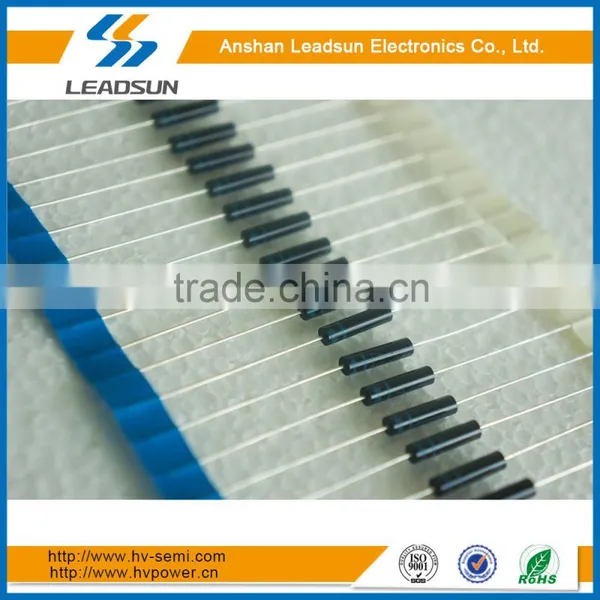

Packing: 200 pcs in one bag, 25 bags in one carton
| Certifications | |
| Patent | No. |
Industrial waste gas treatment of high frequency high voltage power supply |
ZL 2013 2 0269785.3 |
EHV adjustable ventilation load device |
ZL 2012 2 0096537.9 |
High frequency high power pulse laser power supply |
ZL 2012 2 0099007.x |
Combined PCB high-voltage load device |
ZL 2012 2 0098995.6 |
High frequency voltage multiplier assembly |
ZL 2012 2 0099008.4 |
Dry type high frequency high voltage transformer |
ZL 2012 2 0098417.2 |
Power resistive load test device |
ZL 2012 20096569.9 |
High power high voltage plug |
ZL 2012 2 2299106.8 |
| Company & Services | |
- Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
- Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
- Leadsun technical center record every order and product characteristics; sales department focus on market development tendency, will supply you Full Service.
- Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
- Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
