| Product Description | |

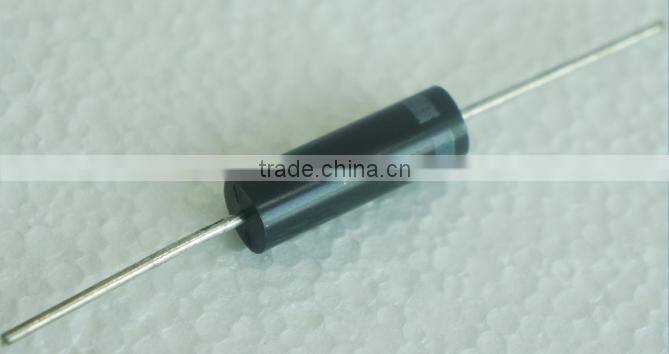

2CL2FL made in China High Quality High Voltage Switching Rectifiers Diode quote :
Peak reverse repetitive voltage: 15KV
Average current: 100mA
Max foward voltage: 22V
Max forward surge current: 10A
Leakage current: 2.0uA
Dimension: φ4.5*15mm
Trr: 100nS
More Choices :2CL2FF(8KV) 2CL2FG(10KV) 2CL2FH(12KV) 2CL2FM(20KV)
Middle power high voltage silicon rectifier diode adopts high reliable mesa structure and diffusion process, encapsulated
by epoxy resin in a compact package
nFeatures:
Avalanche breakdown protection
customization sizes
Encapsulated by epoxy resin, resistance to corrosion in surface
Trr:-40℃—+120℃
nApplications:
Electrostatic precipitator
High voltage generator
High voltage testing
nSpecifications
Type |
Repetitive Peak Reverse Voltage |
Average Forward Current |
Forward Peak Voltage |
Surge Forward Current |
Peak Reverse Current |
Reverse Recovery Time |
|
Ta=25℃ |
Ta=100℃ |
||||||
KV |
mA |
V |
A |
μA |
μA |
nS |
|
2CL2F |
8 |
100 |
9.0 |
20 |
2.0 |
40 |
— |
2CL2G |
10 |
100 |
11.0 |
20 |
2.0 |
40 |
— |
2CL2H |
12 |
100 |
13.0 |
20 |
2.0 |
40 |
— |
2CL2J |
15 |
100 |
16.0 |
20 |
2.0 |
40 |
— |
2CL2FF |
8 |
100 |
16.0 |
20 |
2.0 |
50 |
100 |
2CL2FG |
10 |
100 |
22.0 |
20 |
2.0 |
50 |
100 |
2CL2FH |
12 |
100 |
24.0 |
20 |
2.0 |
50 |
100 |
2CL2FL |
15 |
100 |
26.0 |
20 |
2.0 |
50 |
100 |
2CL2FM |
20 |
100 |
33.0 |
20 |
2.0 |
50 |
100 |

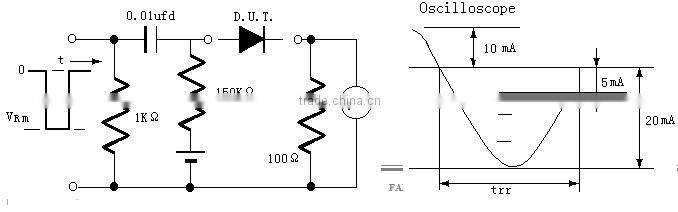

nTesting circuit of reverse recovery time

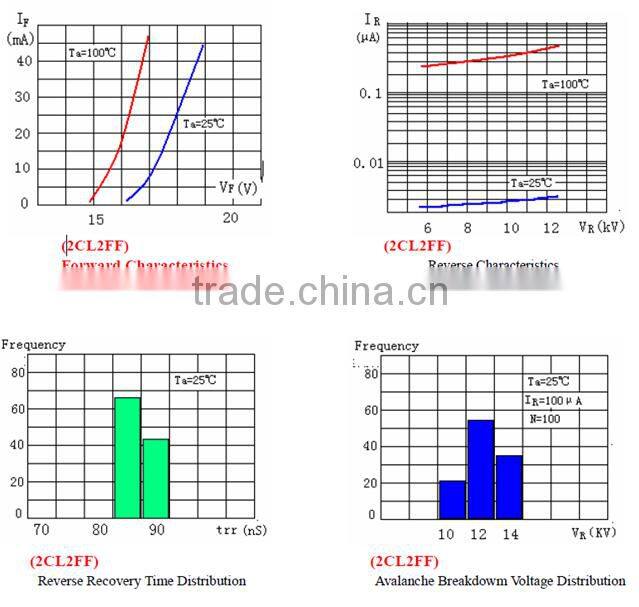

nCharacteristic curve
| Related Products | |
| Packing & Shipping | |
Packing: 200 pcs in one bag, 25 bags in one carton
| Certifications | |
| Patent | No. |
Industrial waste gas treatment of high frequency high voltage power supply |
ZL 2013 2 0269785.3 |
EHV adjustable ventilation load device |
ZL 2012 2 0096537.9 |
High frequency high power pulse laser power supply |
ZL 2012 2 0099007.x |
Combined PCB high-voltage load device |
ZL 2012 2 0098995.6 |
High frequency voltage multiplier assembly |
ZL 2012 2 0099008.4 |
Dry type high frequency high voltage transformer |
ZL 2012 2 0098417.2 |
Power resistive load test device |
ZL 2012 20096569.9 |
High power high voltage plug |
ZL 2012 2 2299106.8 |
| Company & Services | |
- Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
- Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
- Leadsun technical center record every order and product characteristics; sales department focus on market development tendency, will supply you Full Service.
- Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
- Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
