High Voltage Rectifier Diode 2CL75 Fast Recovery 100nS 16KV

Name: High Voltage Rectifier Diode 2CL75 Fast Recovery 100nS 16KV
Brand: Leadsun
Availability: InStock

FOB Price

US$ 0.15 - 0.3 / Piece

10000 Pieces(Min. Order)

Port Dalian
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Leadsun
Model Number	2CL75	Type	Rectifier Diode
Package Type	Surface Mount	Max. Forward Voltage	60V
Max. Reverse Voltage	16KV	Max. Forward Current	5mA
Max. Reverse Current	2.0uA

Product Description

2CL75 high voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube, molded in small volume and compact packaging surface by epoxy resin.

2CL75 high voltage diodes adopt the designing of high reliable multiple mesa structure and silicon tube,
molded in small volume and compact packing surface by epoxy resin.
Features:
Fast recovery
Low forward on pressure, low leakage current
Protection of avalanche breakdown
Antiimpacting of discharging of CRT high voltage surge current
Axia lead diode, could weld on tube pin
Epoxy resin molded and can resist corrosion on its surface
Application:
Television and FBT display
Cathode ion generator, laser power supply
Neon lamp power supply, voltage multiplier assembly
DC high voltage generator assembly

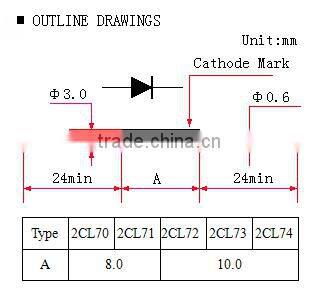

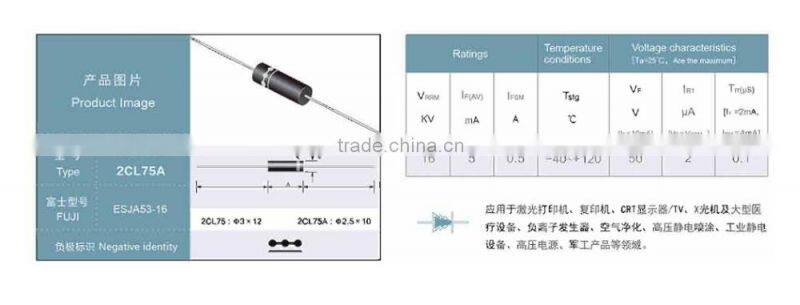

■MAX.RATED VALUE

Rated Value	Sign	Condition		Unit
Peak Reverse Repetitive Voltage	VRRM		16	KV
Average Forward Rectifier Current	Io		5.0	mA
Max. Irrepetive Surge Current	IFSM	Ta=25℃，rated load，half cycle，single phase，50Hz	0.5	A
Junction Temperature	Tj	half cycle sinewave peak voltage	120	℃
Ambient Humidity	Tc		100	℃
Store Humidity	Tstg		-40~120	℃

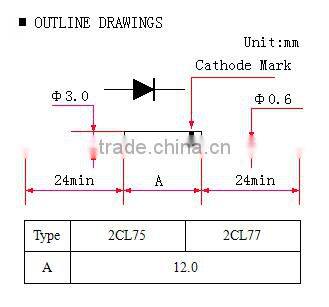

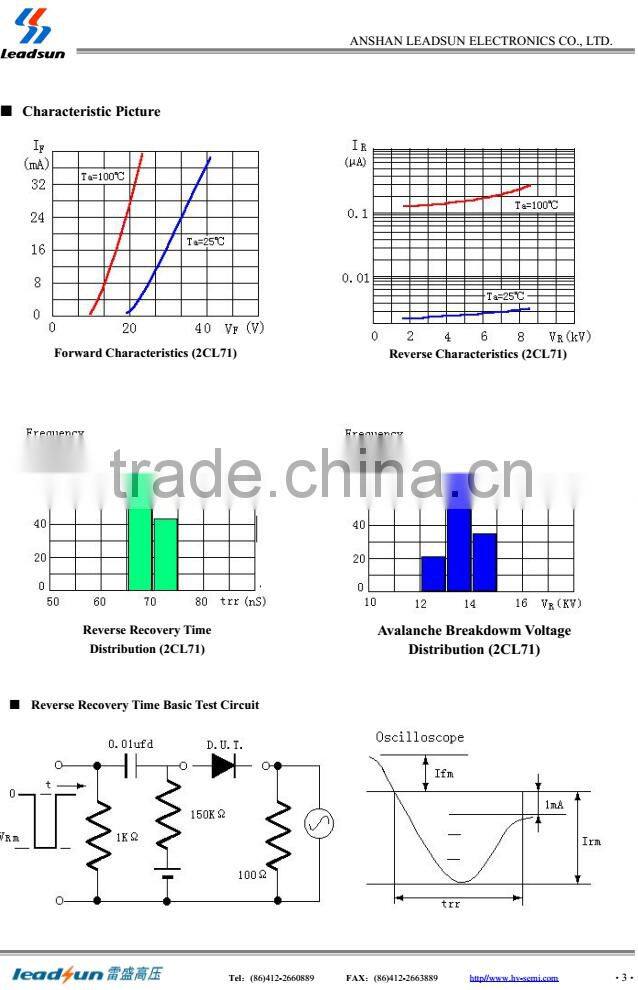

■Electric Characteristic

Rated Value	Sign	Condition		Unit
Max. Forward Peak Voltage	V	IF=10mA	50.0	V
Max. Reverse Recovery Time	trr	IF=2mA IR=4mA	0.1	μS
Max. Reverse Leakage Current	IR1	VR=VRRM, 25℃	2.0	μA
Max. Reverse Leakage Current	IR2	VR=VRRM, 100℃	5.0	μA
Max. Junction Capacitor	Cj		2	pF

Related Products

Packing & Shipping

Packing: 200 pcs in one bag, 25 bags in one carton

Certifications

Patent	No.
Industrial waste gas treatment of high frequency high voltage power supply	ZL 2013 2 0269785.3
EHV adjustable ventilation load device	ZL 2012 2 0096537.9
High frequency high power pulse laser power supply	ZL 2012 2 0099007.x
Combined PCB high-voltage load device	ZL 2012 2 0098995.6
High frequency voltage multiplier assembly	ZL 2012 2 0099008.4
Dry type high frequency high voltage transformer	ZL 2012 2 0098417.2
Power resistive load test device	ZL 2012 20096569.9
High power high voltage plug	ZL 2012 2 2299106.8
