| Product Description | |

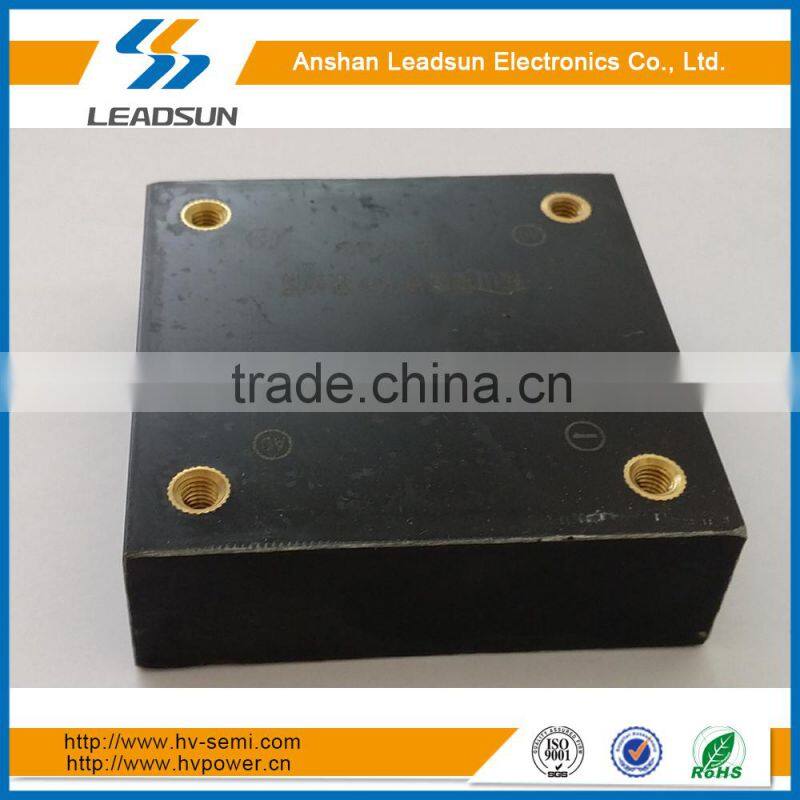

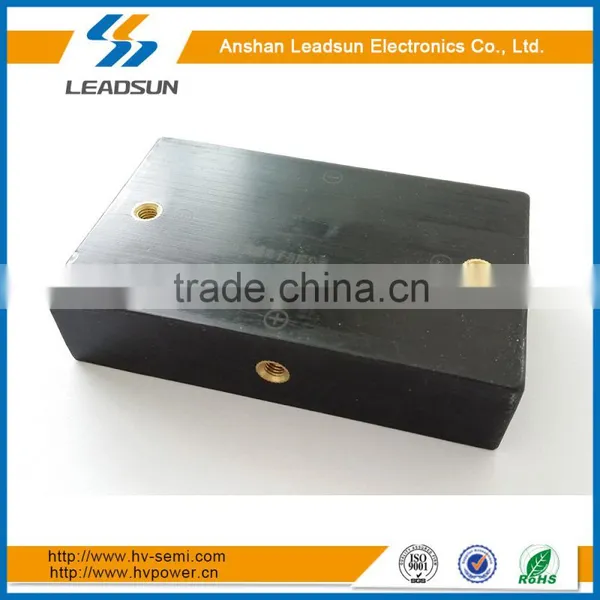

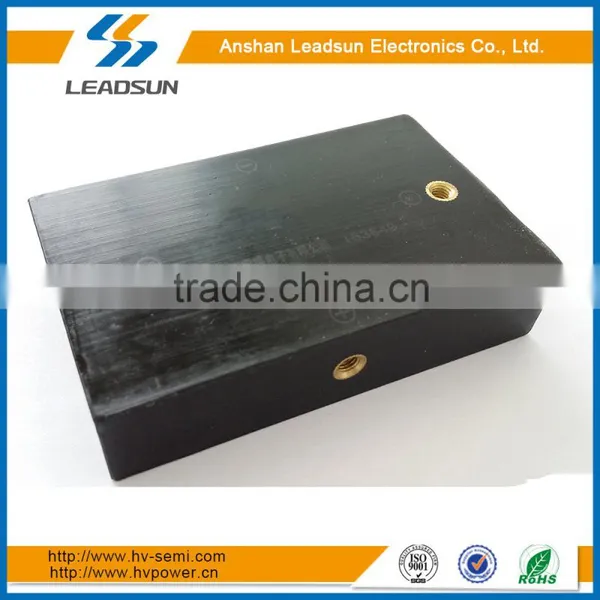

Original new QLG50KV 2.0A-CT high voltage bridge rectifier for medical equipments :
Feature:
| Application:
|
Type | Peak reverse repetitive voltage VRRM | Forward average rectifier current IF(AV) | Max forward voltage VFM | Max forward surge current IFSM | Normal Temperature leakage current IRRM | Time of reverse recovery trr |
| KV | A | V | A | μA | nS | |
| QLG40KV/0.5A | 40 | 0.5 | 72 | 10 | 5 | 100 |
| QLG60KV/0.5A | 60 | 0.5 | 108 | 10 | 5 | 100 |
| QLG80KV/0.5A | 80 | 0.5 | 144 | 10 | 5 | 100 |
| QLG40KV/1.0A | 40 | 1.0 | 72 | 20 | 5 | 100 |
| QLG60KV/1.0A | 60 | 1.0 | 108 | 20 | 5 | 100 |
| QLG40KV/2.0A | 40 | 2.0 | 72 | 40 | 5 | 100 |
| QLG50KV/2.0A | 50 | 2.0 | 90 | 40 | 5 | 100 |
QLG40KV/2.0A-CT | 40 | 2.0 | 72 | 40 | 5 | 100 |
| QLG50KV/2.0A-CD | 50 | 2.0 | 90 | 40 | 5 | 100 |
| QLG50KV/2.0A-CT | 50 | 2.0 | 90 | 40 | 5 | 100 |
| 2*QLG20KV/0.1A | 20 | 0.1 | 36 | 2 | 5 | 100 |
| 2*QLG30KV/0.1A | 30 | 0.1 | 54 | 2 | 5 | 100 |
| 2*QLG40KV/0.5A | 40 | 0.5 | 72 | 10 | 5 | 100 |
We not only supply standard high-voltage rectifier blocks, but customized ones too.
Our products range from 1,000V to 500KV, from 5mA to 50A and from 10 to 300KHz. The leakage current is
aslow as 0.5uA, and custom shape are not a problem. Samples can be ready for you within 10 days. Quality
control is strict with our 10-member QC team carrying out marry different tests to ensure products meet RoHS
standards. Smaller orders are welcome, and you can start with an order of just $500 worth of goods.
| Packing & Shipping | |
1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 7days after receiving the payment.
4.We accept L/C, T/T, Western Union payment.
5.Please make sure your delivery address and contact telephone number are correct when you bid the item.
6.You can track the situation of your product on website after they are shipped out.
| Main Products | |
| Certifications | |
| Patent | No. |
Industrial waste gas treatment of high frequency high voltage power supply | ZL 2013 2 0269785.3 |
EHV adjustable ventilation load device | ZL 2012 2 0096537.9 |
High frequency high power pulse laser power supply | ZL 2012 2 0099007.x |
Combined PCB high-voltage load device | ZL 2012 2 0098995.6 |
High frequency voltage multiplier assembly | ZL 2012 2 0099008.4 |
Dry type high frequency high voltage transformer | ZL 2012 2 0098417.2 |
Power resistive load test device | ZL 2012 20096569.9 |
High power high voltage plug | ZL 2012 2 2299106.8 |
| Company & Services | |
- Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
- Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
- Leadsun technical center record every order and product characteristics; sales department focus on market development tendency, will supply you Full Service.
- Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
- Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
