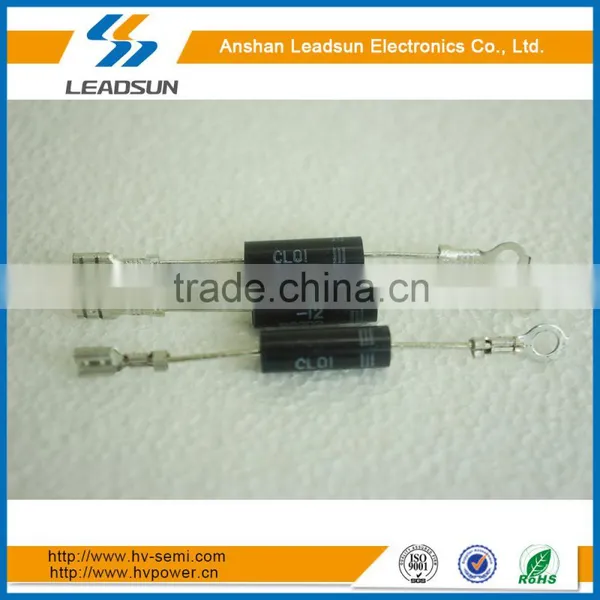

CL01-12 power rectifier diode of 350mA to 500mA with terminals :
|
Repetitive Peak Reveres (VRRM): 12KV Maximum Junction Temperature (Tjmax): 125 °C |
|
Absolute Maximum Ratings
No. |
Item |
symbol |
Rating |
Unit |
Conditions |
1 |
Repetitive Peak Reveres |
VRRM |
12 |
KV |
|
2 |
Maximum Junction Temperature |
Tjmax |
125 |
℃ |
|
3 |
Storage Temperature |
Tstg |
-40~+125 |
℃ |
|
4 |
Average Forward Current |
IO |
350 |
mA |
|
5 |
Forward Surge Current |
IFSM |
30 |
A |
Electrical Characteristics (Tamb=25℃,unless otherwise specified )
No. |
Item |
symbol |
Rating |
Unit |
Conditions |
1 |
Normal Temperature Reverse Current |
IR1 |
2.0max |
μA |
VR=VRRM |
2 |
High Temperature Reverse Current |
IR2 |
50max |
μA |
VR=VRRM Tamb=100℃ |
3 |
Reverse Breakdown Voltage |
VF |
13.0 |
V |
IF=350mA |
4 |
Avalanche Breakdown Voltage |
V(BR) |
9.5 min. |
KV |
IR=100uA |
| Type |
FUJI replacement |
Peak reverse repetitive voltage Vrrm KV |
Average forward current Lf(av) mA |
Max. forward voltage Vfm V |
Max forward surge current lfsm A |
Leakage current lrrm uA |
Time of reverse recovery Trr nS |

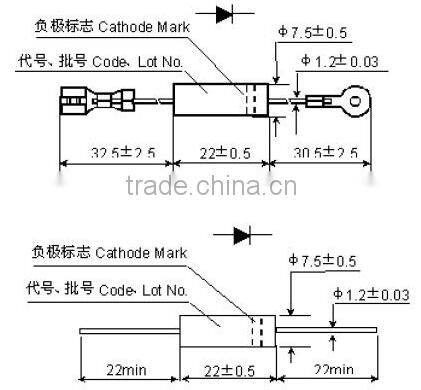

Dimension φ*A mm |
| CL01-09 | ESJC01-09 | 9 | 350 | 10 | 30 | 5 | 7.5*22 | |
| CL01-12 | ESJC01-12 | 12 | 350 | 13 | 30 | 5 | 7.5*22 | |
| CL01-15 | 15 | 350 | 16 | 30 | 5 | 7.5*22 | ||
| CL04-09 | 9 | 500 | 10 | 40 | 5 | 7.5*22 | ||
| CL04-12 | 12 | 500 | 13 | 40 | 5 | 7.5*22 | ||
| CL04-15 | 15 | 500 | 16 | 40 | 5 | 7.5*22 | ||
| CL01-10D | 10 | 350 | 11 | 30 | 5 | 5*9 | ||
| CL01-12D | ESJC13-12 | 12 | 350 | 13 | 30 | 5 | 5*9 | |
| CL01-15D | 15 | 350 | 16 | 30 | 5 | 5*9 |
