| Product Description | |

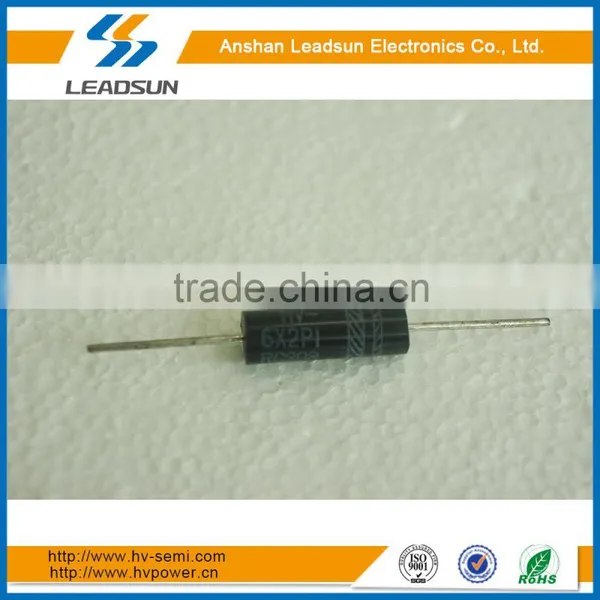

HV-6X2PI Factory Manufacturer High voltage Bidirectional diode

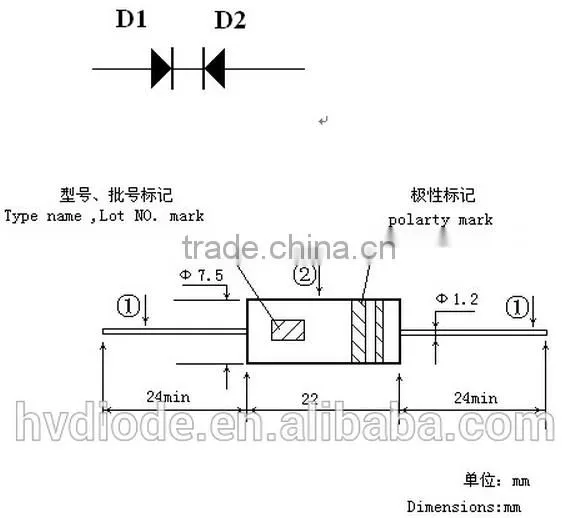

The body shall be clean and shall not bear any stain, rust or flaw. The color of the case will be black
|
Repetitive Peak Reveres (VRRM): 6/1.7 KV Maximum Junction Temperature (Tjmax): 130 °C Max foward voltage: 13V |
|
Absolute Maximum Ratings
No. |
Item |
symbol |
Rating |
Unit |
Conditions |
|
D1 |
D2 |
|||||
1 |
Repetitive Peak Reveres |
VRRM |
6 |
1.7 |
KV |
|
2 |
Maximum Junction Temperature |
Tjmax |
130 |
C |
|
|
3 |
Storage Temperature |
Tstg |
-40~+130 |
C |
|
|
Electrical Characteristics (Tamb=25℃,unless otherwise specified )
No. |
Item |
symbol |
Rating |
Unit |
Conditions |
|
D1 |
D2 |
|||||
1 |
Normal Temperature Reverse Current |
IR1 |
10max |
10max |
uA |
VR=VRRM |
2 |
High Temperature Reverse Current |
IR2 |
20max |
20max |
UA |
VR=VRRM Tamb=100℃ |
3 |
Reverse Breakdown Voltage |
VBR |
7 min |
2.1~2.8 |
KV |
IR=100uA |
