2CL70A Good Performance Ultra Fast High Voltage Diode

2CL70A Good performance ultra fast high voltage diode :

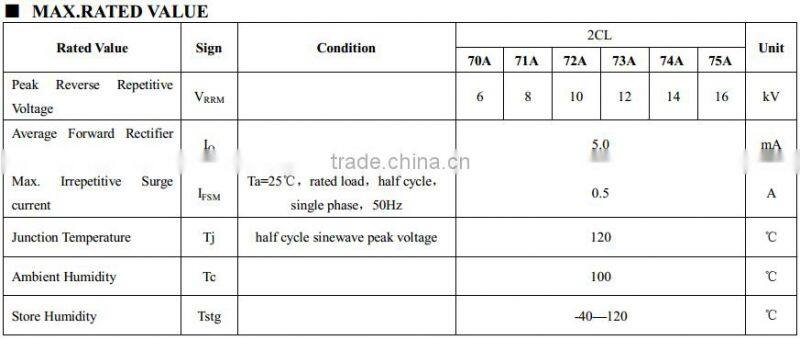

Peak reverse repetitive voltage:     6KV

Max foward voltage:                      24V

Average forward current:              5.0mA

Surge current:                                0.5A

Leakage current:                            2.0uA

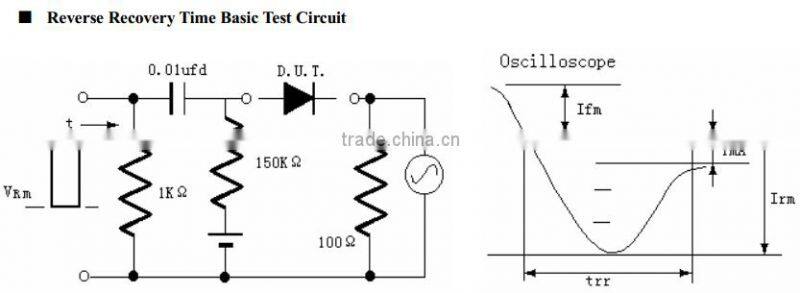

Trr:                                                 80nS

Dimension:                                    diameter 2.5*6.5mm

Packing: 200 pcs in one bag, 25 bags in one carton

• Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
• Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
• Leadsun technical center record every order and product characteristics; sales department focus on market development tendency, will supply you Full Service.
• Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
• Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.

For more information,please contact me.
We can also customize the products as your need.
