| Product Description | |

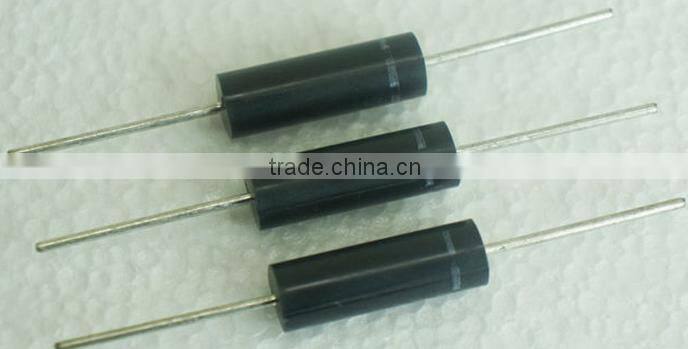

CL03-10T Trustworthy China Supplier high voltage diodes
Repetitive Peak Reveres (VRRM): 10KV
Maximum Junction Temperature (Tjmax): 125 °C
Storage Temperature(Tstg): -40~+125 °C
Average Forward Current(IO): 300 mA
Forward Surge Current(IFSM): 30 A
Absolute Maximum Ratings
No. | Item | symbol | Rating | Unit | Conditions |
1 | Repetitive Peak Reveres | VRRM | 10 | KV |
|
2 | Maximum Junction Temperature | Tjmax | 125 | ℃ |
|
3 | Storage Temperature | Tstg | -40~+125 | ℃ |
|
4 | Average Forward Current | IO | 300 | mA |
|
5 | Forward Surge Current | IFSM | 30 | A | |
Electrical Characteristics (Tamb=25℃,unless otherwise specified )
No. | Item | symbol | Rating | Unit | Conditions |
1 | Normal Temperature Reverse Current | IR1 | 2.0max | μA | VR=VRRM |
2 | High Temperature Reverse Current | IR2 | 50max | μA | VR=VRRM Tamb=100℃ |
3 | Reverse Breakdown Voltage | VF | 18.0 | V | IF=350mA |
4 | Reverse Recovery Time |
Trr | 100 | nS |
IF=50mA IR=100mA |
| Related Products | |
| Packing & Shipping | |
Packing: 200 pcs in one bag, 25 bags in one carton
1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 7days after receiving the payment.
4.We accept L/C, T/T, Western Union payment.
5.Please make sure your delivery address and contact telephone number are correct when you bid the item.
6.You can track the situation of your product on website after they are shipped out.
| Certifications | |
Not only MADE IN CHINA, but also CREATED IN CHINA.
| Patent | No. |
Industrial waste gas treatment of high frequency high voltage power supply | ZL 2013 2 0269785.3 |
EHV adjustable ventilation load device | ZL 2012 2 0096537.9 |
High frequency high power pulse laser power supply | ZL 2012 2 0099007.x |
Combined PCB high-voltage load device | ZL 2012 2 0098995.6 |
High frequency voltage multiplier assembly | ZL 2012 2 0099008.4 |
Dry type high frequency high voltage transformer | ZL 2012 2 0098417.2 |
Power resistive load test device | ZL 2012 20096569.9 |
High power high voltage plug | ZL 2012 2 2299106.8 |
| Company & Services | |
- Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
- Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
- Leadsun technical center record every order and product characteristics; sales department focus on market development tendency, will supply you Full Service.
- Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
- Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
