Price of Forklift CPD25 Heli Forklift of China 2.5T Forklif Truck Anhui Heli Forklift Price of Forklift
Specifications

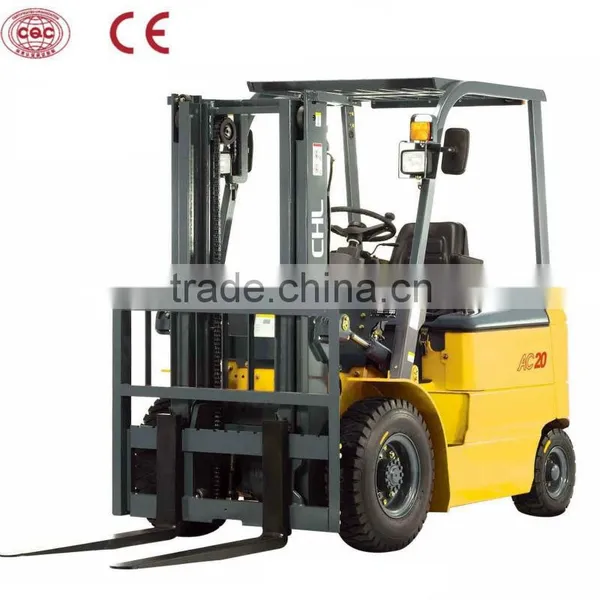

price of forklift1. With CQC CE certificate
2. With Euro 3 emission standard
3. With modern design,reliable quality forklift

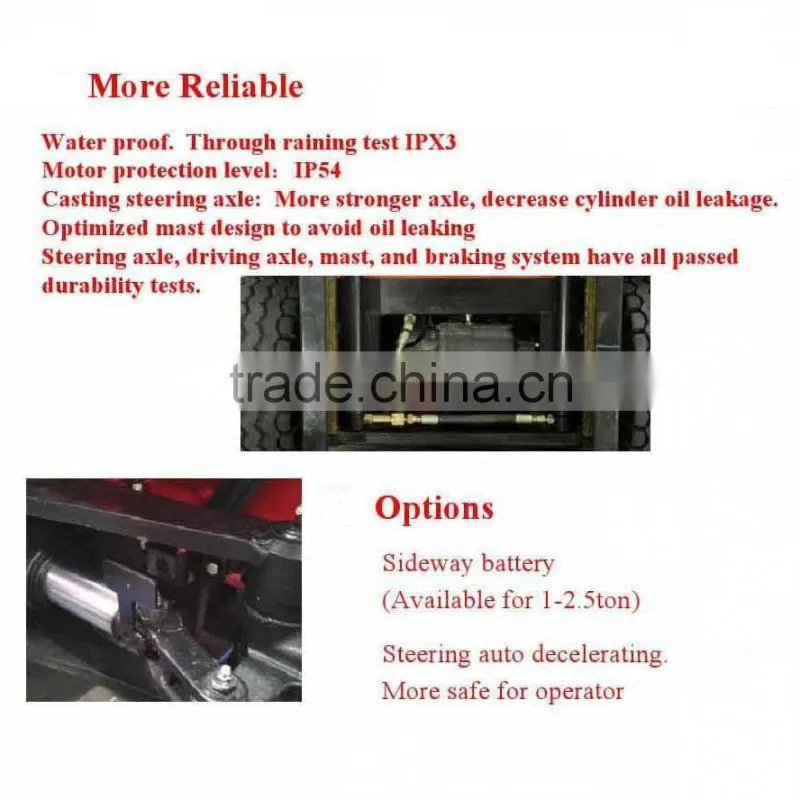

Advantage:
Specifications:
| Manufacture's name | ANHU HELI CO., LTD. | ||
| Model Designation | CPD25 | ||
| Configuration Number | FJ1 | FJ2 | |
| Load Capacity | Q(kg) | 2500 | |
| Load Center | c(mm) | 500 | |
| Power Type | Battery | ||
| Tyre Type | Pneumatic | ||
| Tyres Number(Front/Rear) | 41672 | ||
| Tread(centre of tyre),front | b10(mm) | 960 | |
| Tread(centre of tyre),rear | b11(mm) | 850 | |
| Tyre size,Front | 7.00-12-12PR | ||
| Tyre size,Rear | 18×7-8-14PR | ||
| Load Distance | x(mm) | 483 | |
| Mast Tilt Angle,F/R | α/β(º) | 6/12 | |
| Height with Mast Lowered | h1 | 2000 | |
| Free Lift | h2 | 170 | |
| Standard Lift Height | h3 | 3000 | |
| Height with Mast Extended | h4 | 3995 | |
| Overhead Guard Height | h6 | 2130 | |
| Fork Size | s/e/L | 45×100×1070 | |
| Fork Carriage to DIN 15173 A/B | 2A | ||
| Length to fork face | L2 | 2398 | |
| Overall Width | b1 | 1150 | |
| Outside Turning Radius | Wa | 2065 | |
| Ground Clearance at mast ,Loaded | m1 | 140 | |
| Ground Clearance at centre of wheelbase, Loaded | m2 | 155 | |
| Travel Speed,with/without load | km/h | 14/15 | |
| Lifting Speed,with/without load | mm/s | 260/490 | |
| Lifting Speed,with/without load | mm/s | 310/440 | |
| Lowering Speed | mm/s | 450 | |
| Gradient performance with load | % | 15 | |
| Max.draw bar pull with load | N | 12800 | |
| Acceleration time (10 metres)W/O load | s | 5.0/4.6 | |
| Total Approximate Weight(W/O battery) | kg | 4200 | |
| Battery Voltage/rated capacity(5h) | V/Ah | 48/600 | |
| Drive Motor-60 Min. Rating | kw | 11.1(AC) | |
| Pump Motor-15 Min.Rating | kw | 10.5(DC) | |
| Pump Motor-15 Min.Rating | kw | 12(AC) | |
| Drive Motor Control Method | MOSFET/AC | ||
| Pump Motor Control Method | MOSFET/AC | ||
| Pump Motor Control Method | MOSFET/AC | ||
| Service Brake/Parking Brake | Hydraulic/Mechanical | ||
| Relief Pressure | Mpa | 17.5 | |
Our Services
At Shintool machinery, we supply ONE-STOP- SHOP solution service for warehouse equipments and Chinese brand forklift
parts
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business
with us and - also any other Chinese suppliers, we can be the position of supplying ONE STOP- SHOP export service. Our nearest export port is Shanghai, and Ningbo.
We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one
B/L supply and other export issue service
