Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 2000KG Stationary Scissor Lift Table With Max.height 1000mm (Customizable)

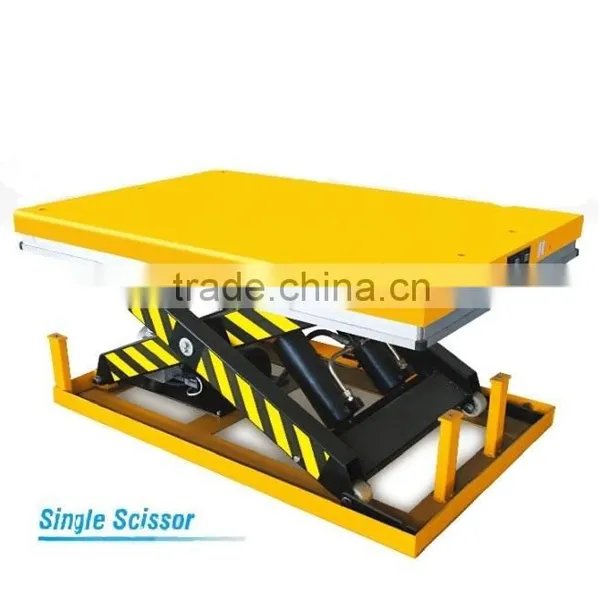

2000KG Stationary Scissor Lift Table With Max.height 1000mm (Customizable)

2000KG Stationary Scissor Lift Table With Max.height 1000mm (Customizable) photo-1
US$ 1 - 1,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Shintool
Model Number:
DG2001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Shintool
Model Number DG2001
Lift Mechanism Scissor Lift
Lift Drive / Actuation Electric Motor
Power 0.85Kw
Rated Loading Capacity 2000Kg
Min. Lifting Height 230mm
Max. Lifting Height 1000mm
Table Size 1300*850mm
Overall Dimensions 1300*850*230mm
Weight 235Kg
Certification ISO,CNAS,CE,IAF
Warranty One year guarantee
After-sales Service Provided Overseas third-party support available

Product Description



Advantages



1. This series of products are mainly used in the production line in industrial and mining enterprise industry. They can also be used as lifts to convey goods in other industries. The products can be made according to the parameters by customers.


 2. You can control the lift up and down both on the platform and the ground, just need press stop button, it can stop at any point if you want.


3.  Types of control mode: manual, electrical, we can also install the remote control device according to your requirement.


4. We also supply spare parts free and supply technical supporting all the time.(Spare parts: control button, travel switch, Oil cylinder seals ect.)



Specifications



Model DG2001
Rated capacitykg2000
Max. lift heightmm1000
Min. height of tablemm230
Table sizemm1300×850
Service weightkg235
Base sizemm1220×785
Rise times20-25
Electrical source parameterV/Hz380V/50Hz













Product details

 2000KG Stationary Scissor lift table with Max.height 1000mm (Customizable)2000KG Stationary Scissor lift table with Max.height 1000mm (Customizable)2000KG Stationary Scissor lift table with Max.height 1000mm (Customizable)




Packaging & Shipping



Packaging & Shipping



2000KG Stationary Scissor lift table with Max.height 1000mm (Customizable)







Our Services



Our Services



At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.



Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.

Our nearest export port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.



Warranty details



SHINTOOL provide the warranty period to Motorcycle hydraulic scissor lift, for a period of 1 year after the date of Bill of Lading.



During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be

defective in material or workmanship when under proper operation during warranty period.



After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send quotation for

the new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
