3.5 Ton Diesel Forklift

Hangzhou Shintool Machinery Co., Limited
3.5 Ton Diesel Forklift thumbnail-1
3.5 Ton Diesel Forklift thumbnail-2
3.5 Ton Diesel Forklift thumbnail-3
3.5 Ton Diesel Forklift photo-1
3.5 Ton Diesel Forklift photo-2

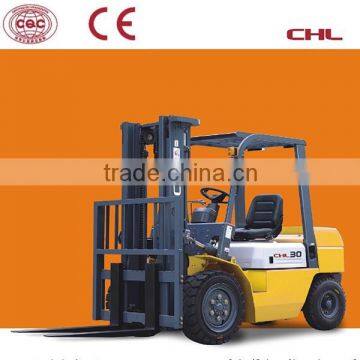

3.5 Ton Diesel Forklift photo-3
US$ 9,000 - 12,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI Second Brand: CHL
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Nanjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HELI Second Brand: CHL
Model Number CPCD35
Type Other, Diesel
Power Souce Diesel Engine
Rated Loading Capacity 3500kg
Max. Lifting Height 4262mm
Min. Lifting Height 2190mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions 3763mm*1225mm*2190mm
Certification CQC,CE
After-sales Service Provided Engineers available to service machinery overseas





Factory Introduction





 1.  Factory Introduction
3.5 ton Diesel Forklift







Product Details

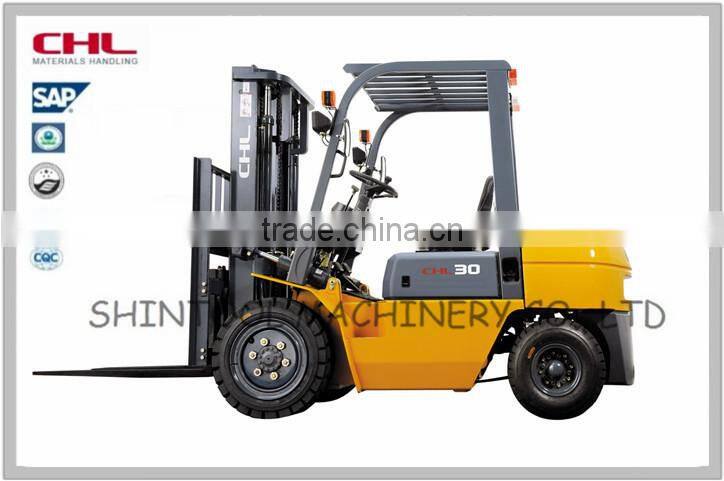

2. Products Show

3.5 ton Diesel Forklift



3. Details picture

3.5 ton Diesel Forklift



4. Product testing

3.5 ton Diesel Forklift





5.  Product Standard Configuration



ForkTool Transmission oil dipstickBackrest
Overhead guard HornReversing lightHour meter
Oil lever gaugeCharging indicatorWater temperature gaugeOil pressure alarm
Steering indicatorWide view mastStandard seatFront lamp
Rear combined lightRedal padOverhead guard rain cover Transmission oil filter element
Backward buzzerTraction pin  Hydraulic oil return circuit filer elementNeutral gear safety swith
Control valveAir inletting deviceLiftingand tilting operation leverCable type packing brake
Hydraulic oil dipstickPreheating indicatorWhoolley hydraulicpowered steeringLifting oil circuit flow regulator
Durable tread tyre Whirlwind air cleanerTilting adjustale steering columnEngine automatic preheating system



6.   Forklift Optional Devices and Accessories

CabinSpeedometerFire extinguisherSolid tyre
Rear working lampAuxiliary piplineTransmission oil temperature gaugeCustomer made color
Suspension seatWarm air blowerHigh air exhaustiong deviceTilt cylinder jacket



7.  Forklift Specifications

GeneralManufacturer                  Anhui Heli Co., Ltd
Model  CPCD25CPCD30CPCD35
Power Type                         Diesel
Rated Capacitykg250030003500
Load Centermm500500500
SizeOverall max.lifting height(with backrest)mm403042624262
Max.Lifting heightmm300030003000
Height mast retracted(upright)mm200020652180
Free lift heightmm170160170
Backrest height(from upper face of forks)mm99512271222
Overall height(overhead guard)mm217021902190
Overall length(without forks)mm3646/25763752/26823763/2693
Wheel basemm160017001700
Min.groud clearance under mastmm110135135
Overall widthmm117012251225
Lateral fork adjustment(Outside of fork)mm1024/2001060/2501060/250
Tread(front)mm970/9701000/9701000/970
Inside turning radiusmm224024002420
Outside turning radiusmm160200200
Min.intersecting aislemm228023802400
Tilting angles(forward/backward) 6°/12°6°/12°6°/12°
Fork Sizemm1070*122*401070*125*451070*125*50
Service Masskg368042704700
PerformanceMax.Traveling speeds(laden/unladen)km/h18/1919/2019/19
Lifting Speeds(laden/unladen)mm/s506/545465/490370/400
Lowering Speeds(laden/unladen)mm/s450/550450/550350/370
Max.Draw-bar pull(laden/unladen)kN18.3/13.320/15.820/16
Max.Negotiable Gradient(laden/unladen)%20/2015/2020/20
TyreWheel (Front/Rear) X=Driving Wheel 2X/22X/22X/2
Tyre(Front/Rear)                         Pneumatic type
Tyre size(Front) 7.00-12-12PR28x9-15-12PR28x9-15-14PR
Tyre size(Rear) 6.00-9-10PR6.50-10-10PR6.50-10-10PR
EngineInternal Combustion Engine Model  Japan C240PKJJapanese 4JG2Japanese 4JG2
Internal Combustion Engine Rated Output kw/rpm35.4/250044.9/245044.9/2450
Internal Combustion Engine Rated TorqueNm/rpm139/1800186.3/1800186.3/1800
Fuel Tank CapacityL606060



8. Forklift Optional attachments

3.5 ton Diesel Forklift







Porduct Warranty







9.  Product warranty term



  • 15 months or 2000 working hours (which comes first).
  • We provide the replacement parts for free within the warranty period.







Certificates







10. Certificates

3.5 ton Diesel Forklift









FAQ







11. FAQ

1. Who is HELI ?

HELI is the forklift first brand in China. Racking Top 9 in the global forklift Suppliers in 2012 year. Market share 32% in domestic market
and export to more than 150 countries.



2. What is brand CHL?

CHL is a new brand created by the HELI factory on 2013. It is a new business of HELI.



3. What is the difference between HELI brand forklift and CHL brand forklift ?



SameDifference
Same FactoryDifferent Painting Color
Same ComponentsDifferent Brand Name
Same Assembly LineDifferent Brand Name
Same Support TeamBetter Price





4. Who is Shintool ?

Shintool machinery is the company which been officially authorized by HELI factory to sell brand “CHL” forklift which produced by the
HELI factory.



We are sincerely looking for dealers for CHL forklifts in worldwide market,
and welcome your contact any time!


Our Services



12. Our Services



At Shintool machinery, we supply ONE-STOP- SHOP  solution service for warehouse equipments and Chinese brand forklift

parts


Depends on 7 years experience and profession on the Chinese export business, any customer who  have the business

with us and - also any other Chinese suppliers,  we can be the position of supplying  ONE STOP- SHOP   export service.  Our nearest
export port is Shanghai, and Ningbo.



We can be the main exporter who is in charger of connecting other suppliers,  organizing the shipment, LCL load, one

B/L supply and other export issue service.



Business Range







13. Business Range

3.5 ton Diesel Forklift
