Specifications

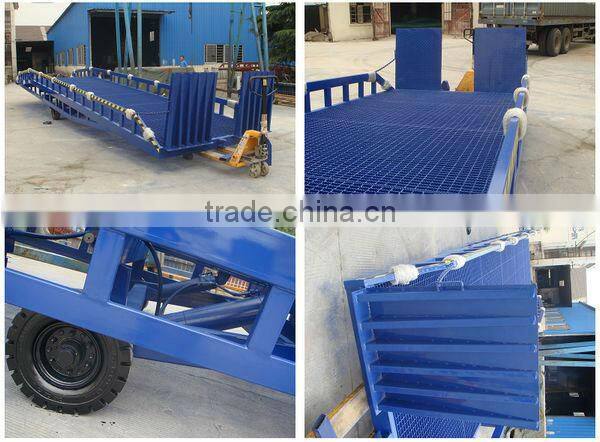

mobile container load ramp1. Solid tyre wheels
2. Skid preventions armor plate
3. Safety precautions chain
4. Customizable
Advantages
1. The ramp is used together with forklift truck for loading and unloading the cargos.
2. The ramp using the hydraulic pump,and no need the electric power source,can adjust the height
of the ramp easily.
3. We use the anti-skid steel grate plate to make sure the safety during operation.
The steel grate plate is durable, not easy to be ponding,and not easy to deformation.
The surface of the plate is with oval anti-skid sawtooth which will be more effective to provide the forklift tyrefrom wearing during operation.
4. The thickness of the material is 32mm,and the material anti-skid density space is 30*25mm which make the whole machine more steady and durable.
5. We use solid tyres instead of the pneumatic tyres which will be more safety and easy to control during operation,we also choose different tyre size (like 500MM-8,600MM-9)for the different models.
Specifications
| Model | DCQY12-0.8 | |
| Cacpacity | kg | 12000 |
| Length | mm | 11200 |
| Width | mm | 2120 |
| Height | mm | 1000 |
| Max.height | mm | 1800 |
| Lifting range | mm | 1000-1800 |
Product details
Hydraulic system:
1. With handle pump, screw the return valve clockwise.
2. Move the handle stick, to lift the ramp slowly.
3. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.

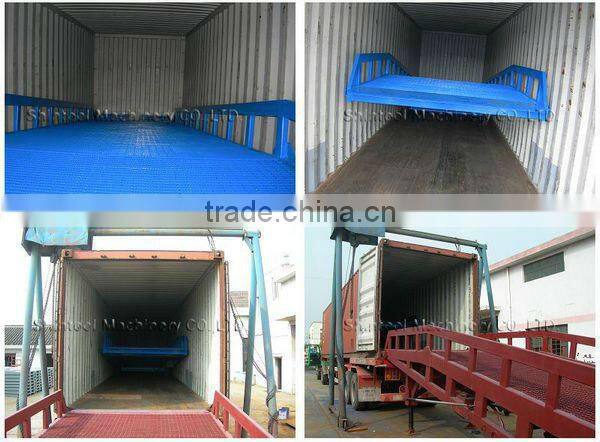

Packaging & Shipping
Operation:
1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate.
3. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain.
The hyraulic system and the tyres of ramp do not carry the weight.
4. Operating starts.
5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6. Uplifting the afterbody of the ramp to move around hang on the truck.
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.
Our nearest export port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to Motorcycle hydraulic scissor lift, for a period of 1 year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be
defective in material or workmanship when under proper operation during warranty period.
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will sendquotation for
the new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
