Specifications
Scissor Work Platform1.Platform size:2200*1000*1100mm
2.Max.platform height:9000mm
3.Capacity:500kg
4.CE certificate
Advantage
Our lifting Machinery with high working capacity, most spacious platforms for several people to work on, easily moved, high strength steel structures, smoothly lifting up and dropping down,easily operated few faults.
Moving method
4 wheel mobile or 2 wheel towable, tires are optional, it could be pneumatic rubber tires, solid rubber tires or polyurethane tires.
Power sources
Local power available at the working sites(110V,220V,380V,415V) Working heights: ranging from 4m,6m,8m,10m,12m
Application
It is widely used for the equipments installations and maintenance at the following places like construction sites
workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
We can design good as customers' requirements!
Specifications
| model number | SJY0.5-9 | |
| Maximum platform height | mm | 9000 |
| Minimum platform height | mm | 1360 |
| Platform size | mm | 2200x1000x1100 |
| Rated lifting capacity | kg | 500 |
| The developed dimension | mm | 2700x2200 |
| Elevating time(up) | s | 77 |
| Driving motor | v/kw | 24/1.2 |
| Lifting motor | v/kw | 24/2.2 |
| Aneroid Battery | v/Ah | 2x12/150 |
| Charger | v/A | 24/20 |
| Electromotor power | kw | 2.2 |
| Overall weight | kg | 1600 |
| Overall length | mm | 2540 |
| Overall width | mm | 1300 |
| Overall height | mm | 1460 |

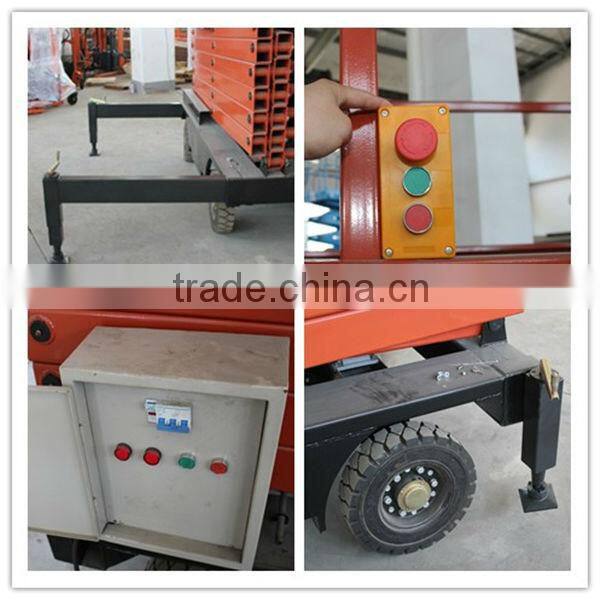

Product details
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.
Our nearest export port is Shanghai, and Ningbo.We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
Warranty details
SHINTOOL provide the warranty period to lifting Machinery/scissor lift, for a period of 1 year after the
date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be
defective in material or workmanship when under proper operation during warranty period;
After the period of warranty, the customer can send the required parts no.s which shows on the parts book, SHINTOOL will send quotation for the new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
