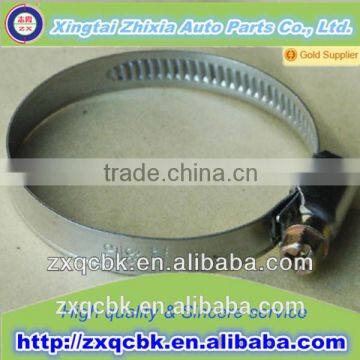

China manufacturer for auto hose clamps with a good price

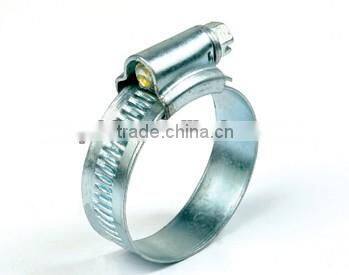

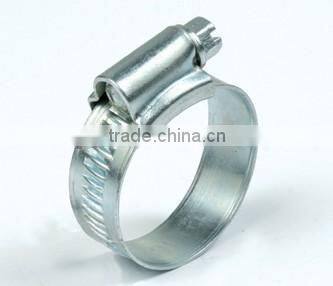

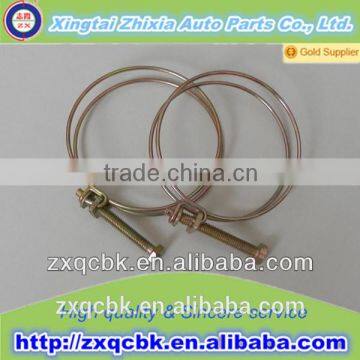

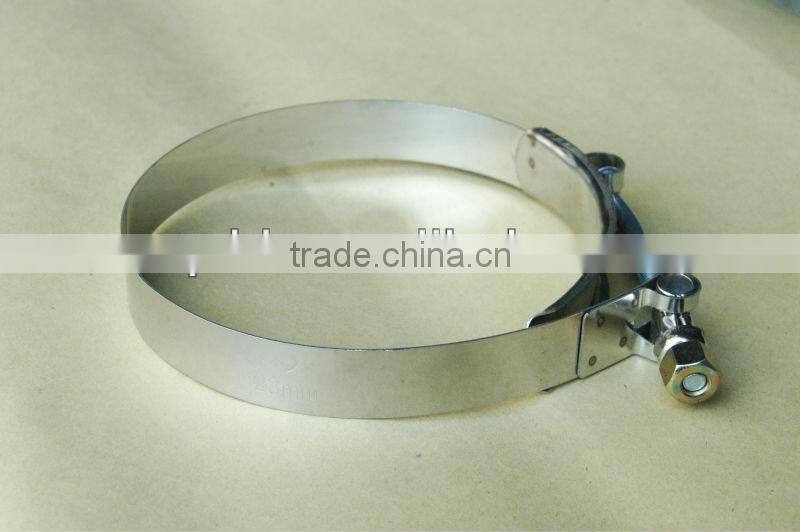

Germany type hose clamps, American type hose clamps, British type hose clamps, high strength hose clamps, double wire hose clamps, all sizes

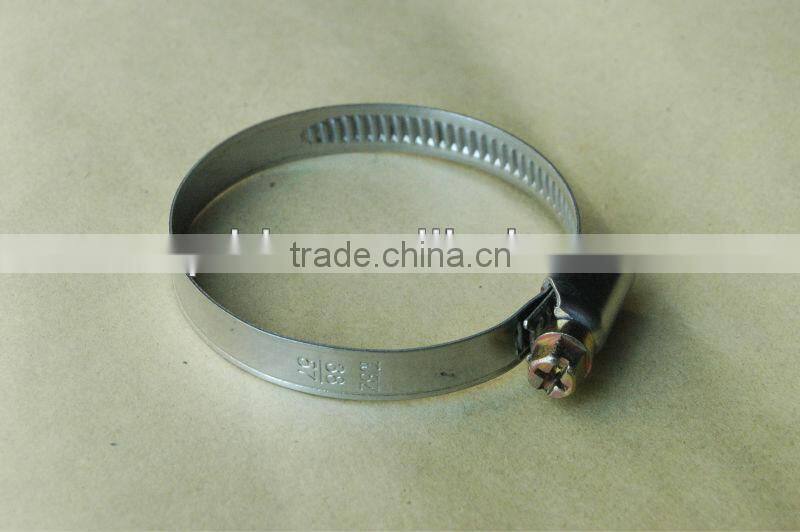

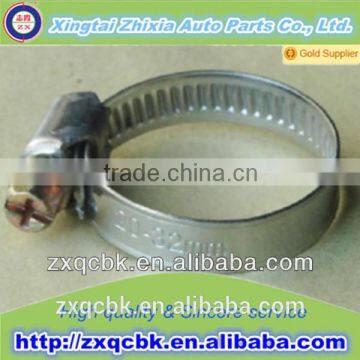

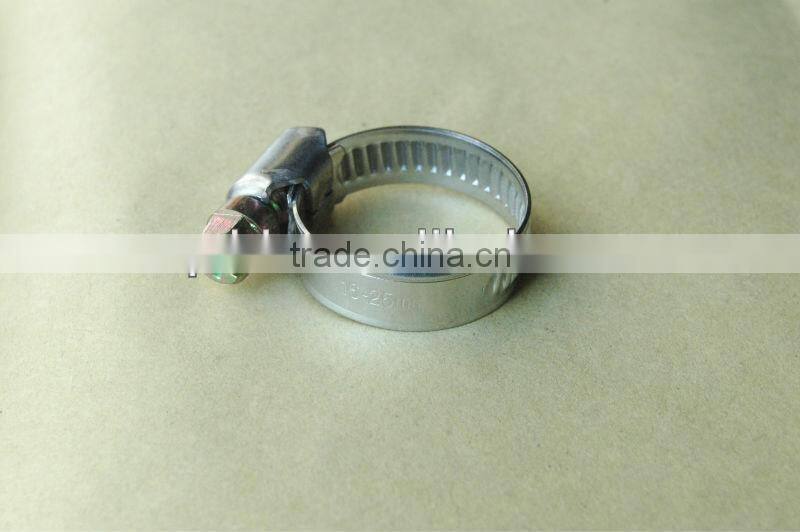

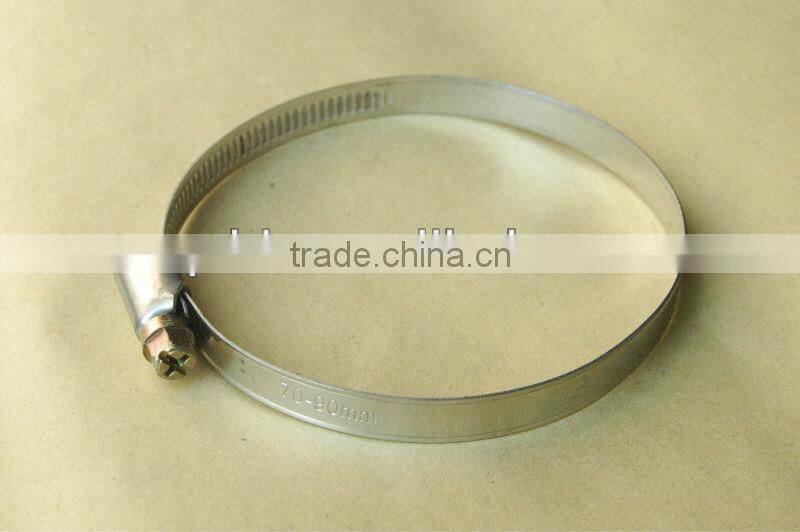

Germany type hose clamps
Specifications
1.Material:W1,W2,W4,
2.Size:Bandwidth 140-160 mm
3.specialized since 1996
4certificate:AISI
Material | |||||
W1 Band, housing& screw with all zinc plated | |||||
W2 Band, housing with all stainless steel201(301),zinc-plated screw | |||||
W4 Band ,housing &screw with all stainless steel 201(301) | |||||
Size | Pcs/bag | Pcs/carton | Carton size | ||
10-22 | 100 | 1000 | 38*27*20 | ||
11-25 | 100 | 1000 | 38*27*24 | ||
14-27 | 100 | 1000 | 38*27*24 | ||
17-32 | 100 | 1000 | 38*27*29 | ||
21-38 | 50 | 500 | 39*31*31 | ||
21-44 | 50 | 500 | 38*27*24 | ||
27-51 | 50 | 500 | 38*27*29 | ||
33-57 | 50 | 500 | 38*27*34 | ||
40-63 | 20 | 500 | 39*31*31 | ||
46-70 | 20 | 500 | 40*37*30 | ||
52-76 | 20 | 500 | 40*37*30 | ||
59-82 | 20 | 500 | 40*37*30 | ||
65-89 | 20 | 500 | 38*27*34 | ||
72-95 | 20 | 500 | 39*31*31 | ||
78-101 | 20 | 250 | 38*27*34 | ||
84-108 | 20 | 250 | 38*27*34 | ||
91-114 | 25 | 250 | 39*31*31 | ||
105-127 | 25 | 250 | 39*31*31 | ||
118-140 | 25 | 250 | 40*37*27 | ||
130-152 | 25 | 250 | 40*37*30 | ||
143-165 | 25 | 250 | 40*37*35 | ||
155-178 | 25 | 250 | 49*40*31 | ||
| Free torque Nm | Breaking Torque Nm | |||
W1 | 0.8Nm | 5Nm | |||
W2 | 0.6Nm | 8Nm | |||
W4 | 0.6Nm | 8Nm | |||

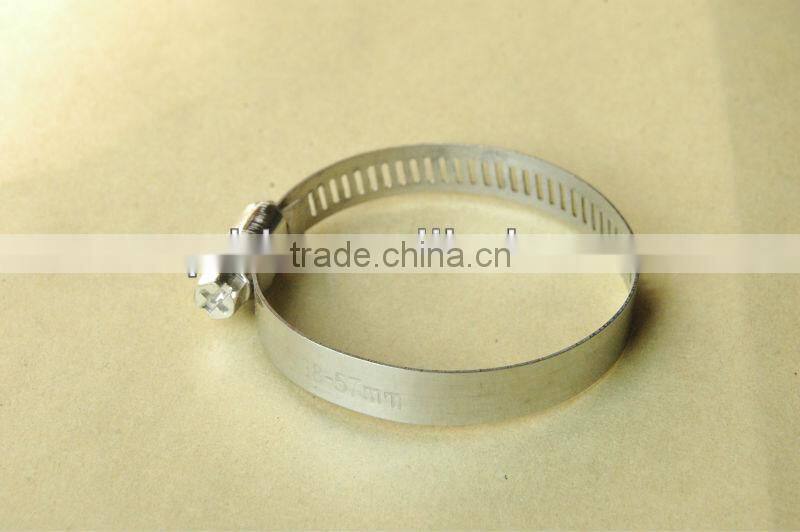

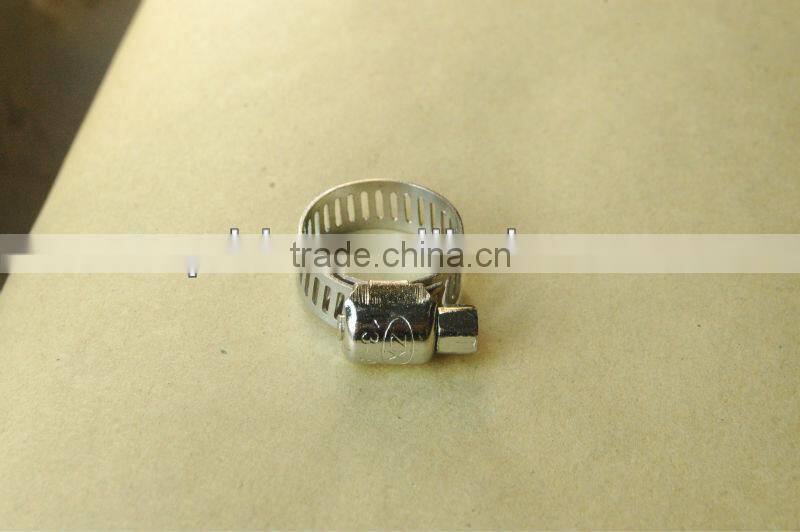

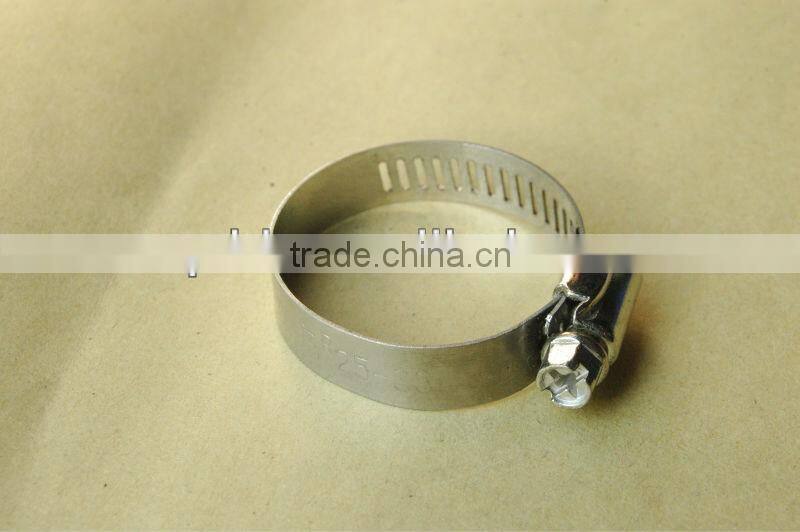

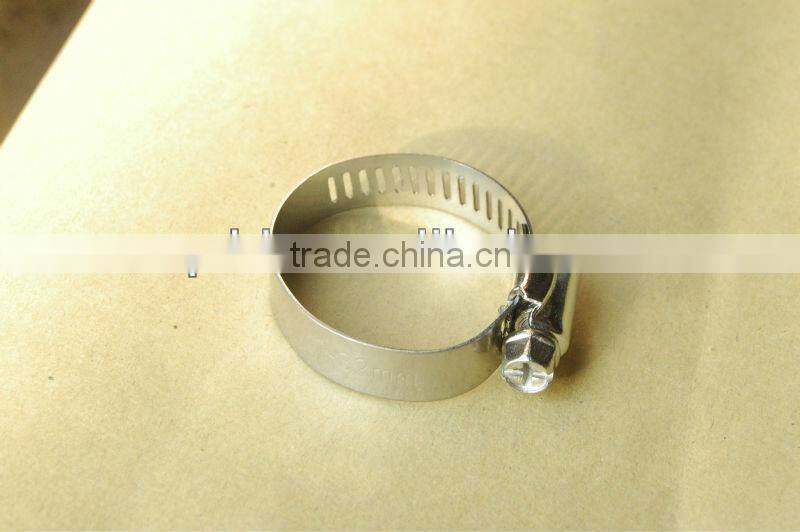

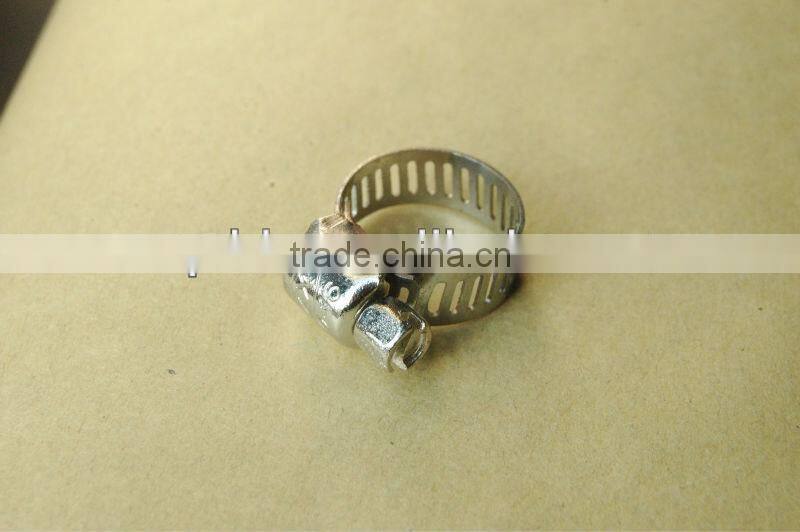

American type hose clamps
| Semi-stainless steel Model | MOQ | Stainlss Steel | MOQ | High-strength | MOQ |
| Pieces | Model | Pieces | Model | Pieces | |
| 8*12H | 10,000 | 25*38 | 10,000 | 51 | 5000 |
| 8*12C | 10,000 | 32*44 | 10,000 | 57 | 5000 |
| 10*16H | 10,000 | 44*64 | 10,000 | 60 | 5000 |
| 10*16C | 10,000 | 70*89 | 10,000 | 64 | 5000 |
| 13*19H | 10,000 | 70 | 5000 | ||
| 13*19C | 10,000 | 76 | 5000 | ||
| 16*25H | 10,000 | 80 | 5000 | ||
| 16*25C | 10,000 | 83 | 5000 | ||
| 19*29H | 10,000 | 87 | 5000 | ||
| 19*29C | 10,000 | 90 | 5000 | ||
| 22*32H | 10,000 | 92 | 5000 | ||
| 22*32C | 10,000 | 96 | 5000 | ||
| 25*38H | 20,000 | 100 | 5000 | ||
| 25*38C | 20,000 | 103 | 5000 | ||
| 32*44H | 20,000 | 105 | 5000 | ||
| 32*44C | 20,000 | 109 | 5000 | ||
| 35*51 | 20,000 | 115 | 5000 | ||
| 38*57 | 20,000 | 120 | 5000 | ||
| 44*64 | 20,000 | 123 | 5000 | ||
| 51*70 | 10,000 | 130 | 5000 | ||
| 64*76 | 10,000 | 135 | 5000 | ||
| 70*89 | 10,000 | ||||
| 76*92 | 10,000 | ||||
| 80*100 | 10,000 | ||||
| 100*120 | 10,000 | ||||
| 110*130 | 10,000 | ||||
| 140*160 | 10,000 |
| Model | MOQ | |||
| 10*16mm | 10,000 | |||
| 13*19mm | 10,000 | |||
| 16*25mm | 10,000 | |||
| 19*29mm | 10,000 | |||
| 22*32mm | 10,000 | |||
| 25*38mm | 10,000 | |||
| 32*45mm | 10,000 | |||
| 35*51mm | 10,000 | |||
| 38*57mm | 10,000 | |||
| 44*64mm | 10,000 | |||
| 51*70mm | 10,000 | |||
| 74*80mm | 10,000 | |||
