Precision Modular Vise
- qingdao xingang
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | zhongyi | |
| Model Number | GT100-300 |
Product Description

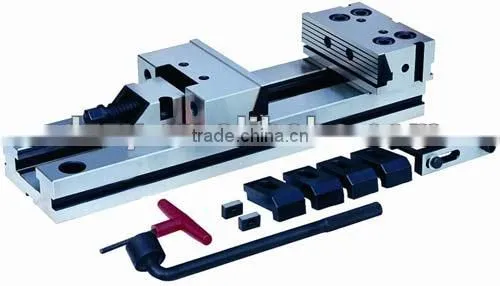

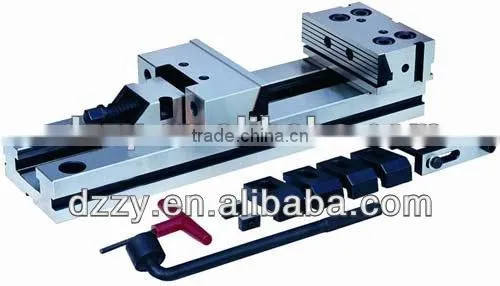

precision modular vises:
1)Made of high quality alloy steel.
2)Squareness and parallelism are within 0.005mm.
3)The hardness of working surface is HRC58-62 and precision ground to a mirror finish.
4)Jaws can be with V groove.
5)Clamping blocks, keys and spanners attached.
6)It have interchangeable base,fix or move jawsit is quickly.It is quickly to clamp workpiece.And easily for operation.
7)It is widely used on machining center and other precision machine.Ideal for CNC grinding.
The specification is given below:
| model no. | B(mm) | H(mm) | Smax(mm) | L(mm) | Max clamping force(Kg) |
| GT100-I | 100 | 30 | 100 | 270 | 3000 |
| GT125-I | 125 | 40 | 150 | 345 | 3000 |
| GT150A-I | 150 | 50 | 200 | 420 | 5000 |
| GT150B-I | 150 | 50 | 300 | 520 | 5000 |
| GT175A-I | 175 | 60 | 200 | 455 | 6000 |
| GT175B-I | 175 | 60 | 300 | 555 | 6000 |
| GT175C-I | 175 | 60 | 400 | 655 | 6000 |
| GT175D-I | 175 | 60 | 500 | 755 | 6000 |
| GT175E-I | 175 | 60 | 600 | 855 | 6000 |
| GT200A-I | 200 | 65 | 200 | 495 | 10000 |
| GT200B-I | 200 | 65 | 300 | 595 | 10000 |
| GT200C-I | 200 | 65 | 400 | 695 | 10000 |
| GT200D-I | 200 | 65 | 500 | 795 | 10000 |
| GT200E-I | 200 | 65 | 600 | 895 | 10000 |
| GT300A-I | 300 | 80 | 200 | 535 | 12000 |
| GT300B-I | 300 | 80 | 300 | 635 | 12000 |
| GT300C-I | 300 | 80 | 400 | 735 | 12000 |
| GT300D-I | 300 | 80 | 500 | 835 | 12000 |
| GT300E-I | 300 | 80 | 600 | 935 | 12000 |
| GT300F-I | 300 | 80 | 700 | 1035 | 12000 |
| GT300G-I | 300 | 80 | 800 | 1135 | 12000 |
packaging way:Inner packing is by wooden box.The outer packing is by cartons.Pallet is available upon the customer's request.
Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Our Services and reputation: we have been the supplier at Alibaba for 9(nine) years.
We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
