Help CenterMorse Taper With Drawbar Made in China
Related Products
Specifications
BT morse taper with drawbar:1.material: 20cr MnTi
2..high quanlity
3.high precision
4.hardness:54-62HRC
Bt morse taper with drawbar:
|
Model No. BTXMT.NO.-L1 |
L | D | D1 | FIGHRE |
| BT40XMTB1-45 | 110.4 | 25 | 44.45 | 1 |
| BT40XMTB2-60 | 125.4 | 32 | 1 | |
| BT40XMTB3-75 | 140.4 | 40 | 2 | |
| BT40XMTB3-90 | 155.4 | 40 | 2 | |
| BT40XMTB4-95 | 160.4 | 48 | 3 | |
| BT40XMTB4-100 | 165.4 | 48 | 2 | |
| BT50XMTB1-45 | 146.8 | 25 | 69.85 | 1 |
| BT50XMTB2-45 | 146.8 | 32 | 1 | |
| BT50XMTB2-60 | 161.8 | 32 | 1 | |
| BT50XMTB3-60 | 161.8 | 40 | 1 | |
| BT50XMTB3-75 | 176.8 | 40 | 1 | |
| BT50XMTB4-80 | 181.8 | 48 | 3 | |
| BT50XMTB4-100 | 201.8 | 48 | 2 | |
| BT50XMTB5-100 | 201.8 | 63 | 3 | |
| BT50XMTB5-120 | 221.8 | 63 | 2 |

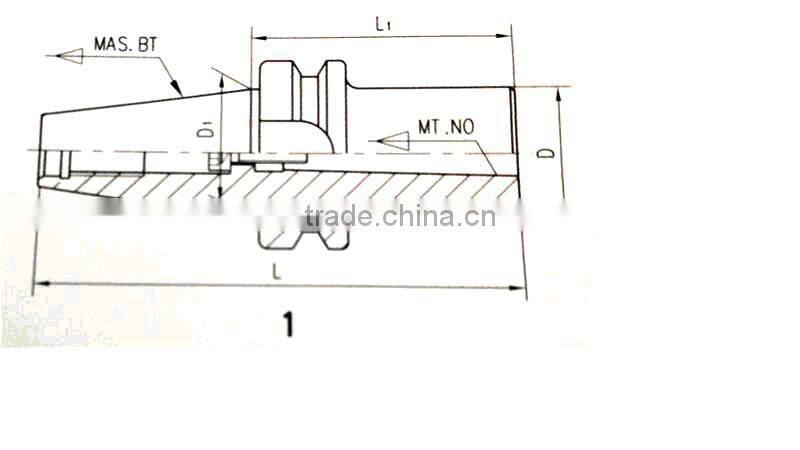

1. See figure 1, when the arbor being used, it is necessary to fix inner hex screw.

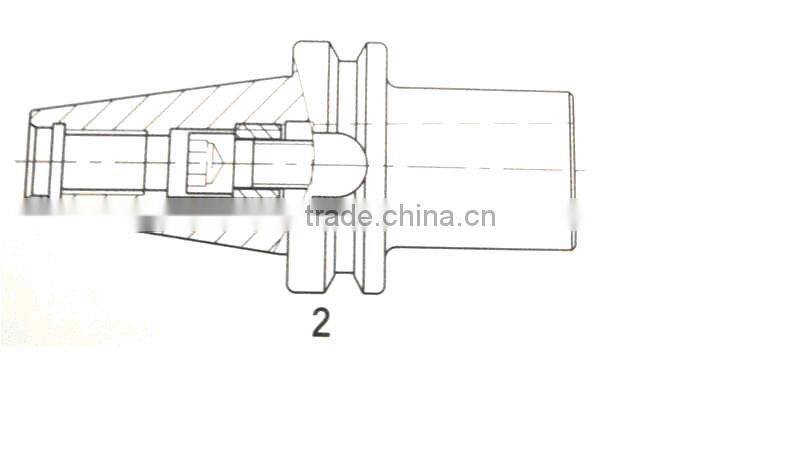

2. See figure 2, when the arbor being used, it is necessary to fix standard knob, please note when order it.

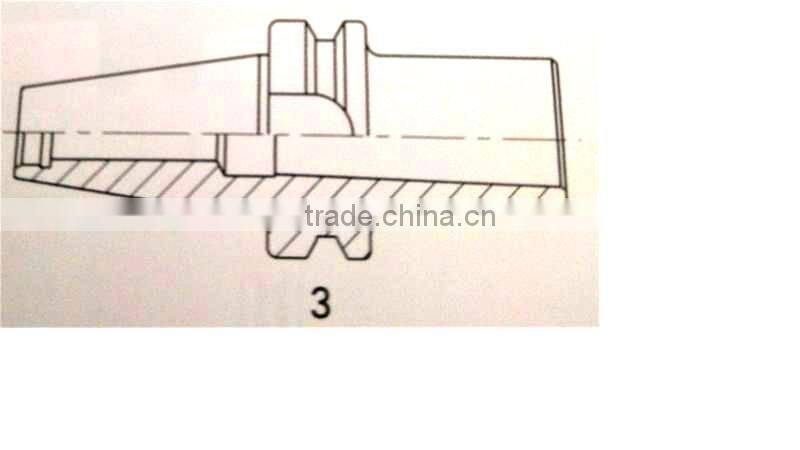

3. See figure 3, when the arbor being used, it is necessary to fix extension knob, please note when order it.
4. When order please indicate the hilt the concrete form. If needs in the center cold and the flange water leakage hilt, please mark AD/B. For example BT40(AD/B) × MTB3-75.
5. According to needs to be possible to provide the balanced hilt, the standard precision is G6.3/12000rpm, the precise precision is G2.5/20000rpm.
Our Service :
1.high qulity and competitive price
2.strict inspection on every goods
3.in time response
4.keep promise and keep responsible
Company Information
Our company Dezhou Zhongyi Industry and Commerce Co., Ltd. is a leading supplier of machinery tool accessories in China.
Our products include: elastic collets, drill chucks, machine vises, tapping collets, ordinary and computer controlled tool holders and adapters. We can also supply live centers, reduction sleeves, end mill cutter sharpeners, indexing heads, quick change tool posts, precision vises, rotary table series and tool sharpeners, cutting tools.
Our products are sold to clients in more than 10 countries and regions, such as the USA, the UK, Germany, France, Canada, South Africa, Australia and Southeast Asia.
