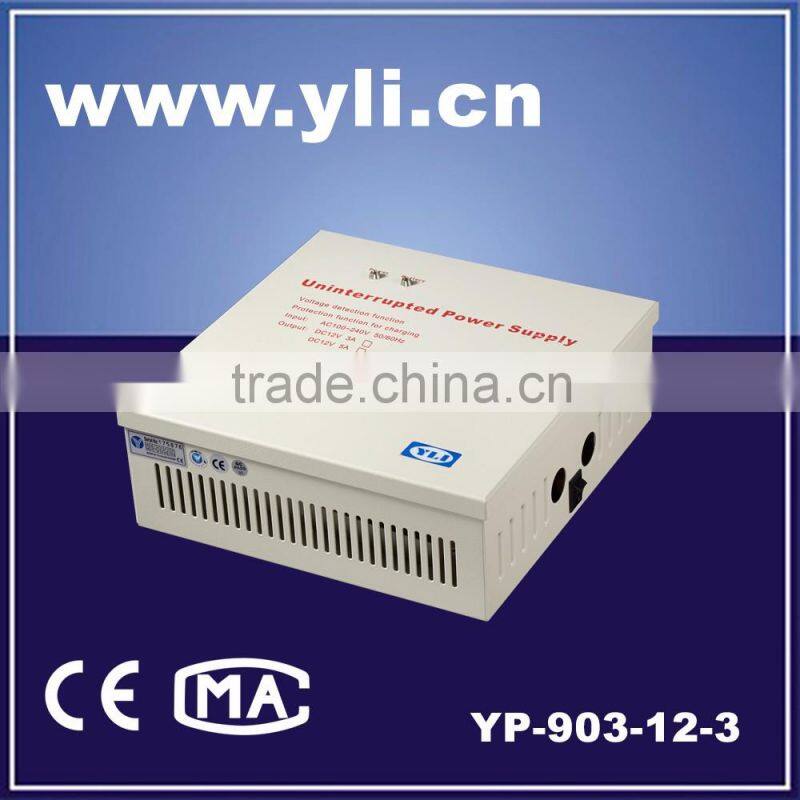

Help CenterUninterrupted Power Supply Controller With the Application of Delay Control
Related Products
-
Access Control Switch Power SupplyNegotiableMOQ: 50 Pieces -
Switch Power Supply With Indicator LightNegotiableMOQ: 50 Pieces
-
Access Control Fire Door ControllerNegotiableMOQ: 50 Pieces
-
Access Control Emergency Door ControllerNegotiableMOQ: 50 Pieces
-
Emergency Door Controller With Feedback SignalNegotiableMOQ: 50 Pieces
| Product Parameter | Parameter Description |

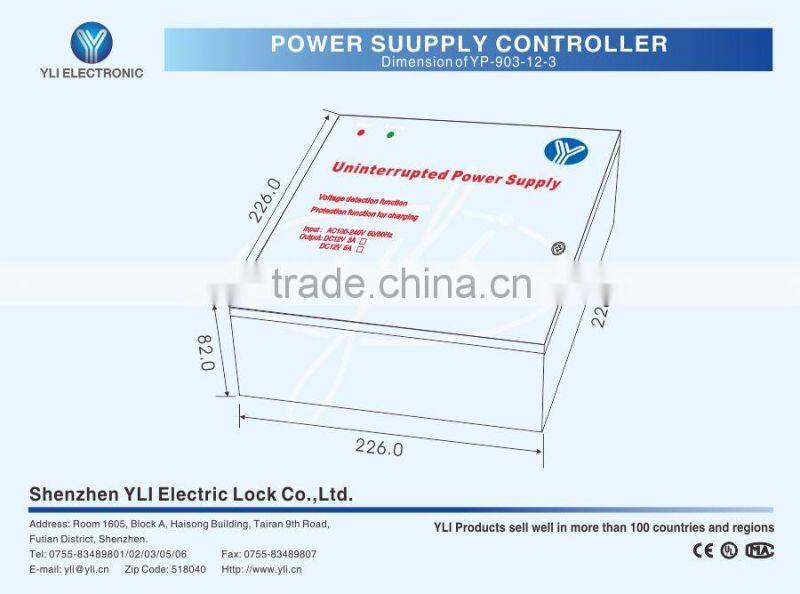

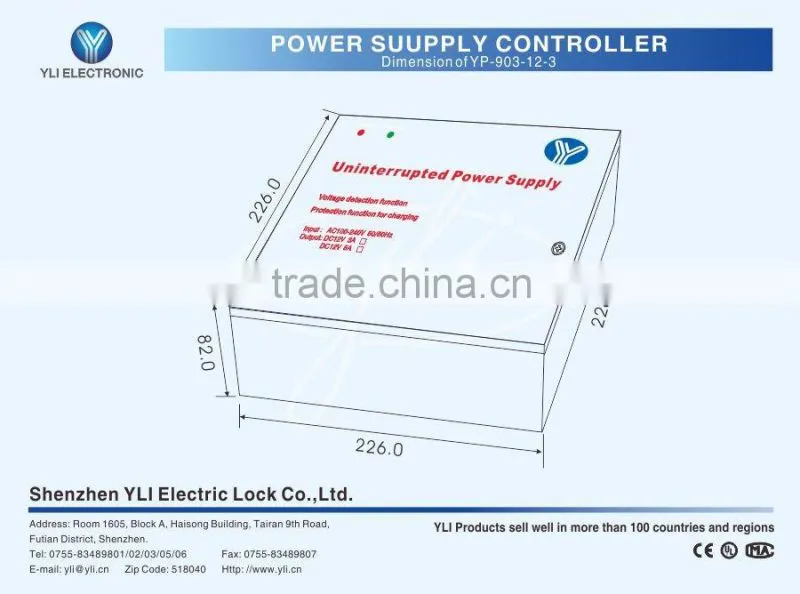

| Box Size | 226Lx226Wx82H(mm) |
| Input Voltage | AC100 -240V, 50/60Hz |
| Output Voltage | DC12V |
| Unlock time | 0-30seconds |
| Battery type | Lead-acid battery 12V/7AH |
| Output current | 3A |
| Weight | 1.8kg |
It is fitted with NO and NC output, controlling all types of electric lock.
The application of delay control circuit can ensure that unlocking time between 0-30 seconds.
UPS power is provided to automatically provide power in case of power failure.
Power will be automatically cut off when voltage becomes too low so as to protect the battery.
Door open button is applied to unlock the electric lock directly.
Red light is the power indicator, which lights up when inputting 220V. Green light is the battery
indicator. It goes out when the battery is being charged or dead, and lights up when the battery is
fully charged or being used.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products,
we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company.
Meanwhile, we reserved all the rights of law for any tangle.
..
...
...
...
