Help CenterPiezoelectric Exit Button Special Design for Top Grade Office
Related Products
-
Infrared Sensor Exit Button With NO/NC/COM Output ContactNegotiableMOQ: 50 Pieces -
Waterproof Piezoelectric Exit ButtonNegotiableMOQ: 50 Pieces
-
Piezoelectric Exit Button With NO/COM Output ContactNegotiableMOQ: 50 Pieces
-
Piezoelectric Exit Button Suitable for All Kinds of LockNegotiableMOQ: 50 Pieces
-
Piezoelectric Exit Button With LED(Stainless Steel)NegotiableMOQ: 50 Pieces
| Product Parameter | Parameter Description |

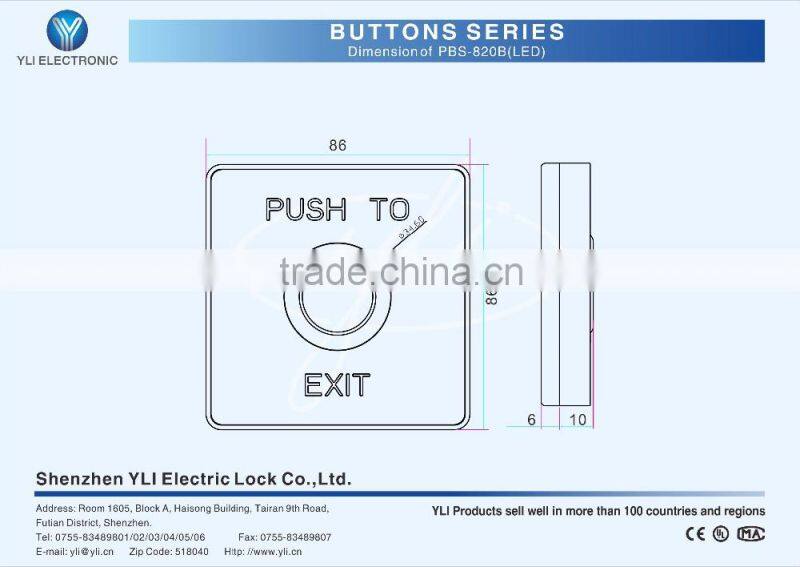

| Dimensions | 86Lx86Wx16H(mm) |
Voltage |
12-24V |
| Current | Standby 20mA,Operation: 60mA |
| Output Contact | NO/COM |
| Current Rating | 1A@30VDC 0.5A@125VDC |
| Waterproof Level | IP-68 |
| LED Status | Red: Standby Green : Operation |
| Wire color | Red:Positive Black:Negative White:NO/COM Blue: SET Terminal for switch mode (Nouse Default, if need self-lock mode, please connect SET Terminal to Negative of Power ) |
| Color | Silver,Golden(order) |
| Weight | 0.1kg |
Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
24K Level Golden Color, Shining Silver Color Optional
Special Design for Top Grade Office , Best Choice for Sophisticated group
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products,
we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company.
Meanwhile, we reserved all the rights of law for any tangle.
..
...
...
...
