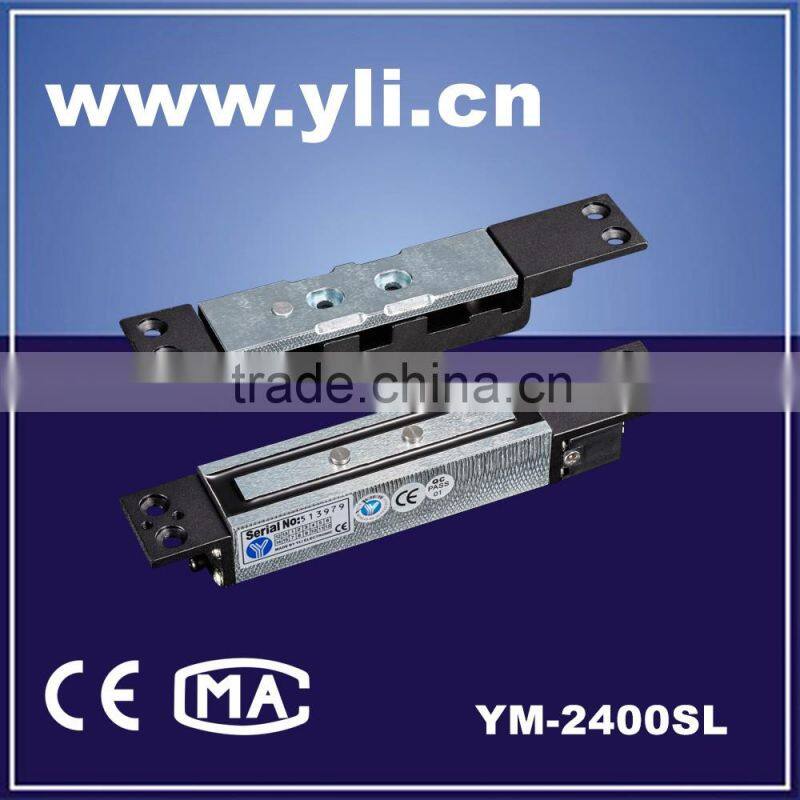

Shear Magnetic Lock
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 182L X 30W X 25D(mm) |
| Armature Plate | 182L X 30W X 23.6D(mm) |
| Power supply | DC 12V (24V need order) |
| Operation Current | 850mA |
| Holding Current | 400mA |
| Delay Time | 0/5/10/15sec. |
| Door status sensor | NO/COM(0.1A@30VDC) |
| Lock status sensor | NC/NO/COM(0.1A@30VDC) |
| Holding Force | 2600Lbs(1200kg) |
| Magnetic distance(max.) | 3mm |
| LED | Red shows locked; Green shows unlocked |
| Weight | 1.2kg |
Advantage
For double swing doors
Suitable for 90 or 180 degrees double swing doors
Relock function
When the lock is unlocked, it will lock the door automatically according to the program.
Smart circuit design
With time delay function, door signal output and lock signal output
All-metal lock body
With integral profiles and precise work, this lock is stronger and more durable.
Ultra durable electromagnetic design
Professional and durable electromagnetic design with over 500,000 times qualified test.
One-piece and small size
One-piece design and small size, which will be easy to install to any kinds of door frame
With both magnetic and latch design
By using electromagnetic force and latch design, the holding force of this shearing lock can achieve up to 1200kg
Armature plate with guide groove
With guide grooves at both sides of the armature plate
Door/lock status sensor
A set of NO/COM door signal output contact and a set of NO/NC/COM lock signal output contact

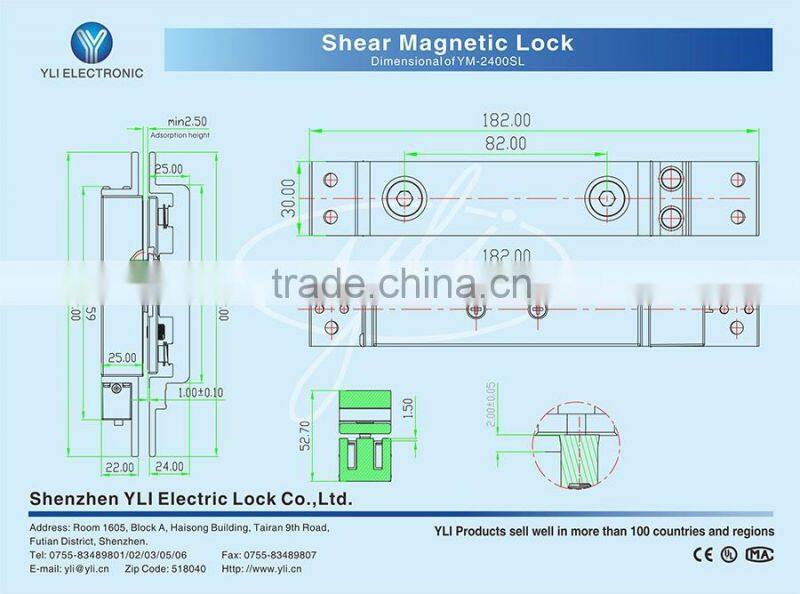

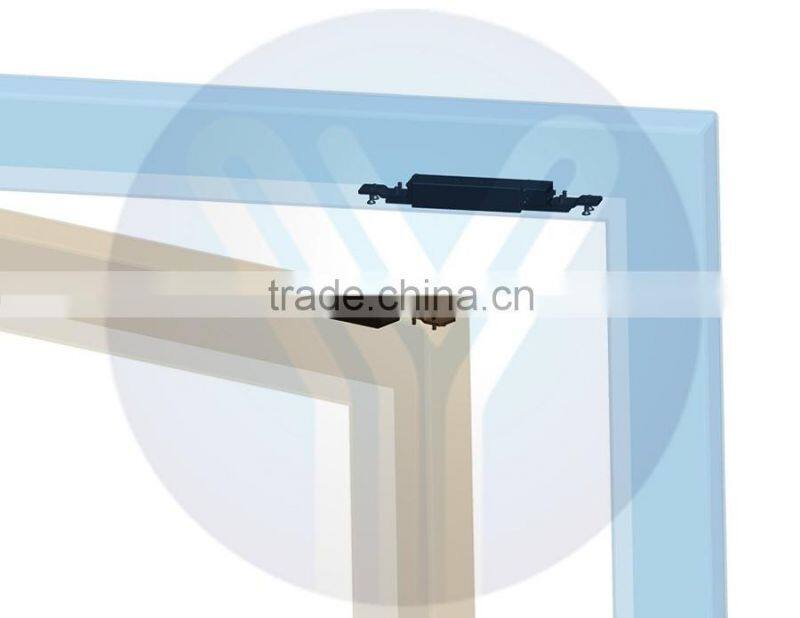

Installation Diagram& Dimension Diagram
Product Picture Show
(Details Please visit our Company Website):
/en/
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
