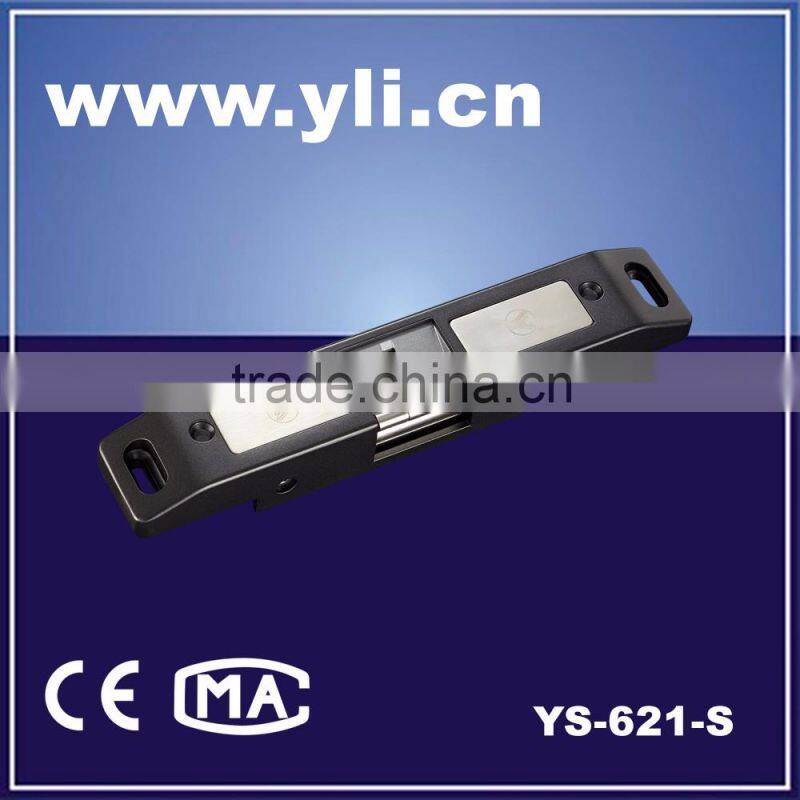

Electric Strike for Push Bar With NO/NC/COM Door SensorNegotiableMOQ: 50 Pieces -
ANSI Standard Heavy Duty Electronic Strike With Signal YS -138 NO/NC-SNegotiableMOQ: 1 Piece
-
Fail Secure American Standard Electric Strike YS -138NONegotiableMOQ: 50 Pieces
-
Fail Safe Long Type American Electronic Strike W/signal YS -138LNC-SNegotiableMOQ: 50 Pieces
-
Fail Safe Long Type American Electric Door Strike YS -138LNCNegotiableMOQ: 50 Pieces
| Product Parameter | Parameter Description |

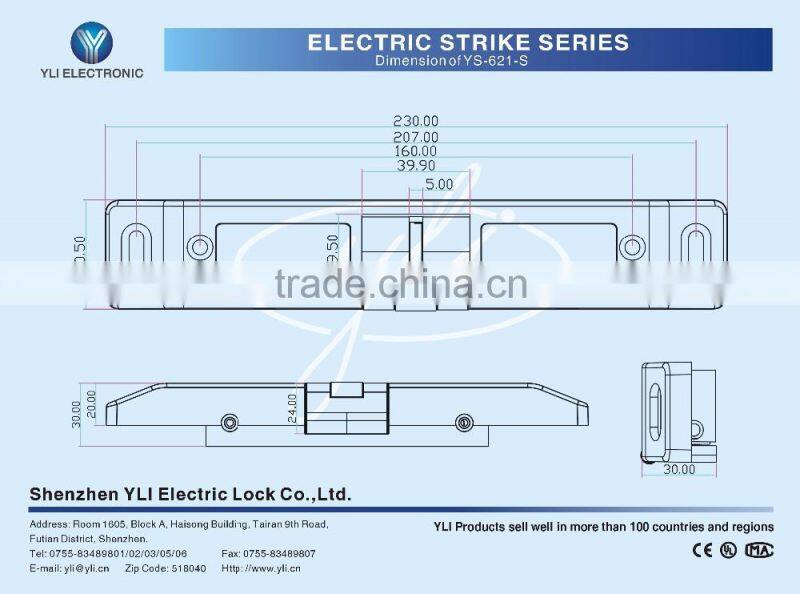

| Lock Size | 230Lx40Wx30H(mm) |
| lock tongue structure | 304 Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12V or DC24V |
| Current | 12V/220mA or 24V/110mA |
| Signal Output | Lock Status Output NO/NC/COM |
| special design | applies to all brands of fire push rod lock |
| Suitable For | supporting rod lock fire door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | High temperature paint |
| Lock tongue | Surface by coating nickel |
| The door open | 90 degrees |
| Weight | 0.75kg |
Enhanced stress structure design
1000000 solenoid valve special design
Power to open the door or door adjustable power supply
12/24VDC/VAC
| Packing Quantity(PCS/CTN) | 12 |
| Packing Size(L*W*H)(cm) | 54.3*13.5*19.3 |
| Gross Weight(KG) | 24.6 |
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
YLI Company retains right to modify the specification of products, and for parameters amendment of products,
we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company.
Meanwhile, we reserved all the rights of law for any tangle.
..
...
...
...
