YLI YS-130NO Fail Secure Standard Electric Strike Lock CE
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 150Lx39.5Wx34H(mm) |
| lt structure | Stainless Steel |
| Holding Stength | 500kg |
| Voltage | DC12V(Need Order DC24V) |
| Current | 200mA(YS-130NO); 200mA(YS-130NC) |
| Feature | Fail Secure(YS-130NO) ;Fail Safe(YS-130NC) |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Bolt Housing | Stainless steel,Draw the Polishing of silk |
| Function | Built-out MOV |
| Optional Accessories | YS-305 YS-306 |
| Weight | 0.4kg |
Advantage
Holding 500kg .
Aluminum, Stainless Steel Bolt.
Testing to 1000000 cycles.
High-Temperature Painted,Duable and Beatiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.
Installation Diagram

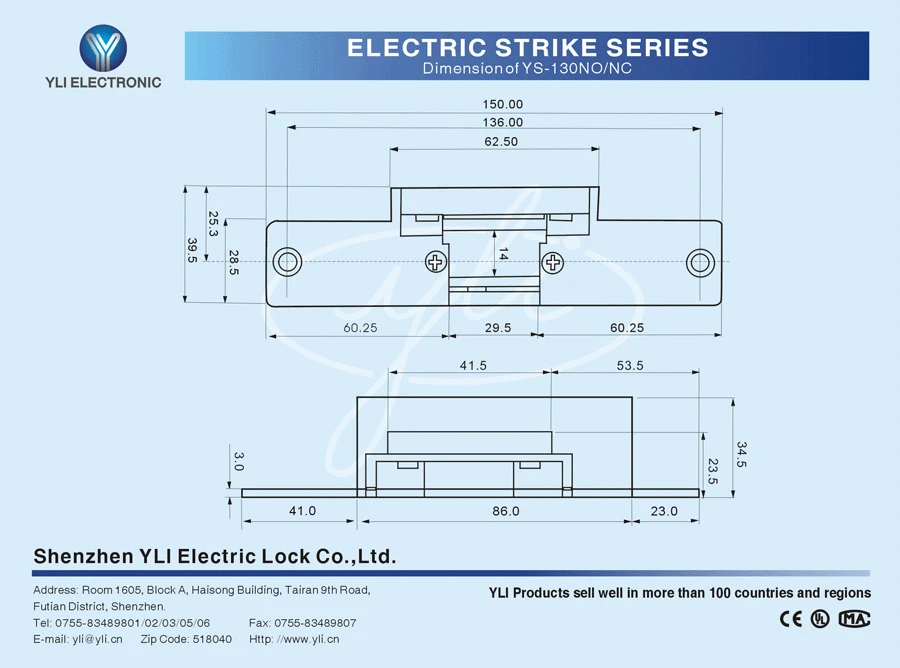

Dimension Diagram
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
| Packing Quantity(PCS/CTN) | 60 |
| Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
| Gross Weight(KG) | 23.4 |
