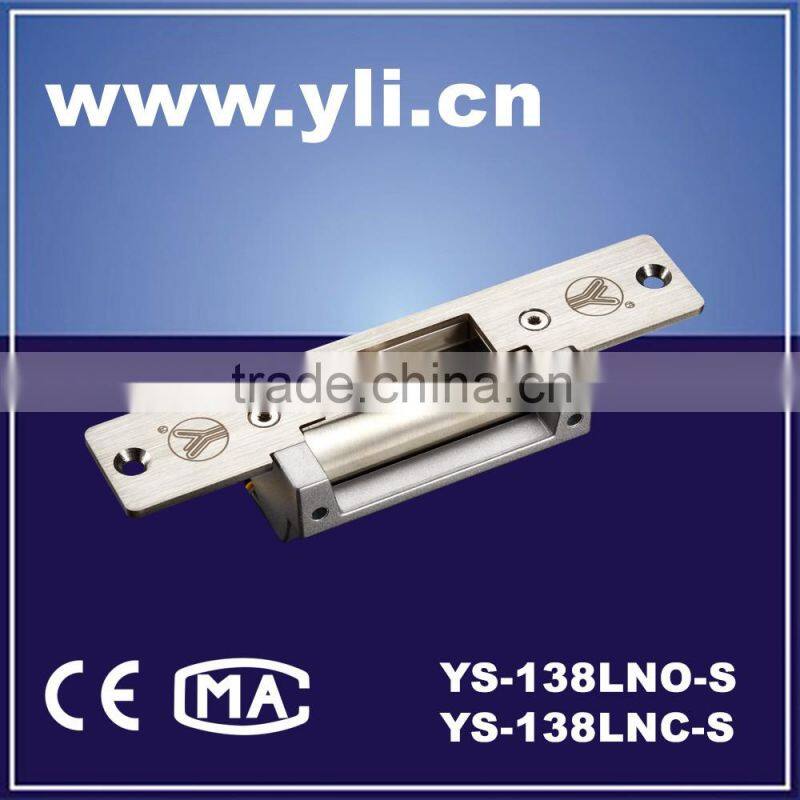

Fail secure long type american electric strike w/signal YS-138LNO-S
Product Parameter
| Product Parameter | Parameter Description |
| Lock Size | 165Lx43.5Wx32.5H(mm) |
| Strike Structure | Stainless Steel |
| Holding Force | 1000kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 220mA |
| Feature | Fail Secure(YS-138LNO-S); Fail Safe(YS-138LNC-S) |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Signal Output | Door status Output,NO/NC/COM |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10~+55℃(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Function | Built-out MOV |
| Optional Accessories | YS-305,YS-306 |
| Weight | 0.4kg |
| Patent No. | 201320470904.1 |
Advantage
Holding 1000kg.
Special design,easy to adjust the distance of the Lock-tongue.
Designed for Metal Frame drill a hole,then install it directly.
Testing to 1000000 cycles.
High-Temperature Painted,Duable and Beatiful Artical.
CE Certificate by European Union, MACertificate by China Public Security office.
Installation Diagram

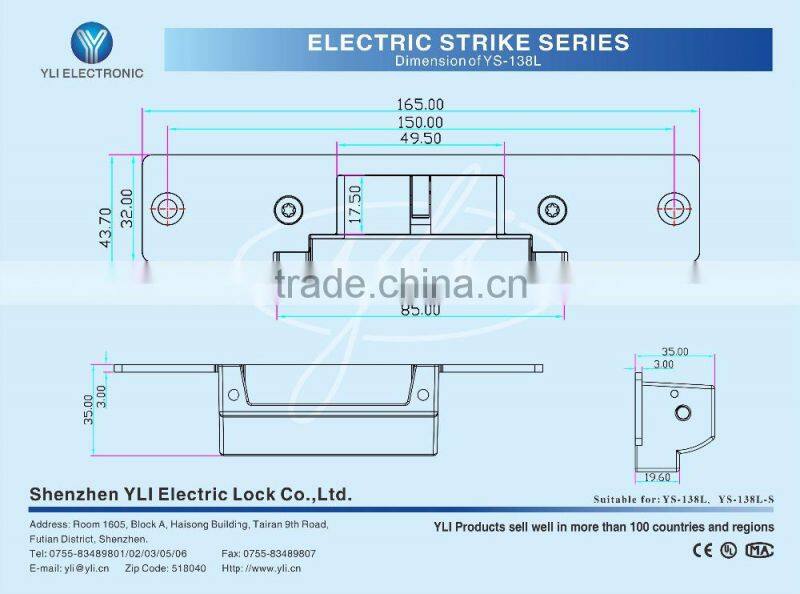

Dimension Diagram
Picture show
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
| Packing Quantity(PCS/CTN) | 30 |
| Packing Size(L*W*H)(cm) | 54.5*20*30.5 |
| Gross Weight(KG) | 12.6 |

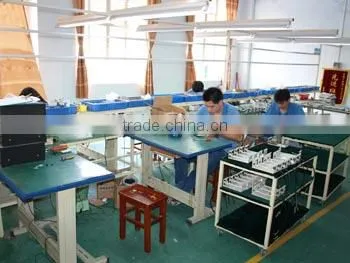

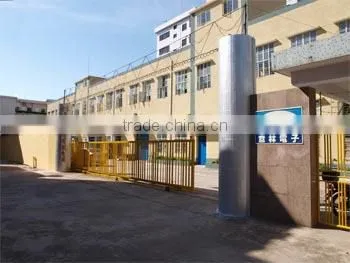

Our Factory
Our growth
...
...
...
⇒1998-2001
Import Access Control(Electric Locks) products as distributor.
⇒2002
YLI ELECTRONIC Company was officially established.
YLI ELECTRONIC Factory was officially established.
YLI ELECTRONIC took a step forwarder in the security market.
⇒2003
Pass CE Certificate(European).
Pass MA Certificate(China).
Shenzhen YLI Electric Locking Equipment Co.,Ltd was officially established, meanwhile start to do oversales business.
The official website was finally up and running.
⇒2004
Established Oversales Business Department.
Obtained lots of technical patents.
YLI has gone into partnership with more than 30 countries in the world.
⇒2005
YLI registered and used International trademark.
⇒2006
YLI purchased production base.
YLI purchased office in Exhibition Time Center Building, Shenzhen.
⇒2007
YLI was conferred excellent company by CPS Magazine & CPS Web.
⇒2008
YLI was conferred excellent company by CPS Magazine & CPS Web.
⇒2009
Shanghai Branch Office was founded.
YLI was conferred excellent company by Government.
YLI purchased new office in Haisong Building, Shenzhen.
YLI was conferred excellent company by CPS Magazine & CPS Web.
⇒2010
Beijing Branch Office was founded.
Southwest Branch Office was founded.
YLI was conferred the most influential and popular brands by China Public Association.
YLI was conferred the creative brands by China Pacific Security Web.
⇒2011
Fujian Branch Office was founded.
To be the governing units of Shenzhen Security Association.
Won Golden Tripod Trophy of CPSE.
⇒2012
Hunan Branch Office was founded.
Magnetic Lock passed UL Certificate(U.S.A).
...
...
...
