Fail safe electric bolt with magnetic feature
Product Parameter
Product Parameter |
Parameter Description |
Fail Safe |
Locked when energized |
Face Plate |
225Lx34WX38H(mm) |
Strike |
100Lx25Wx2.5W(mm) |
Bolt |
16(prolongation)*16(diameter)(mm) |
Voltage |
DC12V+10% |
Start Current |
1000mA |
Standby Current |
90mA |
Solid Bolt |
polishing housing, 2000Kg Holding Force |
Suitable For |
Wooden Door,Glass Door,Metal Door,Fireproof Door |
LED |
Light on indicates locked, light off indicates unlocked |
Autolock Time Delay |
0,3,6,9sec |
Signal Output |
Lock signal:NO/NC/COM |
Surface Temp |
Low Temperature |
Detection Distance |
Within 8mm |
Operating temp |
-10~+55℃(14~131F) |
Operating Humidity |
0~90%(non-condensing) |
Special Designed |
Tested to 500000 cycles |
Material |
304 stainless steel, wire draw finishing |
Weight |
1.0kg |
Advantage
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 Operations.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Autolock Time Delay: 0,3,6,9sec.
Lock signal:NO/NC/COM;Door signal:NO/COM.
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Certificate:CE&MA.
Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
Installation Diagram

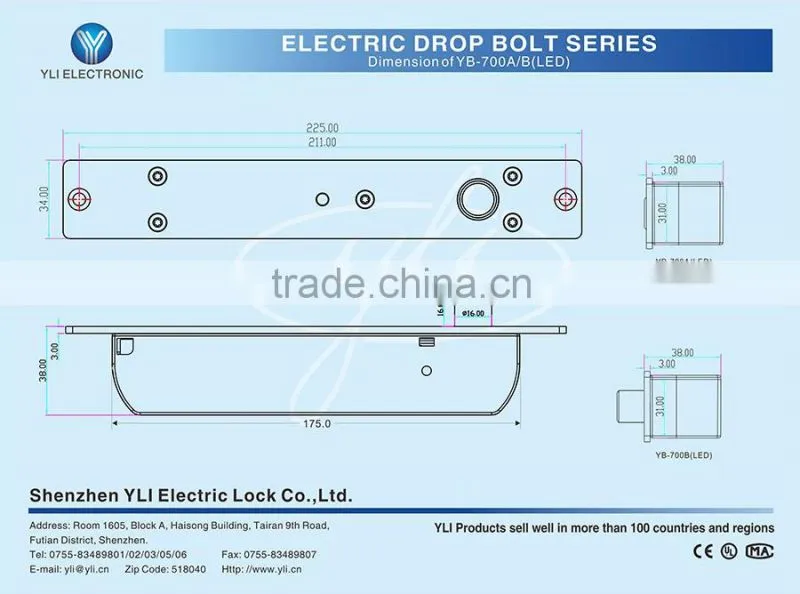

Dimension Diagram

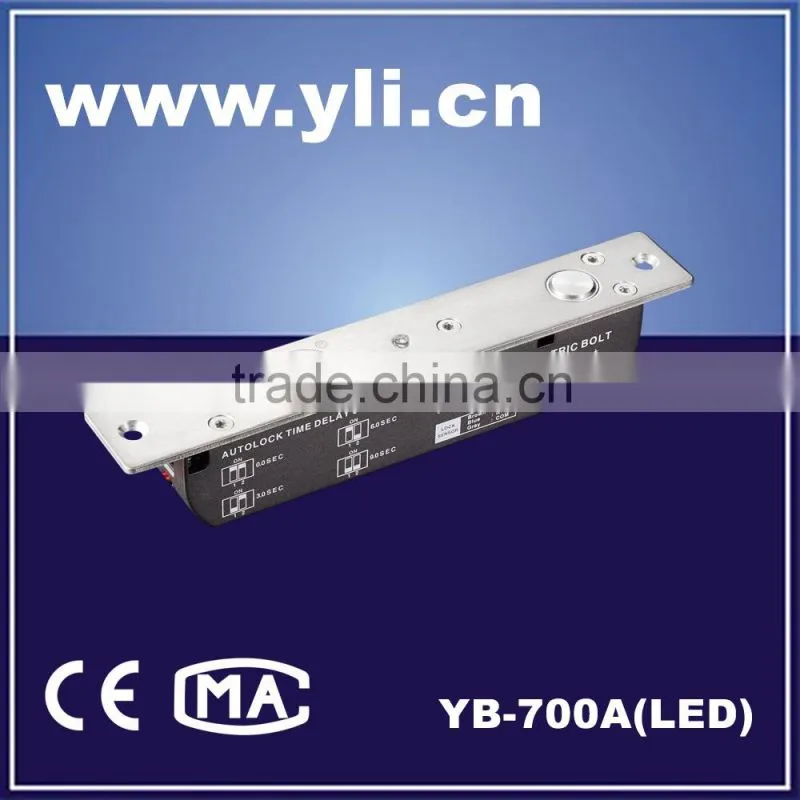

Product Picture Show
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
Packing
Packing Quantity(PCS/CTN) |
30 |
Packing Size(L*W*H)(cm) |
54.5*20*30.5 |
Gross Weight(KG) |
30 |
