Door Release Button (Aluminium) PBK-810C
Product Parameter
Product Parameter |
Parameter Description |
Dimensions |
L86xW86xH20(mm) |
Standard Structure |
Aluminmum Panel, Steel Button |
Current Rating |
3A@36VDC MAX |
Output Contact |
NO/NC/COM |
Mechanical Life |
500000 tests |
Suitable for Door |
Hollow Door |
Operating temp |
10~+55℃(14-131F) |
Operating Humidity |
0-95% (relative humidity) |
Panel Material |
Aluminum panel, Sandblast Finished |
Weight |
0.25kg |
Advantage
Aluminum Panel with Elegant Style.
500000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

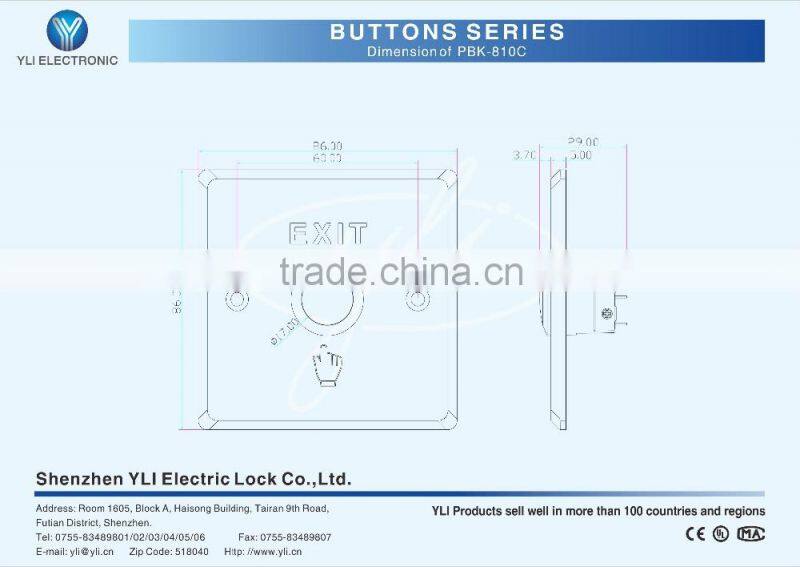

Installation Diagram & Dimension Diagram

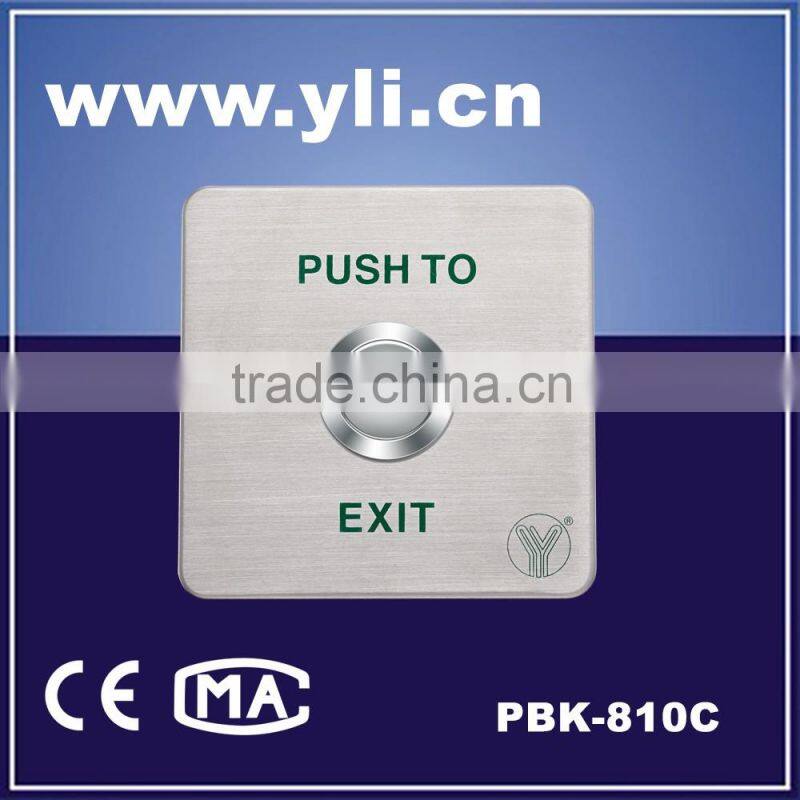

Product Picture Show
Quality Guarranty
Warranty Service will be honored if the damage is not caused by human, YLI Provides 3 years warranty for relative products.
On the contrary, YLI will charge extra if repair. More information, please browse our service center.
Statement
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance.
The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
