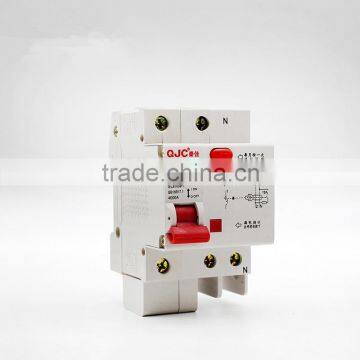

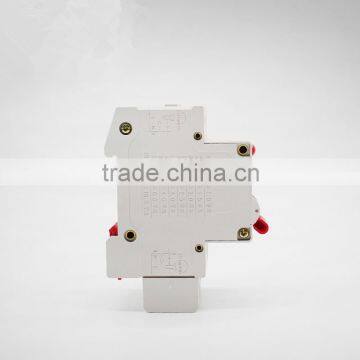

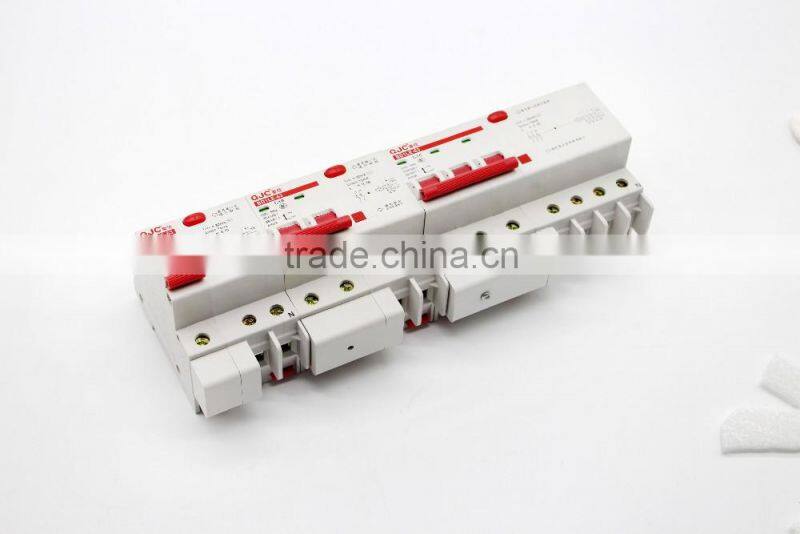

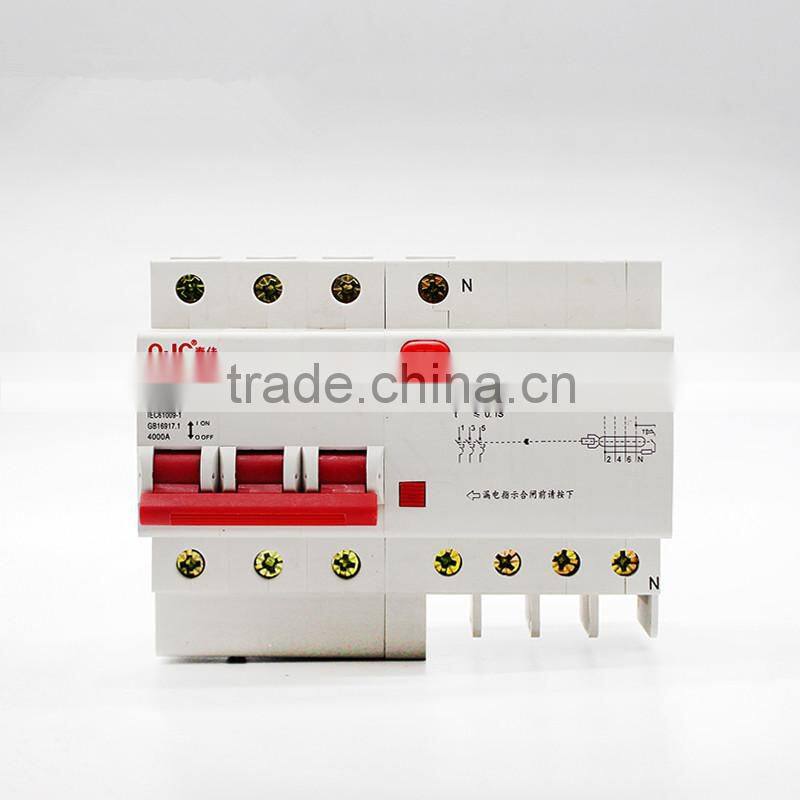

Mini Type 3poles Residual Current Circuit Breaker

Application:

BD1LE-63 Residual current circuit breaker is used in AC50 / 60HZ two poles 230V, four poles 400V,rated current up to 63A, It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipment. The residual current operated circuit breaker can also function as overload and short-circuit protection and unfrequent changeover of line under normal condition.

1. Residual current device with over-current protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 4.5KA
4. Rated current(A): 6, 10,16, 20, 25, 32,40,50,63A
5. Rated leakage operating current(mA): 30, 100, 300mA
6. AC and A types, B-C characteristic
7. Modular Din Rail products 35mm.
