Home > Electrical & Electronics > Breaker & Protector > Circuit Breaker > Over Voltage Protector With Display Screen Voltage Protection Device

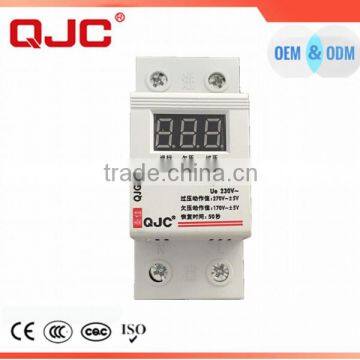

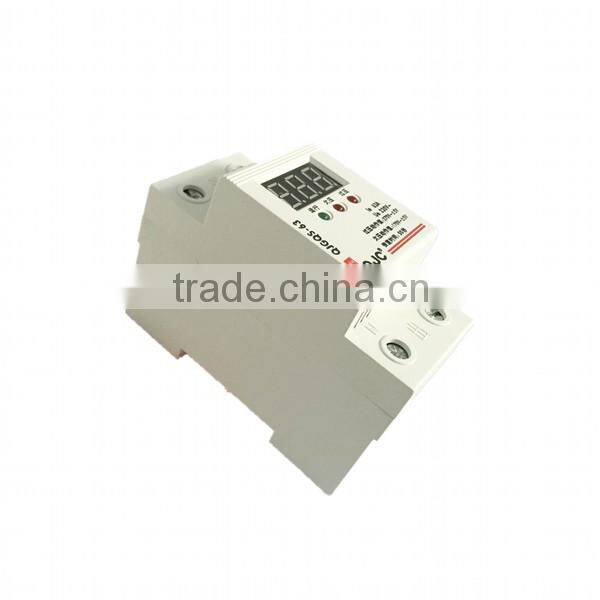

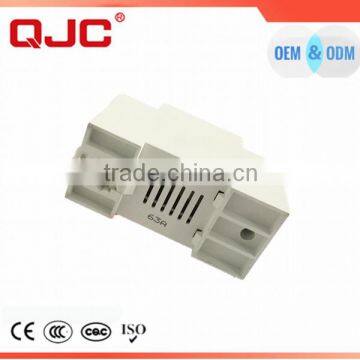

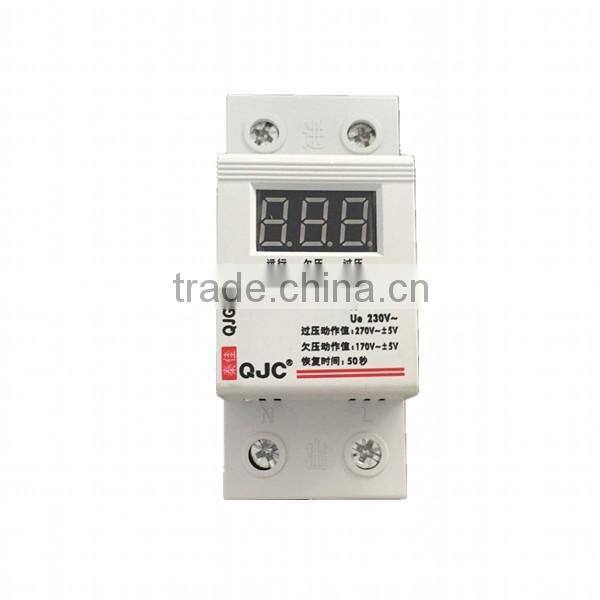

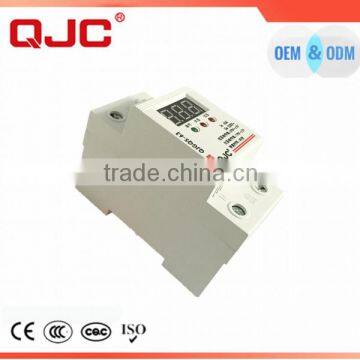

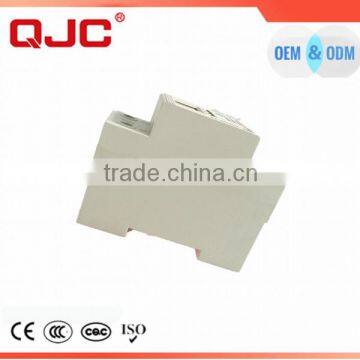

Over Voltage Protector With Display Screen Voltage Protection Device

Qinjia Electric Co., Ltd.

Over Voltage Protector With Display Screen Voltage Protection Device thumbnail-2

Over Voltage Protector With Display Screen Voltage Protection Device thumbnail-3

Over Voltage Protector With Display Screen Voltage Protection Device thumbnail-4

Over Voltage Protector With Display Screen Voltage Protection Device thumbnail-5

Over Voltage Protector With Display Screen Voltage Protection Device photo-1

Over Voltage Protector With Display Screen Voltage Protection Device photo-2

Over Voltage Protector With Display Screen Voltage Protection Device photo-3

Over Voltage Protector With Display Screen Voltage Protection Device photo-4

Over Voltage Protector With Display Screen Voltage Protection Device photo-5

US$ 1 - 10 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

QJC

Model Number:

QJGQS-63

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name QJC

Model Number QJGQS-63

Type Mini

Poles Number 2

Product Description

Application:

QJGQS-63 series Automatic over/under voltage protective device (with display screen)complies with modular design standards,36mm width. It's applied in the circuit of rated current 63A below, AC50/60Hz and rated voltage 230V, and the over-voltage protection setting value is 270±5V, under voltage protection setting value is 170±5V. The function is to protect the over/under voltage of AC distribution system and electric equipment. It is widely used in electricity, posts and telecommunications, traffic, industrial enterprises and etc.

How it works: Once the voltage exceeds or under the limited range of products, it will automatically cut off so as to protect the safely of electrical equipment. The device will re-supply the power automatically after 50 sec.

Feature	Pole No.: 2P,4P
	Over voltage protection:270±5V
	Under voltage protection:170±5V
	Rated Current: 25,32,40,50,63A
	Rated frequency: 50/60HZ
	Circuit breaker width:36mm(2P),116mm(3P),72mm(4P)
	Installation: On symmetrical DIN rail 35mm /Panel Mounting
Packaging	6pcs/inner box, 120pcs/carton(1P)
Sample	Sample fee: FREE for 1 pcs (freight paid by buyers)
	Sample delivery:3 days after the receipt of the freight
Payment	T/T via Credit card,Paypal
Delivery Time	10-30days according to the buying quantity
Shipping Port	Ningbo Port

Detailed Images

Production Process

Packing & Delivery

FAQ

Q1When can I get the price?

We usually quote within 24 hours after we get your inquiry by email.If you are very urgent to get the price,pls contact me through the SKYPE:maggiecai,chy ,will quote timely.

Q2. What's the payment term?

We accept TT,30% deposit before the production and 70% balance agaisnt the copy of B/L.

Q3. How's the delivery time ?

Usually it will take about 25 days for the production,and after the receipt of the deposit.

Q4. How about the package?

Normally are packed in the neutral boxes and cartons, but we can also pack it with customized box according to your requirements.

Q5.How can I get a sample to check the quality?

We will offer you a free sample,but the freight shoud be paid by yourself.

Q6.Would you accept to use our logo ?

Totally YES to do OEM! As long as the quantity is acceptable.
