High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter

High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter thumbnail-1
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter thumbnail-2
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter thumbnail-3
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter thumbnail-4
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter thumbnail-5
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter thumbnail-6
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter photo-1
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter photo-2
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter photo-3
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter photo-4
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter photo-5
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter photo-6
US$ 30 - 90 MOQ: 12 Pieces
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
95%~99.99%
Construction:
Other, V-Bank Filter
Contact Supplier Request Quote Chat Now
Dongguan Zhuowei Purification Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Efficiency 95%~99.99%
Construction Other, V-Bank Filter
Filtration Grade Hepa Filter
Medium Material Fiberglass
Porosity 0.3 um
Place of Origin Guangdong, China
Brand Name Jowell
Model Number FV HV
Dimension(L*W*H) 595*595*292MM
Weight 6KGS
Certification ISO 9001, ISO14001
Warranty one year guarantee
After-sales Service Provided Overseas third-party support available

High Capacity Compact  Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter



High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter

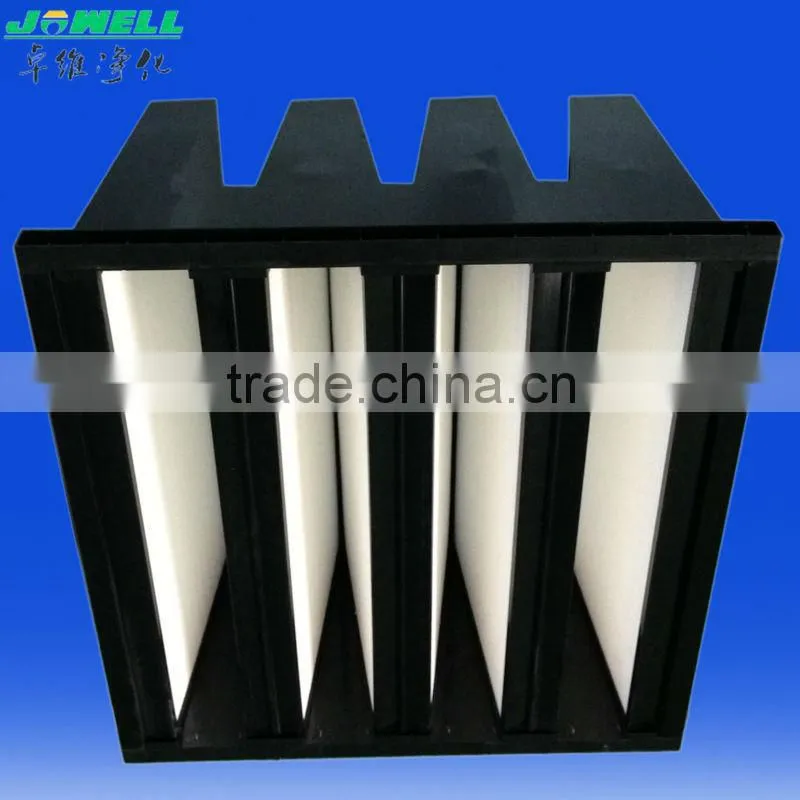

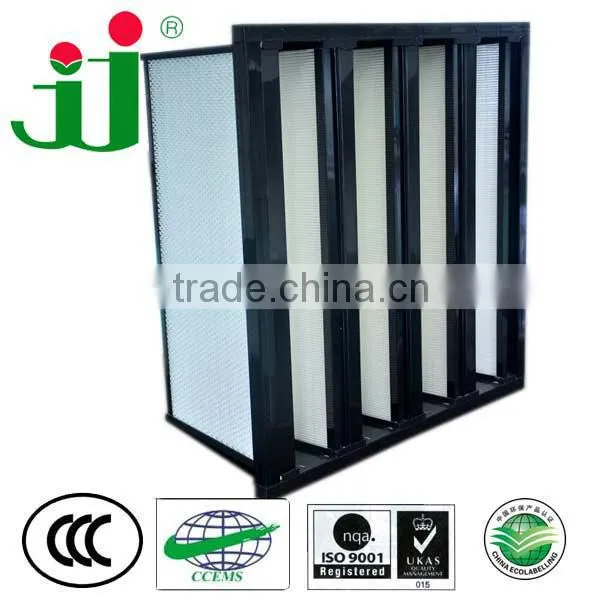

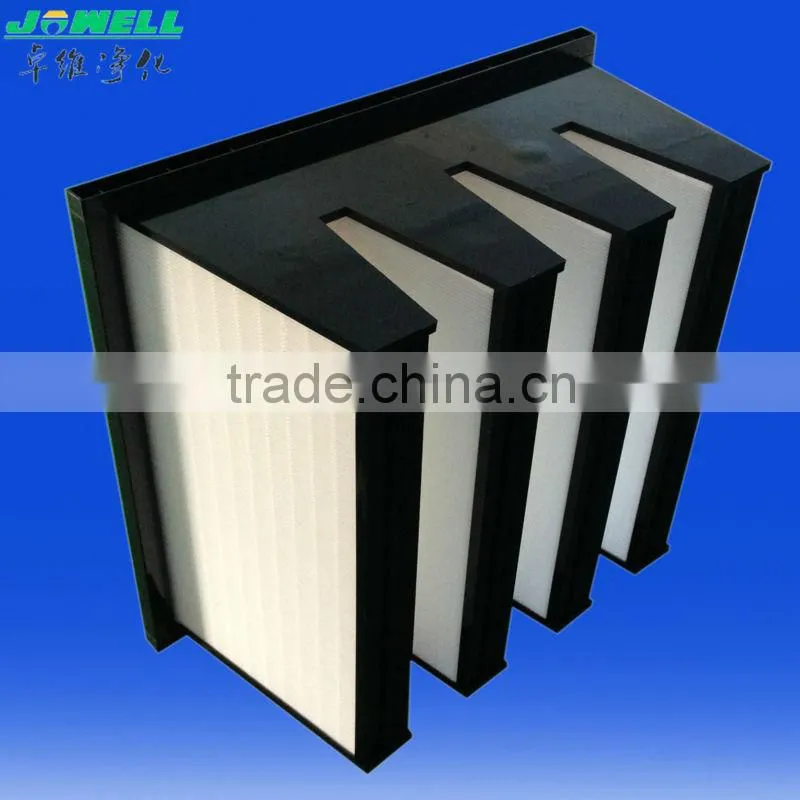

Compact  V-bank  Filter Description:



Compact or mini-pleat are high efficiency air inlet filters used for second and/or third stage filtration,

depending on the gas turbine ,air inlet system. Typical range from M6 or MERV 11 up to E12 (EPA level),

for the best gas turbine protection.





Compact V-ban Filter Features:



Large filtration area
Tested according to EN 1822
Extremely stable welded casing

High airflow
Long functional life
High dust holding capacity
Each filter includes a label noting tested efficiency,pressure drop,rated airflow.


Compact V-bank Filter Application:

 For filtration in aerial engineering plants of all kinds:


 Medical facilities
 Pharmaceuticals
 Semiconductor facilities
 Food processing plants.
 Prefiltration,e.g.for HEPA filters



Compact V-bank Filter Parameters:

Model

Dimensions

(mm)

W×H×D

Rated air flow

M3/h

Initial resistance

pa



Efficiency

EN779

HEPA Filter Material

Media

 Separator

 Sealant

Frame

FV

595×595×295

3600

≤110

99.99%

 Fiberglass

Thermosol

Polyurethane Rubber PU

Polypropylene

ethylene

295x595×295

1800

≤110

Model

 Dimensions (mm)

W×H×D

 Rated air flow

M3/h

Initial resistance

pa

Efficiency

EN 1822

HEPA Filter Material

 Media

 Separator

 Sealant

Frame

HV

595x595x295

3600

≤110



99.99%



Fiberglass

Thermosol

Polyurethane Rubber PU

Galvanized steel or Aluminum optional

295x595x295

1800

≤110


 High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter
High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank FilterHigh Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter

High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter



Company Information

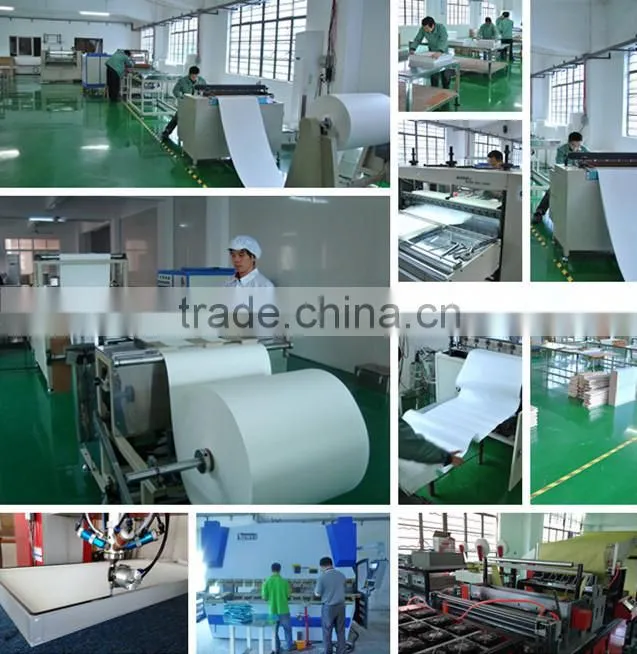

Dongguan Zhuowei (Jowell) Purification Technology Co., Ltd. is a high-tech enterprise which specializes in design, manufacture, sale, installation and inspection of air HEPA filters and purification equipments. We have been increasingly gathering experience of air filter industry since the foundation in 2002, and adopted advanced technology, machineries and materials to produce primary, medium and air HEPA filters and purification equipments. At present, we are enjoying a high reputation among air purification field.

High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter

High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter

High Capacity Compact Mini Pleat V-bank Gas Turbine Filter HEPA V-bank Filter
