JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8

JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 photo-1
JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 photo-2

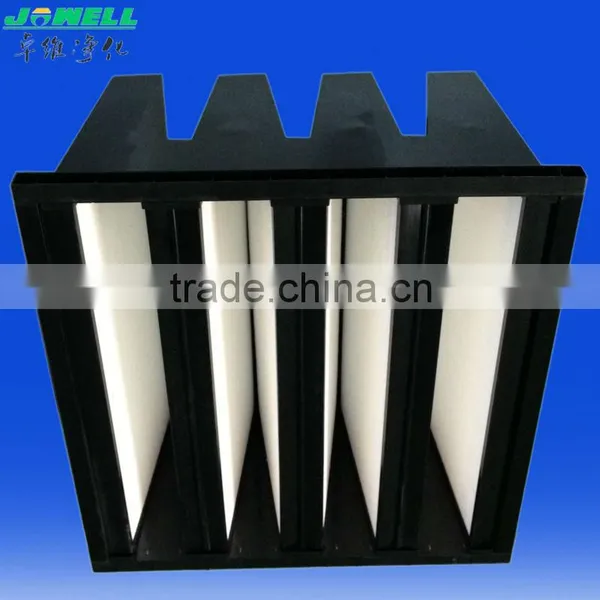

JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 photo-3
JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 photo-4

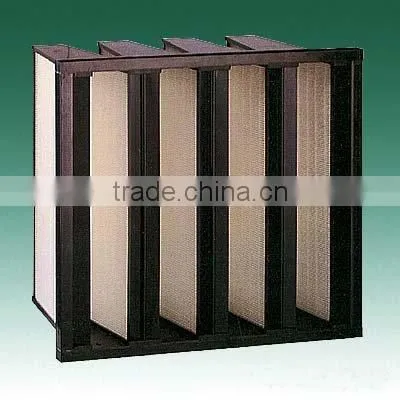

JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 photo-5
JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 photo-6
US$ 42 - 88 MOQ: 12 Pieces
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
95%~99.99%
Construction:
Other, V-Bank Filter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Efficiency 95%~99.99%
Construction Other, V-Bank Filter
Filtration Grade Hepa Filter
Medium Material Fiberglass
Porosity 0.3 um
Place of Origin Guangdong, China
Brand Name ZHUOWEI
Model Number FV HV
Dimension(L*W*H) 595*595*292MM
Weight 6KGS
Certification RoHS
Warranty one year guarantee
After-sales Service Provided Overseas third-party support available



Product Description



Plastic Frame Mini Pleat PP Media Compact V Bank Air Compressor Filter F8 EN779



JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8



Compact V Bank Air Compressor Filter  Description:



Compact or mini-pleat are high efficiency air inlet filters used for second and/or third stage filtration,

depending on the gas turbine ,air inlet system. Typical range from M6 or MERV 11 up to E12 (EPA level),

for the best gas turbine protection.





Compact V Bank Air Compressor Filter  Features:



Large filtration area
Tested according to EN 1822
Extremely stable welded casing

High airflow
Long functional life
High dust holding capacity
Each filter includes a label noting tested efficiency,pressure drop,rated airflow.


Compact V Bank Air Compressor Filter Application:

 For filtration in area engineering plants of all kinds:


 Medical facilities
 Pharmaceuticals
 Semiconductor facilities
 Food processing plants.

 Heavy Facilities: air compressor; gas turbine, diesel engine
 Prefiltration,e.g.for HEPA filters



Compact V Bank Air Compressor Filter Parameters:

Premeters



Model

Dimensions

(mm)

W×H×D

Rated air flow

M3/h

Initial resistance

pa



Efficiency

EN779

HEPA Filter Material

Media

 Separator

 Sealant

Frame

FV

595×595×295

3600

≤110

99.99%

 Fiberglass

Thermosol

Polyurethane Rubber PU

Polypropylene

ethylene

295x595×295

1800

≤110

Model

 Dimensions (mm)

W×H×D

 Rated air flow

M3/h

Initial resistance

pa

Efficiency

EN 1822

HEPA Filter Material

 Media

 Separator

 Sealant

Frame

HV

595x595x295

3600

≤110



99.99%



Fiberglass

Thermosol

Polyurethane Rubber PU

Galvanized steel or Aluminum optional

295x595x295

1800

≤110

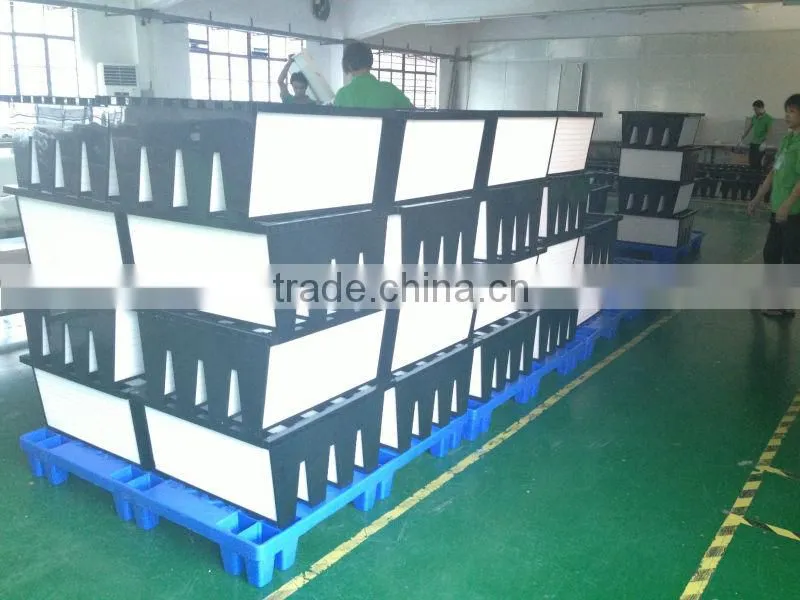

Production Flow




 JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8

 JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8

JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8

JOWELL F8 Mini Pleat PP Media Compact V Bank Air Compressor Filter F8

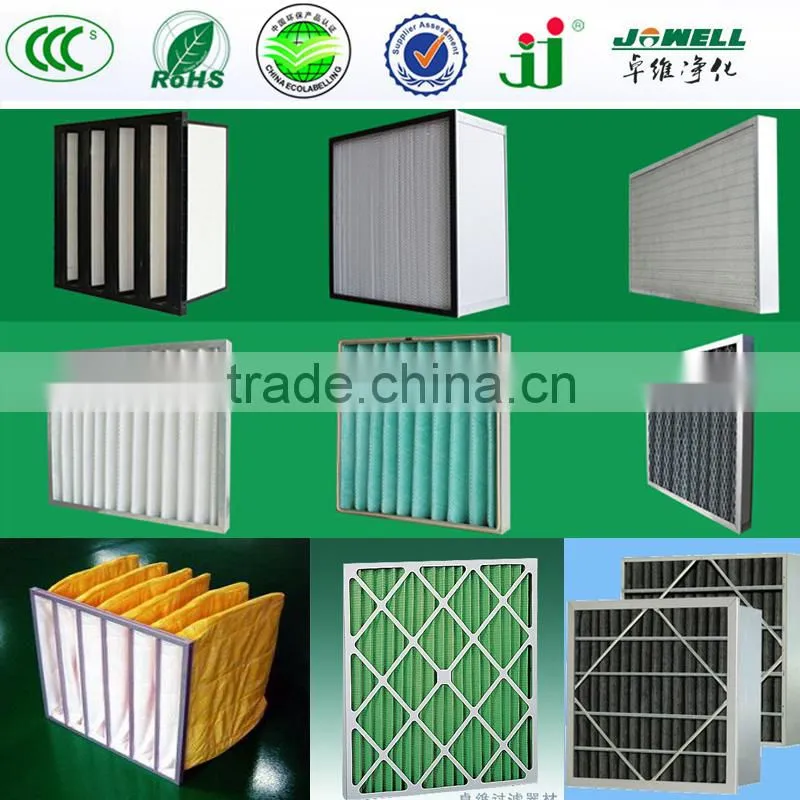

Other Air Filters We Produce:
