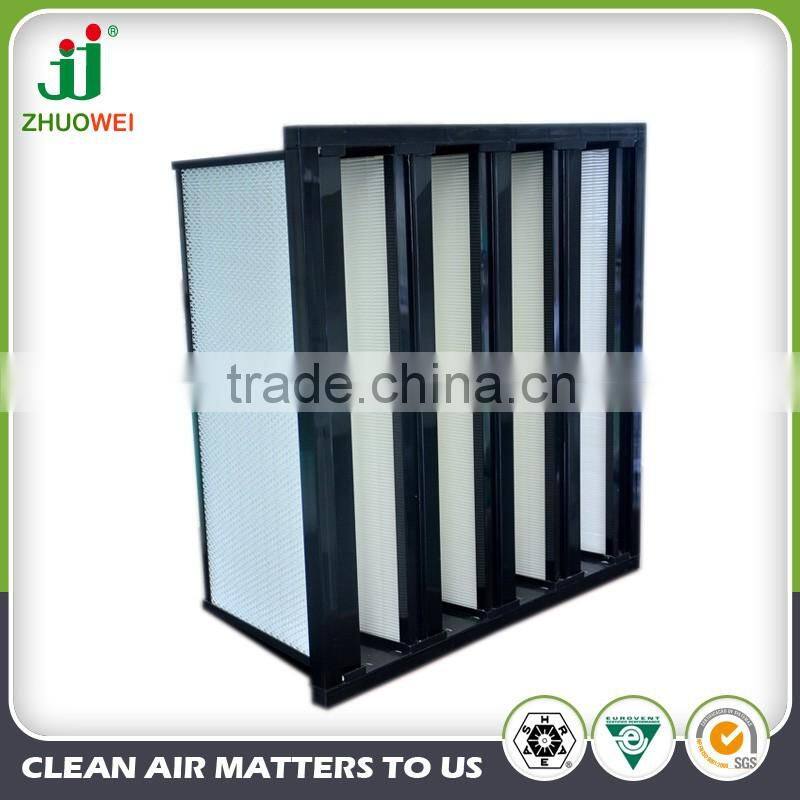

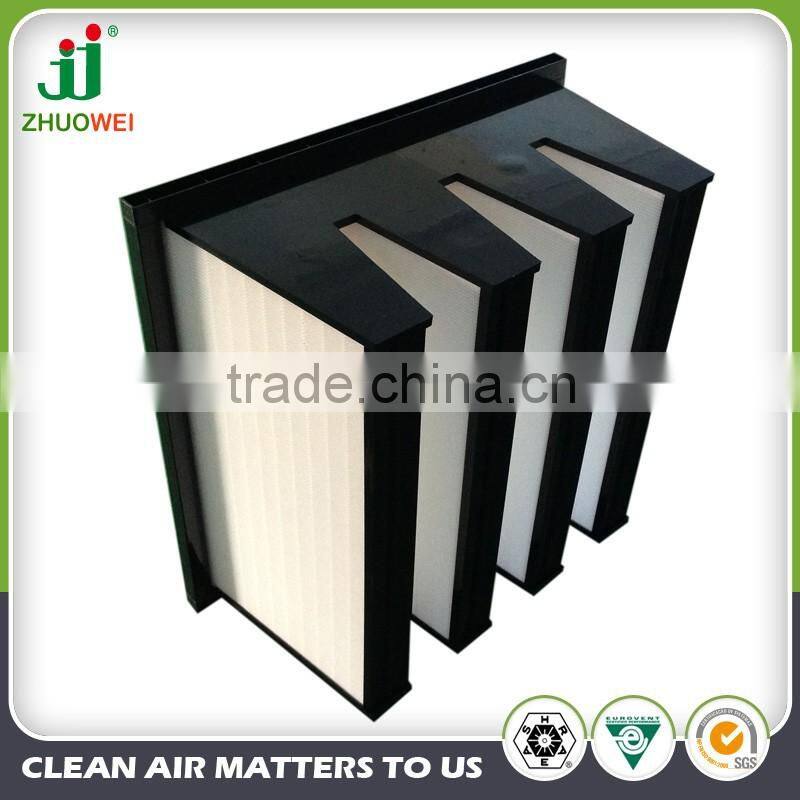

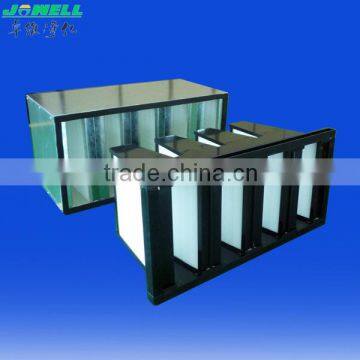

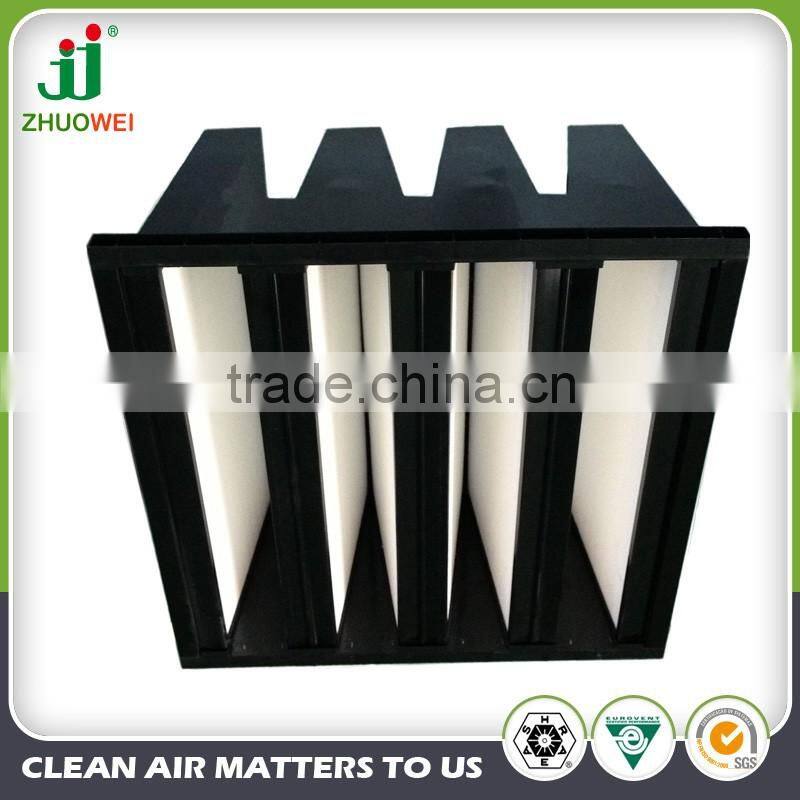

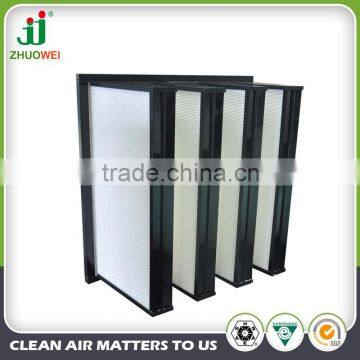

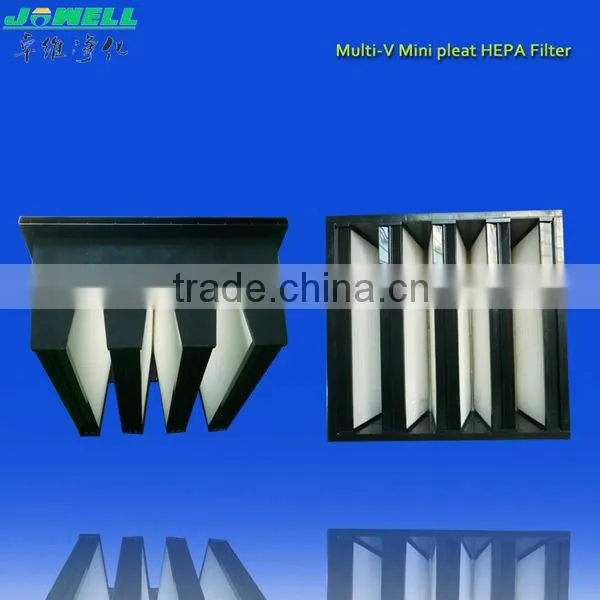

FV Combined Sub-HEPA Air Filter HEPA for the ventilation system
Features:
1.All frame components are made from plastic forcompletely disposable, enviroment-friendly.
2. Large filtration area
3.Suitable for Gas turbine industries
4.High airflow
5.Long functional life
6.High dust holding capacity
7.Each filter includes a label noting tested efficiency,pressure drop,rated airflow.
Description:
High-Capacity V-Bank Medium/HEPA Filter in an All-Plastic Frame includes a wet-laid,microfine
fiber media in a unique pleat-in-pleat V-bank design with up to 200 square feet of media area for
higher dust-holding capacity,longer system life and a lower average pressure drop to save energy
costs.
Media is water-resistant.
Includes glass filament separators to ensure uniform airflow throughout the media pack.
Includes a high-strength,impact-resistant Plastic enclosing frame.
Include a one-inch header for added stability and a secure fit into the filter holding mechanism.
The header is permanently attached to the side flanges and side channels.
Include a header sealing gasket to ensure no air bypass between headers in multi-filter systems;
an serve systems with airflow capacities to 3,000 cfm and has a maximum recommended final pressure drop capability to 2.0" w.g.
Model |
Dimensions (mm) W×H×D |
Rated air flow M3/h |
Initial resistance pa |
Efficiency EN779 |
HEPA Filter Material |
|||
Media |
Separator |
Sealant |
Frame |
|||||
FV |
595×595×295 |
3600 |
≤110 |
95% |
Fiberglass |
Thermosol |
Polyurethane Rubber PU |
Polypropylene ethylene |
295x595×295 |
1800 |
≤110 |
||||||
Model |
Dimensions (mm) W×H×D |
Rated air flow M3/h |
Initial resistance pa |
Efficiency EN 1822 |
HEPA Filter Material |
|||
Media |
Separator |
Sealant |
Frame |
|||||
HV |
595x595x295 |
3600 |
≤160 |
99.99%
|
Fiberglass |
Thermosol |
Polyurethane Rubber PU |
Galvanized steel or Aluminum optional |
295x595x295 |
1800 |
≤160 |
||||||
