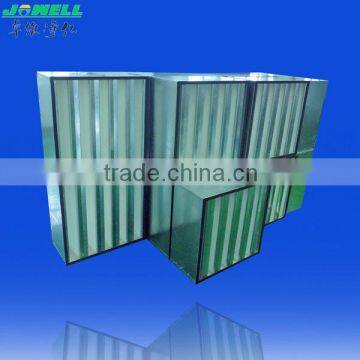

Low resistance HV Combined HEPA Air filter for industrial vacuum cleaner
- 2000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Industrial large air flow Fiber glass HV Combined HEPA Air filter
-
Low resistance pp media FV Combined Sub-HEPA Air Filter
-
Long service life and Large filtering area FV Combined Sub-HEPA Air Filter
-
FV Combined type Sub-HEPA Air Filter with flange frame
-
Large filtering area FV Combined Sub-HEPA Air Filter HEPA
-
24*24*12'' high efficiency HV Combined HEPA Air filter for industry
Product Details
| Condition | New | Efficiency | H13 | |
| Construction | Other, V-type | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.3um | |
| Place of Origin | Guangdong, China | Brand Name | Jowell | |
| Model Number | HV | Dimension(L*W*H) | 595x595x295mm | |
| Weight | 18kgs | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | No overseas service provided |
Product Description
Low resistance HV Combined HEPA Air filter for industrial vacuum cleaner
Features:
1. Premium polyester fiber or ultra-fine fiberglass paper;
2. Polypropylene plastic frame, nontoxic gas pollution when burned;
3. Large filtering area, low resistance and long service life;
4. The depth is 290mm only, suitable for the ventilation system that is limited in space;
5. With flange frame, these series can be exchanged by pocket air filters.
6. Large dust holding capacity, large air flow, low resistance, easy installation and light weight.
7. Header: 20mm, 25mm optional.
Model,dimension and parameters:
Model | Dimensions (mm) W×H×D | Rated air flow M3/h | Initial resistance pa |
Efficiency EN779 | Material | |||
Media | Separator | Sealant | Frame | |||||
FV | 595×595×295 | 3600 | ≤110 | 99.99% | Fiberglass | Thermosol | Polyurethane Rubber PU | Polypropylene ethylene |
295x595×295 | 1800 | ≤110 | ||||||
Model | Dimensions (mm) W×H×D | Rated air flow M3/h | Initial resistance pa | Efficiency EN 1822 | Material | |||
Media | Separator | Sealant | Frame | |||||
HV | 595x595x295 | 3600 | ≤110 |
99.99%
| Fiberglass | Thermosol | Polyurethane Rubber PU | Galvanized steel or Aluminum optional |
295x595x295 | 1800 | ≤110 | ||||||
Product show
