Easy Install Panel Type Mini Pleat Hepa Air Filter

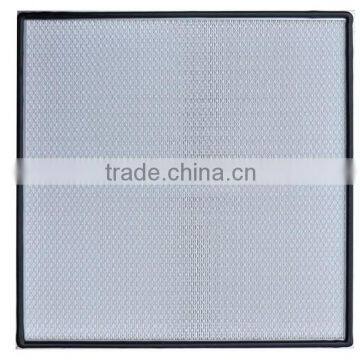

Easy Install Panel Type Mini Pleat Hepa Air Filter photo-1
US$ 12.9 - 39.6 MOQ: 12 Pieces
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
H10-U17
Construction:
Panel Filter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Efficiency H10-U17
Construction Panel Filter
Filtration Grade Hepa Filter
Medium Material Fiberglass
Porosity 0.3micron
Place of Origin Guangdong, China
Brand Name Jowell
Model Number HP
Dimension(L*W*H) 610x610x69mm;
Weight 4.5KGS
Certification ISO9001
Warranty one year
After-sales Service Provided Overseas third-party support available

Top Selling Mini Pleat Hepa Air Filter without Partition



Features:



HEPA or high efficiency particulate arresting filters capture 99.97% of airborne contaminants as small as 0.3 microns in size. The Zhuowei HEPA filter removes bacteria,mold spores,soot, pollens, animal hair, animal dander, dust mites, smoke particles and other allergens and lung damaging particles.







1. Frame: Galvanized sheet/ aluminum



2. Sealant: Polyurethane adhesive



3. Separator: thermosol



4. Media: fiberglass paper



5. Max. Operating Temperature: 80 C



6. Max. Operating Humidity: 80%



7.Seal: Neoprene/polyurethane







Description:
These filters is constructed with galvanized frame,aluminum frame.
The interlock frame design with sealant in the top and tiattow flange.
Protective mesh on both sides prevent filters from damaging and blemishing.
Available in a wide range standard sizes to meet variety of demands and install space.
Individually leak test guarantee each filter be of good capacity and operate well in the system.
Pleated filter media packs enlarge the media area farthest and increase the dust holding capcity to extend the useful time.





Application:
Clean rooms for micro component electronic manufacture & assembly
Food processing industry.
Pharmaceutical Processing
Aerospace Engineering
Genetic & Biological research
Biohazard Atmosphere
Laminar Flow Workstations
Bio Safe Hoods(Biological Safety Cabinets)
Hospital Operating Theaters & Intensive care units
Atomic Research
Pre filter stage to ULPA systems



These filters can remove a broad range of airborne contaminants.
They can be used as final filters in hospital ,pharmaceutical aerospace, food processing industry.
Also can be used as HEPA Filter for the most demand cleanrooms.





Specification:



Standard size and Technical data:
