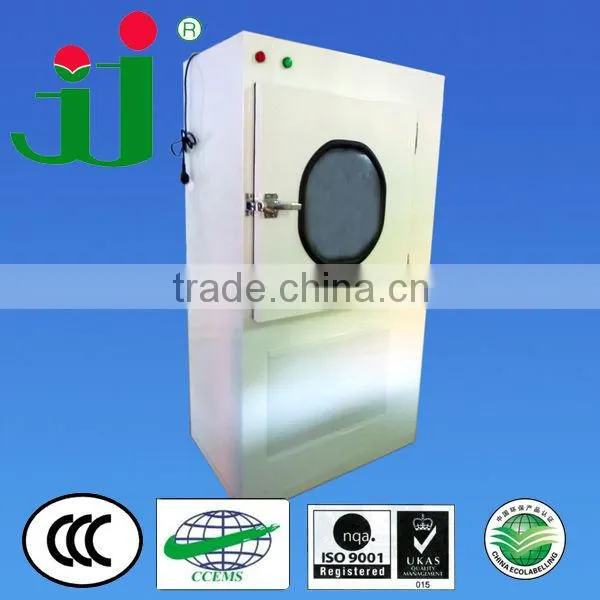

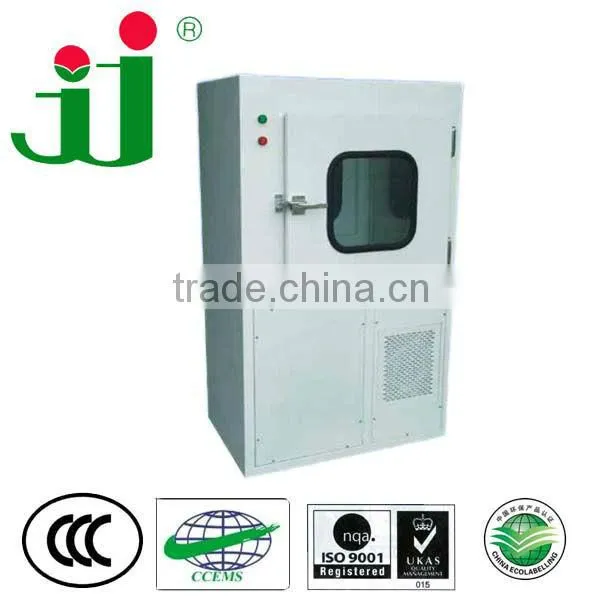

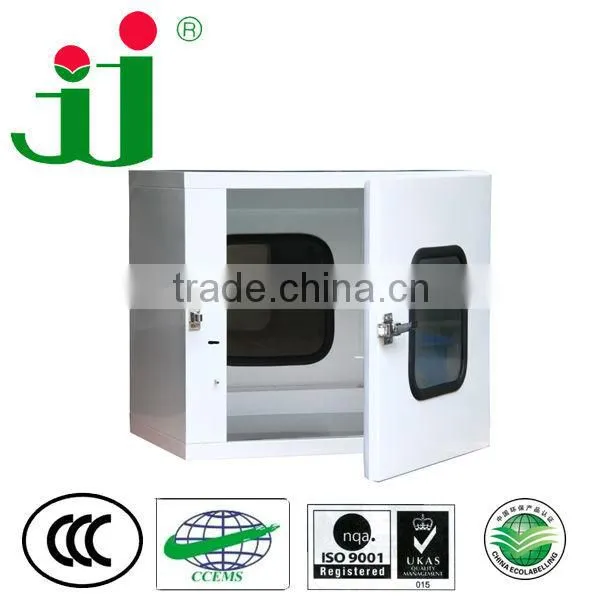

Cleanroom Pass Box Transfer Window

Name: Cleanroom Pass Box Transfer Window
Brand: Jowell
SKU: 133353563

US$ 160 - 580 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Jowell

Dongguan Zhuowei Purification Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name Jowell

Model Number ZW-ASP-600

Voltage 380 V

Power(W) 400 W

Dimension(L*W*H) 900*1450*600mm

Weight 150kg

Certification ISO9001

Warranty One year

After-sales Service Provided Engineers available to service machinery overseas

Cleanroom Pass Box Transfer Window

Blower and Filtration Systems:

Zhuowei Air Shower Pass Boxes use Taiwan made permanently lubricated, centrifugal motor/blowers with external rotor designs. Selected for energy efficiency, compact design, and flat profile, the completely integrated blower assembly optimizes motor cooling, with unified rotating parts and overall component balance for smooth, quiet, vibration-free operation. Weight is equally distributed to all bearings to extend bearing life.
ULPA filter(s) provide 99.999% typical efficiency for particle sizes at 0.1 to 0.3 microns. The filters meet the recommended practice for HEPA performance (USA), and EN 1822 for H13 performance (EU).
A disposable pre-filter with 85% arrestance extends the life of the main filter.
Optional UV lamp, must be factory fitted, specify when ordering.
Air is forced by the blower(s) through ULPA filter(s) which are 99.999% efficient against particles of 0.1 to 0.3 microns.
Filtered air is ejected through nozzles at high velocities into the chamber. These turbulent air streams disperse particulate matter on all surfaces.
Dispersed particulate matter migrate with the air stream towards the lower areas in the air shower chamber.
The air is continuously filtered and recirculated.

Specifications:

PASS BOX WITH AIR SHOWER
Model	ZW-ASP-500	ZW-ASP-600	ZW-ASP-700	ZW-ASP-800
External Size	W820 x H1360 x D500	W940 x H1450 x D600	W1020 x H1560 x D700	W1120 x H1660 x D800
Internal Size	W500 x H500 x D500	W600 x H600 x D600	W700 x H700 x D700	W800 x H800 x D800
External Material	Cold rolled steel plate with powder coated or stainless steel
Internal Material	Stainless steel
Power Consumption	285W
Fan Rum(R/M)	2800
Noise	≤ 80 db(A)	≤ 80 db(A)	≤ 80 db(A)	≤ 80 db(A)
Nozzles	4 PCS	4 PCS	4 PCS	4 PCS
Efficiency	99.99% @ 0.3UM	99.99% @ 0.3UM	99.99% @ 0.3UM	99.99% @ 0.3UM
Power Supply	2P 220V 50/60Hz
Door Lock	Mechanically or electronically interlocked
Custom made sizes are available.
