CE ROHS SGS ISO JOWELL AIR SHOWER CLEAN ROOM
Specifications
Static eliminator air shower
ISO9001 CERTIFIED
SUS,grade 304 construction
One year guarantee
380V or 220V are both available
Static eliminator air shower

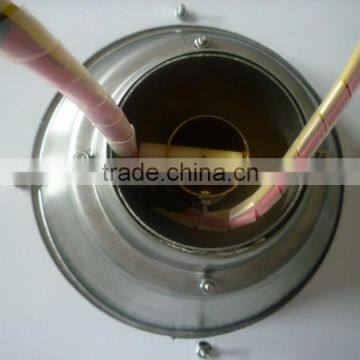

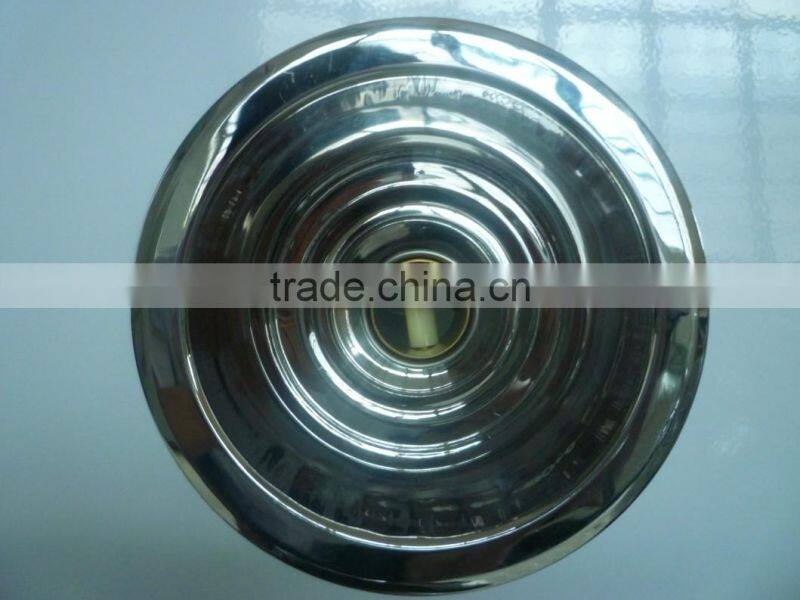

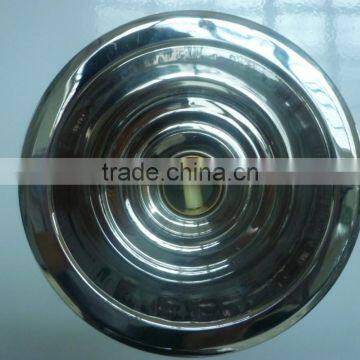

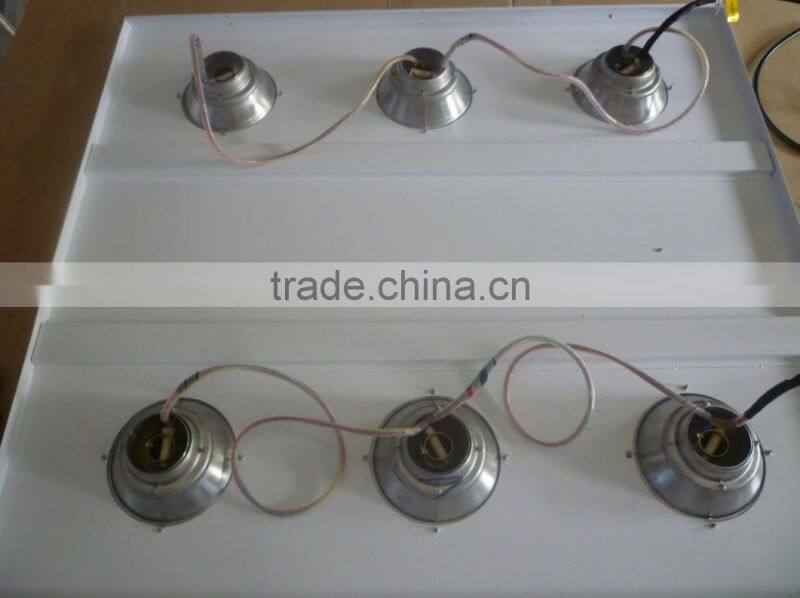

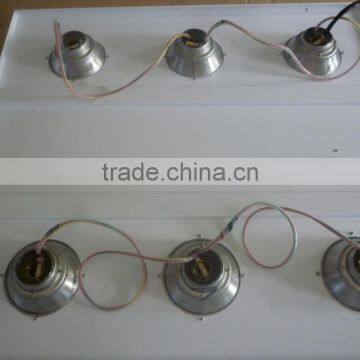

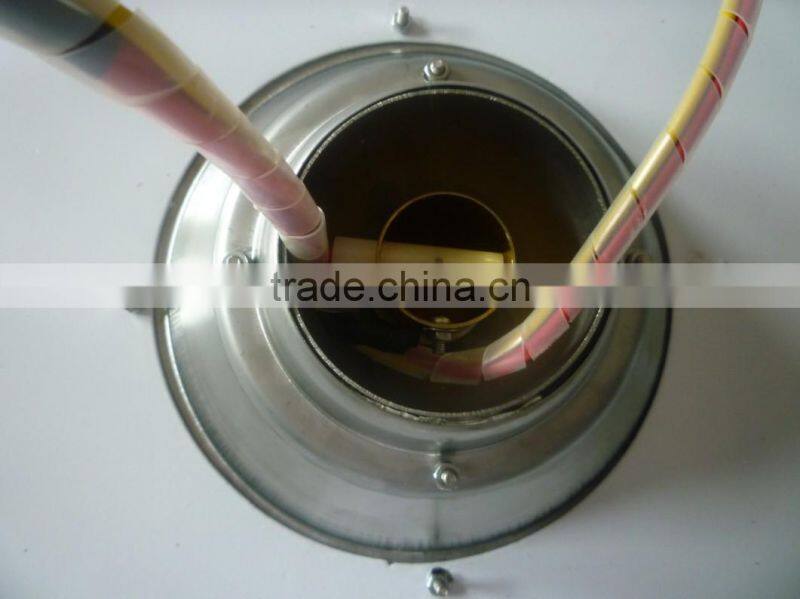

Ion Wind Mouth Remove Static Principle:
ST205A WIND DRIP ION WIND MOUTH,By the exchange of static electricity elimination device design principles which are electronic category. It was targeted at users access to wash room purification plants, through wind drip drip human clothes dust blowing room, and people can also achieve physical effectiveness of the electrostatic charge. Widely used for the production of sophisticated electronic workshop wind intentionally access. To be Configuration ST402A or ST405A pressure generator.
Ionization Devices:
Ionization devices under high voltage generator and high voltage low current , forming a stable high-strength electric fields , ionizing air plasma formed by a high-pressure flow out of reach the surface, to neutralize static electricity and dust removal purposes.
Product Features:
In static quickly
Strong ion flow
Wind adjustment range( need to install control valve)
Nozzle has a good grounding protection

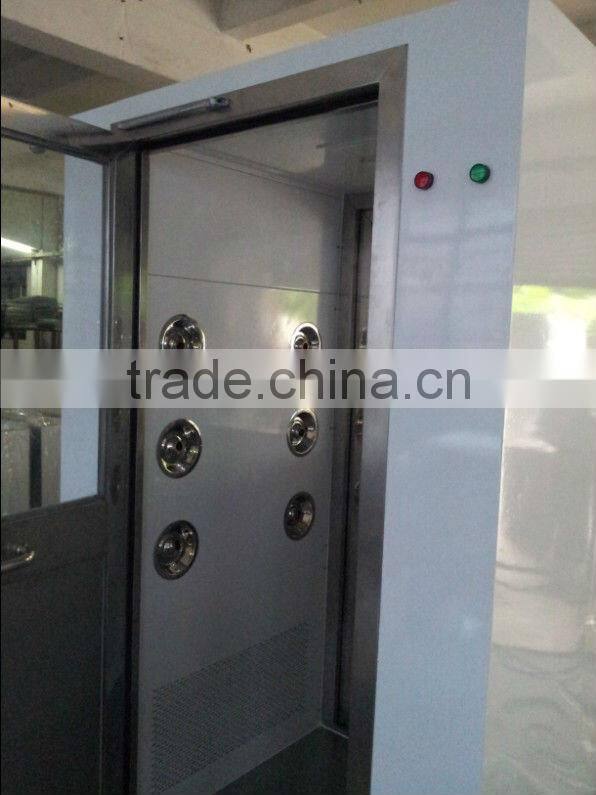

As clean room equipment, installed in the clean room entrance and used to remove the dust on personnel or goods entering through it, Automatic Blowing Air Shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside , and all stainless steel (SS201 or SS304; thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure. An air shower passage can be made up of several air showers.
Features:
1.Photoelectric sensor, automatic blow
2.Electronically interlocked with double stainless door
3.Stainless nozzles
4. Audio system
5. With Auto, Stop, Manual, Emergency Stop function keys
6. An Emergency Stop push button: will override the operating cycle to release the door locks immediately
7. Custom sizes are possible
Model, dimensions and parameters:
Parameter:
ST402A HIGH VOLTAGE GENERATOR | |
ST402A high voltage generator,assemble with ST205A ion wind mouth | |
Specification: | |
Operating Voltage |
110V/60HZ OR 220V/50HZ |
Current Consumption |
0.29A OR 0.17A |
Operating Temperature |
-10~50°C |
Weight |
3.3Kg |
Output Voltage |
5.6Kv×2 |
Output current |
Max 4.5mA |
Parameter:
ST205A ION WIND MOUTH | ||||
ST205A ion wind mouth,assemble with ST402A high voltage generator | ||||
Specification: | ||||
Operating Voltage |
4.6KV |
|||
Current Consumption |
200uA |
|||
Operating Temperature |
-10~50°C |
|||
HV Cable length |
2 Meters |
|||
Air pressure |
5~7Kg |
|||
Air velocity |
10m/sec |
|||
Decay test Results: | ||||
Testing Conditions |
Test voltage:5KV-500V Operating Voltage:4.6KV Temperature:22°C |
|||
Distance |
|
30mm |
90mm |
150mm |
Decay time |
Positive |
0.1s |
0.4s |
0.8s |
Negative |
0.1s |
0.3s |
0.7s |
|
Dongguan ZHUOWEI Purification Technology Co.,Ltd
Sales representive: Susan Ke
Tel: + 86-769-854-405-38 Ext. 803
Fax: +86-769-854-405-39
Cell: +86 150-9807-2722
Skype:Susan Ke
Website:
Address: 23, Chuangli Rd, Shangsha, Changan Town,
Dongguan, GD 523850, P.R.C
"CLEAN AIR MATTERS TO US"
