Home > Products > Ceiling Filter Module > JOWELL &Stainless Steel dc ffu clean project Fan Filter Unit,FFU

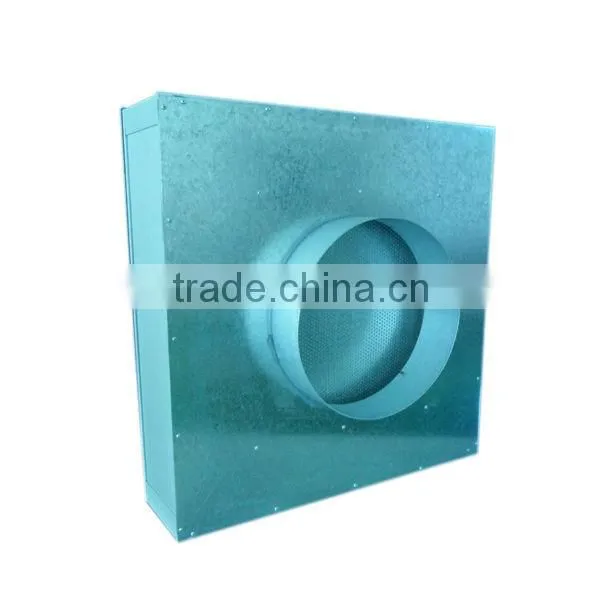

JOWELL &Stainless Steel dc ffu clean project Fan Filter Unit,FFU
- 1000 Piece / Pieces per Month
- SHENZHEN
- Credit Card PayPal
- 5 micro pp filter cartridge for pre filter
- washable air filters
- Air Breather HY-GLQL-001 for India Power Plant
- Filter air outlet static pressure box aluminum partition filter air outlet
- Small FFU fan 500 * 500mm FFU thin FFU fan ultra small FFU
- FFU dust-free supply fan FFU laminar flow hood ultra clean workbench FFU
Product Details
Condition: | New | Efficiency: | ≥99.99% Sodium flame | Construction: | Box Filter |
Filtration Grade: | Hepa Filter | Medium Material: | Fiberglass | Porosity: | 0.3micron |
Place of Origin: | Guangdong, China | Brand Name: | Jowell | Model Number: | FM |
Dimension(L*W*H): | 600x600x150mm | Weight: | 1-100kgS | Certification: | ISO9001SGS CE, CE ROHS ISO9001 SGS |
Warranty: | One Year | After-sales Service Provided: | Overseas third-party support available |
Product Description
JOWELL &Stainless Steel dc ffu clean project Fan Filter Unit,FFU
Feature:
1.High Efficiency HEPA Filter Module;
2.Closed structure;
3.Light Shell,Hepa Filter;
4.Available leak and scan tested;igh efficiency;Low resistance;Light weight;Easy to install;Low cost;
Description:
High Efficiency Filter Box Ducted Ceiling Module The Gel Seal filters are available in HEPA or ULPA efficiencies. The dimple pleated filter pack is sealed in an anodized aluminum frame that contains a gelled channel to insure a leak free,tight seal. The filter element is protected by an anodized aluminum housing and diffuser screen, with a damper controland challenge port for the measurement of challenged aerosol. An anodized extruded aluminum center dividerwith access port provides access for adjustment of the distribution plate and measurement of the resistance andchallenge aerosol. A painted expanded metal faceguard on the downstream side protects the media.
Data sheet
Model No. | External Dimension (mm) | Rated Air Flow (m³/h) | Initial Pressure Drop (Pa) | Efficiency (%) | Dust Holding Capacity (g) |
JOWELL-002 | 610×610×150 | 600 | ≤220 | ≥99.99 | 650 |
JOWELL-003 | 915×610×150 | 900 | ≤220 | ≥99.99 | 950 |
JOWELL-004 | 1220×610×150 | 1100 | ≤220 | ≥99.99 | 1000 |
Carton,plywood and crates.
Workshop :
1. Are you trading company or Manufacturer ?
We are the factory.
2.What's your mainly products ?
We are the high-tech enterprise which specializes in design.manufacture,sale ,installnation and inspection of air filters and
purification equipments.
3.What about the payment terms ?
We can provide T/T,PAYPAL,WEST UNION.
4. How long your delivey time ?
Delivery will be within 7 days after payment.
Contact us
Dongguan ZHUOWEI Purification Technology Co.,Ltd
Sales :Susan ke
Tel: + 86-769-854-405-38 Ext. 814
Fax: +86-769-854-405-39
Cell: +86 150-9807-2722
Skype:Susan ke
Website:
Address: 23, Chuangli Rd, Shangsha, Changan Town,
Dongguan, GD 523850, P.R.C
"CLEAN AIR MATTERS TO US"
Welcome to visit our factory !
Hope cooperate with you in the near future !
