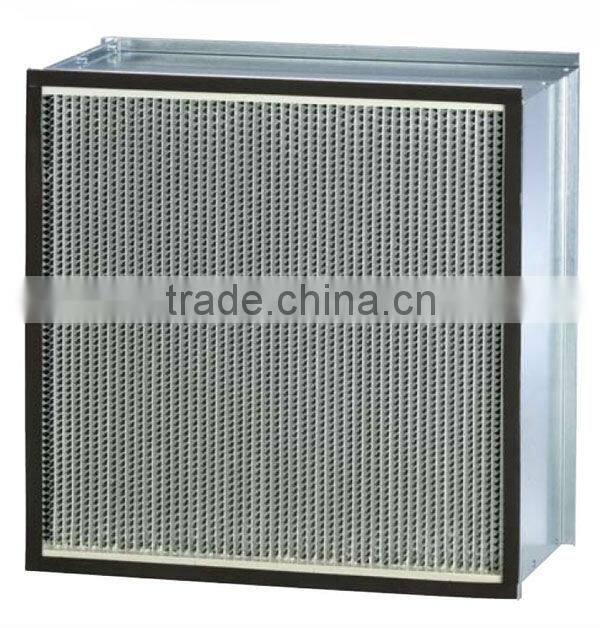

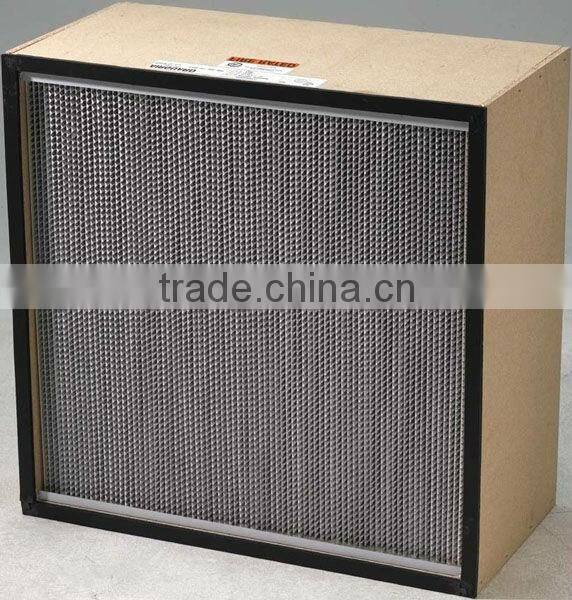

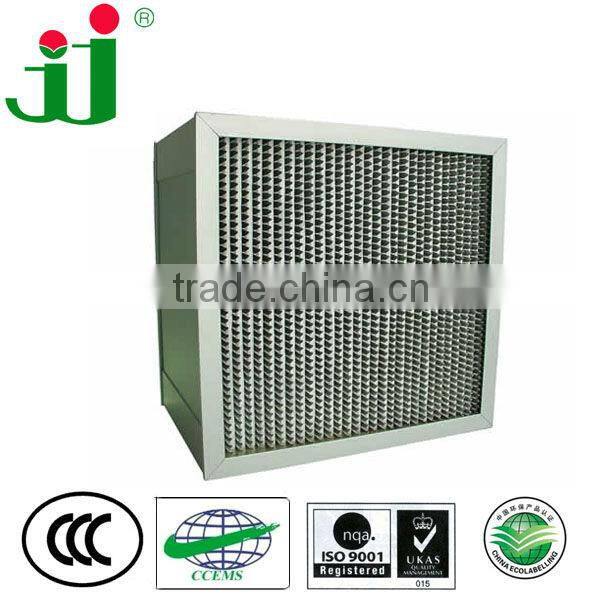

Jowell Brand High Efficiency HEPA Panel Air Filter
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Condition | New | Efficiency | 99.999%, 99.99 | |
| Construction | Box Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Fiberglass | Porosity | 0.3 micron particles | |
| Place of Origin | Guangdong, China | Brand Name | Jowell | |
| Model Number | HS | Dimension(L*W*H) | 610x610x150mm | |
| Weight | 9.5KGS | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | Overseas third-party support available |
Product Description
Jowell Brand High Efficiency HEPA Panel Air Filter

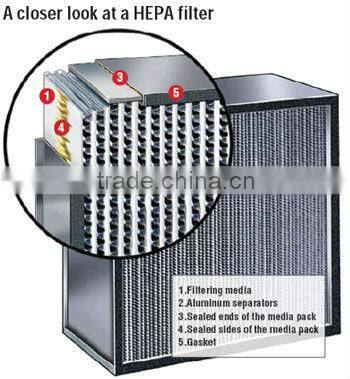

1.Waveness aluminum foil pleat or the paper pleat can make use of the filtration material completely.The thickness of the aluminum foil is 0.03mm, the height of the waveness is 4mm,which make sure of the filtration area and the quality of the filter .
2.The filtration material is the high density paper which is made from super fine fibreglass.Pleat the filtration paper(made from the fiberglass) in order to enlarge the filtration area as large as possible and to slowdown the filtration speed.It is very important for the HEPA filter.
3.Laser tested one by one; Temp. resistance up to 80C; Small resistance high efficiency; Long service life.
4.Applied to the terminal filtration for the air-condition filtration system. Used in hospital,electronic industry,food ,precision instrument,electron semiconductors.
Specification:
Model | Dimensions(mm) Width×height×depth |
Rated air flow m3/h |
Initial resistance pa |
Efficiency % | material | |||
media | seperator | sealant | frame | |||||
HS | 320×320×220 484×484×220 610×610×150 820×600×150 630×630×220 968×484×220 945×630×220 1260×630×220 | 400 1000 1000 1200 1500 2000 2200 3000 |
220
|
>99.99 Sodium flame |
Glass fiber filter paper |
Aluminum foil;sized paper |
Polyur-ethane adhesi-ve |
WOODEN/ Galvanized steel/Aluminum alloy plate |
