Wall mount 21.5 inch touch screen all-in-one computer

Name: Wall mount 21.5 inch touch screen all-in-one computer
Brand: hopestar
Availability: InStock

FOB Price

USD $250 - $270 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Description

Flat Structure, Ergonomic design, Slim Frame,Streamline Modelling, Sophisticated Craft.
Integrated systematic in displaying, touching and PC using, with only 42.9 mm thickness.
Adopt the latest projected capacitive screen, it supports 10 points touch, available for both hand-writing and multi-points clicking.
Response time is less than 3ms,high accuracy, easy for operation and maintenance.
Anti-light interference, to ensure the accuracy during the process of operation(it can be used normally even under strong lights).
Flexible configuration, can be expanded to install all accessories and functions based on customers' requirements.
Aluminium Alloy+Metal Plate, without sharp edge, wear-resisting and antiseptic baking technology, Whole Anti-riot function.
Advanced design, Strict assembly technology, Stable quality, Low malfunction.
On and Off controlled together by one button, free of installation and debugging.

Panel	Screen Type	LED Backlight and LCD A Grade	Number of Colors	16.7M(8-bit 2(LVDS)
	Screen Size	21.5 Inch (16:9)	Viewing Angle	(H:178° V:178°)
	Viewing Area	344 (H)×194 (V)	Working Life	>50000 Hours
	Resolution	1366×768	Contrast Ratio	≥5000:1
	Brightness	≥250cd/m2	Refresh Frequency	60Hz
	Response Time	<5ms
Touch Panel	Touch Mode	Capacitive Touch Screen	Electrical Current/Voltage	180Ma/DC+5V±5%
	Response Time	<5ms	Anti-light Interference	Anti-light Interference: it can still work normally under the influence of sunlight, incandescent light, fluorescent light and some other strong lights.
	Quantity of Touch Point	Standard Configuration: 10 Touch Points, enlarging and shrinking images is availablle, it also supports multi-touch.	Data Output	Coordinate Output
	Touch Identification Validity	>1.5mm	Surface Hardness	Thermal Tempering, Morse magnitude 7 explosion-proof glass
	Scanning Frequency	200Hz	Operating System Compatibility	Windows 7/ Windows 8/CE/Mac/Android/Linux /XP
	Scanning Accuracy	4096×4096	Firmware	Update is available
	Communication Code	High Speed USB 2.0, 3.0	Driver	Plug and Play
	Theoretical Clicking Time	>50 Million Times Clicking
Parameter of Display	Power Supply Interface	12V	PC-AUDIO Input	1
	Comb Filter	3D COMB filter to lower noise	Earphone Output	1
	VGA Input, (15 pins D-Sub)	1	Power of Sound Output	2*10W
	HDMI Interface	1	Quantity of Speaker	2
	DVI Interface	1
Power Supply Parameter	Input Power Supply	220V AC 50/60Hz	Overall Power Consumption	<220W
Power Supply Parameter	Output Power Supply	12V 5A	Standby Power Consumption	<3W

Computer Parameter	Options	Android	X86 Standard	X86 Elite	X86 Luxury	X86 Ultimate	OEM
	Chip	Quadrupolar Core Processor RK3188	Intel Celeron	Intel Celeron	Intel I3	Intel I5	Customize is available according to clients' requirements.
	Chip	Quadrupolar Core Processor RK3188	Dual Core Processor 1037U	J1900	Intel I3	Intel I7
	RAM	2G	DDR3 2G/4G	4G	DDR3 4G/8G	DDR3 4G/8G
	Hard Disk	Flash Disk, allows to amplify	SSD 32G/500G	64G/500G	320G/500G	500G/1T
	Display Card	Android HD	Integrated Display Card	Nuclear of display	Nuclear of display	Nuclear of display
	Definition	720P/1080P
	Operating System	Android4.2	Multi-touch System: Windows 7/ Windows 8/Windows 10/ Android/Linux
	Operating System	Kernel Version	Single Touch System: XP/CE/MAC
	Network Adapter	Integrated 10/100/1000M auto-adaptive Network Card, Wireless Network Card 802.11a/b/g/n
	Power Supply Input	220V AC 50/60Hz
	Overall Power Consumption	<220W
	Standby Power Consumption	<3W

Shenzhen Hopestar Sci-Tech Co., Ltd.: Contact nameAudrey Z
Chat Now; Phone86-0755-82579059; Address(office function only) Rm31AB, Block B, Modern Window Bldg. Huaqiang north road, Futian District Shenzhen city, China , Shenzhen, Guangdong

Advertising Media Player	CCTV monitor	Digital Photo Frame	LCD Car Monitors
LCD LED Touch Screen Monitors	Lcd Monitors	LCD/LED TV with 3D/4K	Led Monitors
New Products	Open frame monitor	WIFI All-in-one PC

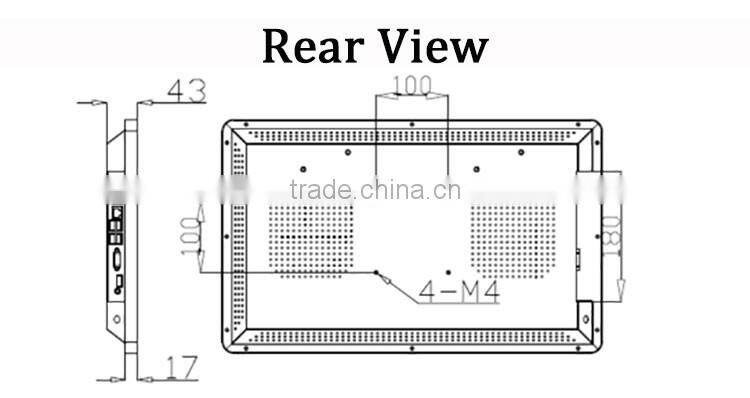

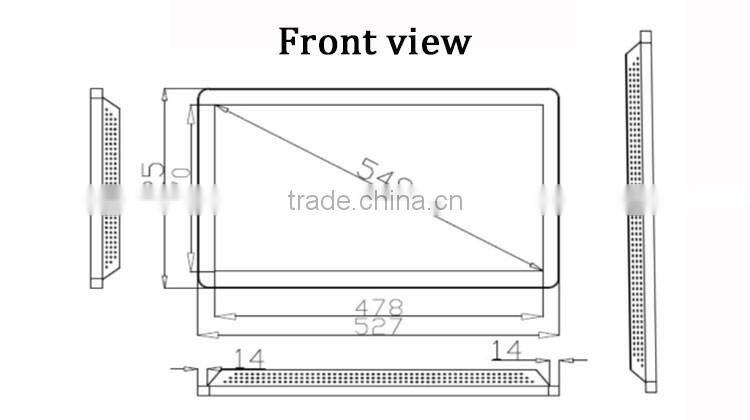

Screen Size	21.5 inch Length of Diagonal: 549 mm	Dimension of Wall Mount Screw	M4
Viewing Area	478*270 mm (16:9)	Dimension of Wall Mount Hole	100*100mm
Product Dimension	527(Width)×325(Height)× 43(Thickness)mm	N.W. (Product)	6.82 kg
Packing Size	560(Width)×430(Height)× 140(Thickness)mm	G.W. (Package)	7.6 kg
Base Bracket	Standard Wall Mount Bracket (N.W.: 0.18kg), Pedestal is optional
