Specifications
metal strip with holes1. Be more durable
2. Custom-made available
3. Fast delivery and transportation
factory supply hard metal strip with holes Detailed description
1.Professional manufacturer for tungsten carbide items with more than 10 years experience
2.ISO 9001-2008 Quality Control System
3.OEM, ODM project accepted
4.All payment terms supported

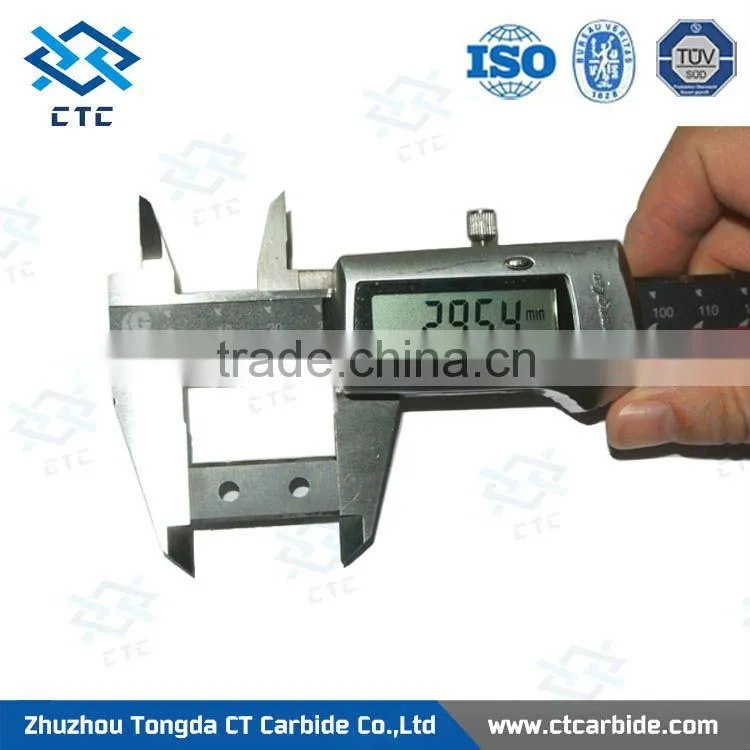

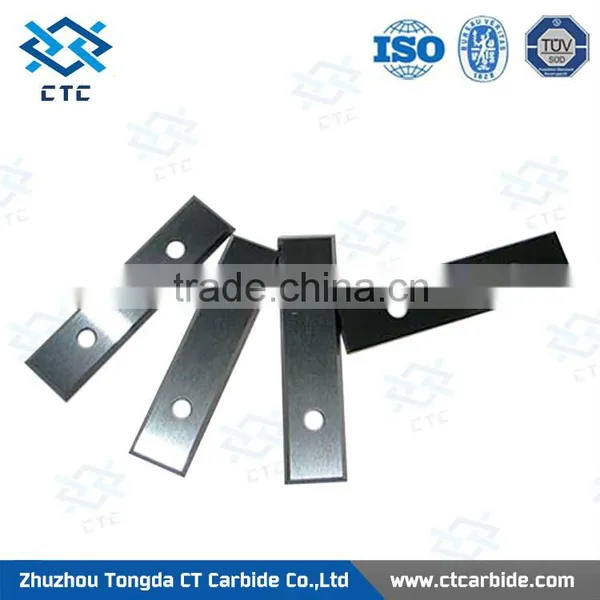

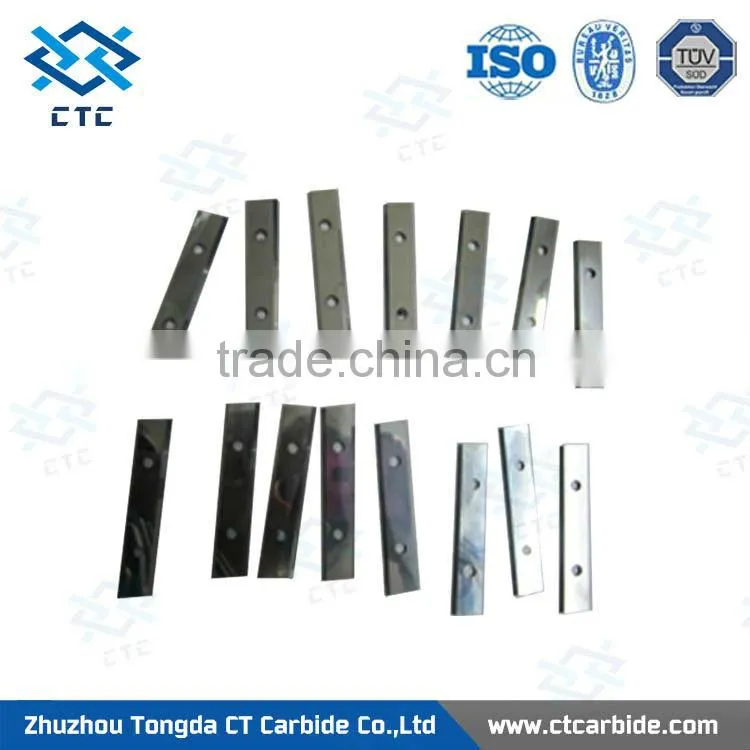

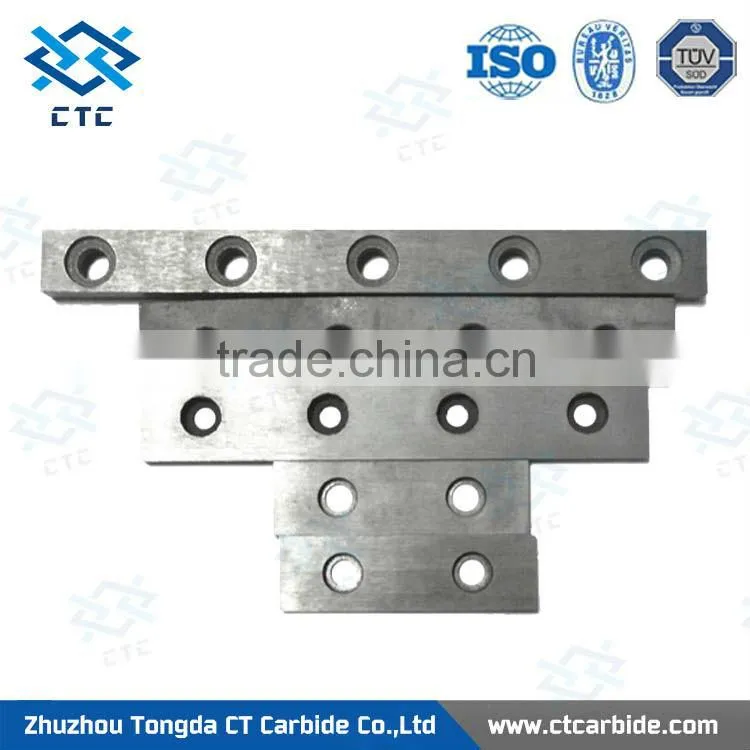

factory supply hard metal strip with holes pictures
factory supply hard metal strip with holes type information:
| Grade |
Equal to ISO Category Number |
Performance | |||
| Density |
Bend Strength |
Hardness | Application Recommented | ||
| G/Cm3 | N/mm2 | HRA | |||
| YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 |
sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron,non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
| YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 | |
| YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 |
Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
| YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | |
| YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 |
Qualified for finish machining and semi-finish machining for the cast iron, nonferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
| YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 |
Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials,drawing of steel, nonferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
| YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 |
Qualified for rough machining, semifinish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
| YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
| YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
| YW1 | M10 | 12.7-13.5 | ≥1180 | ≥91.5 |
Qualified for finishing and semifinishing machining of refractory steel, high manganese steel and common steel. |
| YW2 | M20 | 12.5-13.2 | ≥1350 | ≥90.5 |
Qualified for semifinishing machining of refractory steel, high manganese steel and common steel |
Our plant:
we have cooperation with many customers all around the world
