Insert Single Mode Fiber Optic PLC Splitter Coupler
- 100000 Piece / Pieces per Month
- Shanghai/Chongqing/Nongbo
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Sichuan, China | Brand Name: | YUANTONG | Model Number: | PLC |
Product Description

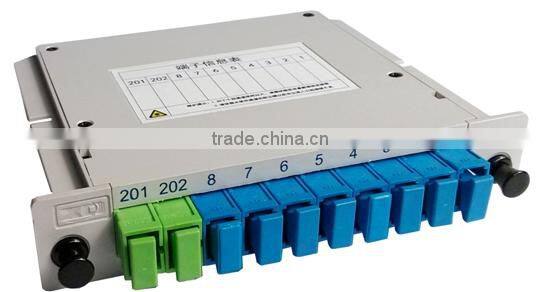

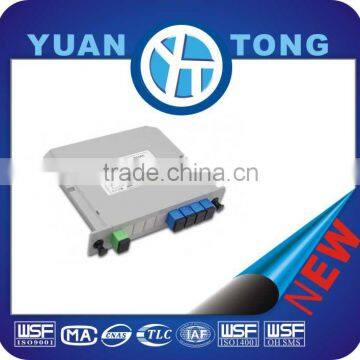

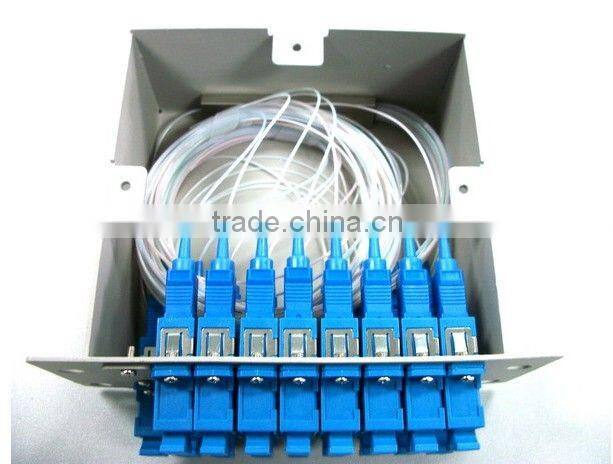

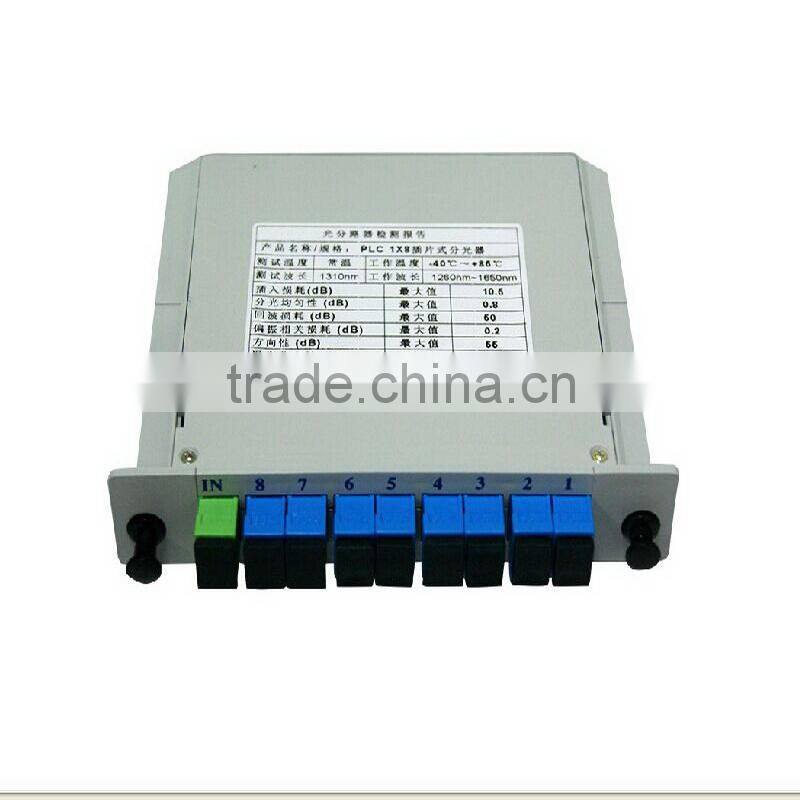

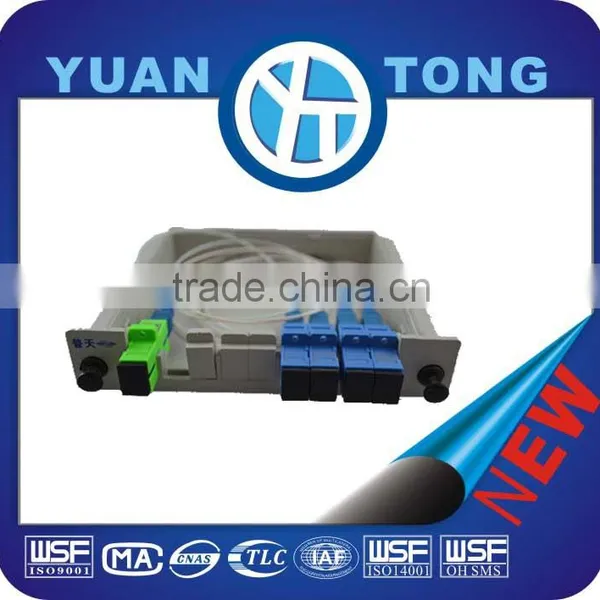

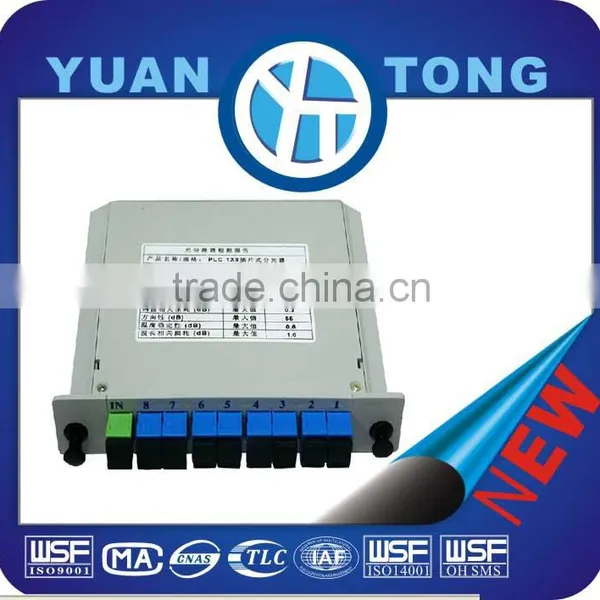

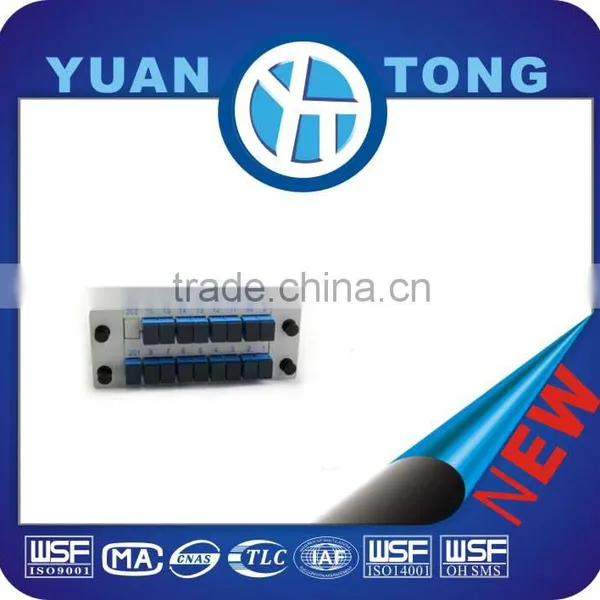

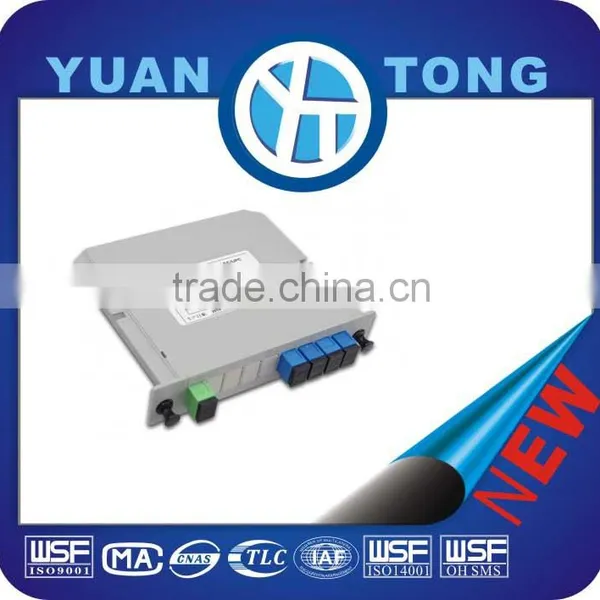

Insert Single Mode Fiber Optic PLC Splitter Coupler
Description
Fiber optic splitter is a device applied in optical fiber systems with one or more input fibers and one or several
output fibers. There are mainly two types of optical splitters. One is fused splitter (FTB Splitter), the other is
Planar Ligthwave Circuits (PLC Splitter). For the fused optical splitter, it can be devided into different rations,
such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.
Planar Lightave Circuits (PLC) can not work with different tration rather than it provides an accurate splitting in
high-density output (such as 8, 16, 32, 64 outputs). However, the most common type of fiber optic splitter splits
the output evenly, which is coming out with the same output of light signals. As a result of its great function,
optical splitter is a very important part in passive optic network (PON).
Types of PLC splitter
Bare fiber PLC splitter
Mini tube PLC splitter
ABS PLC splitter
Insert PLC splitter
Rack mounted PLC splitter
Features
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. High Reliability
4. High Uniformity
5. Outstanding Optical Performance
6. Easy Installation
7. Excellent Environmental Stability and Widely Used
Application
1. FTTH System
2. Cable Television (CATV)
3. Local Aerial Networks (LAN)
4. Passive Optical Networks (PON)
5. Test Equipment
Technical Parameters
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating wavelength (nm) | 1260 - 1560 | |||||
Insertion loss (dB) (S/P grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.5/13.5 | 16.9/16.5 | 21/21.5 |
Loss uniformity (d/B) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return loss (dB)(S/P grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization dependent loss (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength dependent loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature stability (-40 - +85℃) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating temperature (℃) | -40 ~ +85 | |||||
Storage temperature (℃) | -40 ~ +85 |
Packing by cartoon and plastic bags.
Shipping
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
3. OEM and ODM services are available.
Sichuan Yuantong communication Co.,Ltd is a company specializing in the development of optical
communication products, production, sales and with independent right of high-tech enterprises.
Address: Chengdu Southwest Airport Economic Development Zone, from the Shuangliu Airport, highway
takes only a few minutes.
Scale of company: More than 4000 square meters (office building area 1200 square meters, plant construction area of 2500 square meters, containing optical fiber cable workshop, workshop, extrusion workshop, preparatio workshop)
Main product: the covered optical cable, indoor cable and FTTH professional solution for the whole series
of products
Our market: United states, Europe, the middle East and Southeast Asia and many other countries
Why you choose us?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this
way we can provide you with high-end products, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading
terms and custom clearance documents in this way we will make your import process very smoothly and
pleasantly.
Thirdly, your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is
complicated will reply u the second day.
Last but not the least, we have gained Alibaba trade assurance so there’s no worry about our quality.
Payment:
Massive order: T/T, T/T&LC, are all acceptable.
Small order: T/T, Credit- card, west-union are acceptable.
Shipping & Delivery:
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 years after-sale service. If there is no man-made problem. we will replace or repair for you
freely. Even after one year If any problem happened, our team will do our best to help you figure it out, so no
worries.
