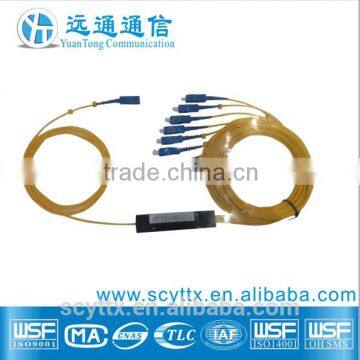

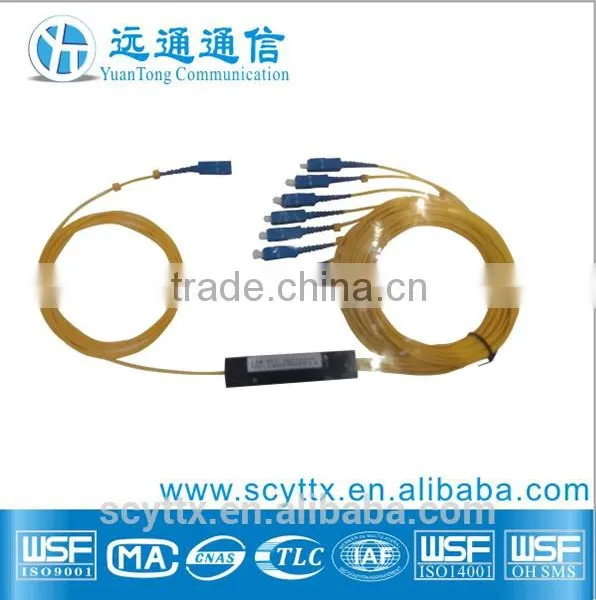

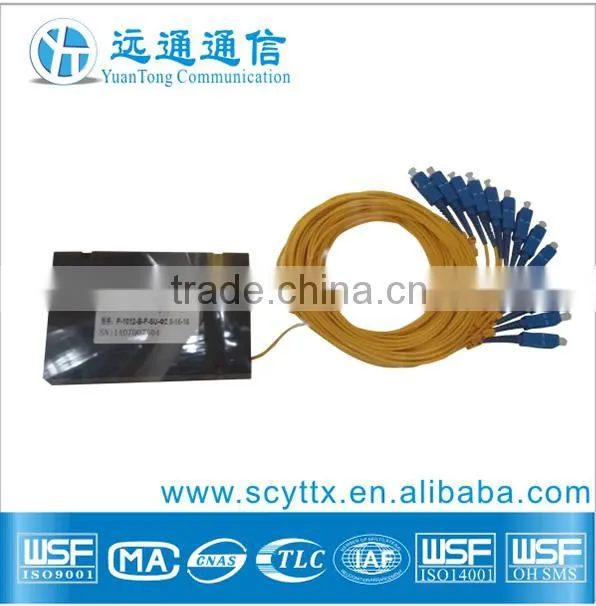

1x16 Fiber PLC Splitter with Standard ABS Plastic Box
Feature
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Applications
FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)
Parameter | Unit | Premium | A | B | ||
Operating Wavelength | nm | 1310±20, 1550±20 /1310±40, 1550±40 or Others | ||||
Excess Loss | Typ. | dB | 0.1 | |||
Polarization Stability | Max | dB | 0.1 | 0.1 | 0.15 | |
Uniformity (50:50) | Max | dB | 0.6 | 0.8 | 1.0 | |
Thermal Stability | Max | dB | 0.2 | 0.3 | 0.4 | |
Directivity | Min | dB | 50 (1x2), 60 (2x2) | |||
Reflectance | Min | dB | 50 (1x2), 60 (2x2) | |||
Operating Temperature | °C | -30 ~ 85 | ||||
Storage Temperature | °C | -40 ~ 85 | ||||
Insertion Loss
| 50/50 | Max | dB | 3.3/3.3 | 3.4/3.4 | 3.6/3.6 |
45/55 | 3.8/2.9 | 3.9/3.0 | 4.0/3.1 | |||
40/60 | 4.3/2.5 | 4.4/2.6 | 4.6/2.7 | |||
35/65 | 4.9/2.1 | 5.0/2.2 | 5.2/2.3 | |||
30/70 | 5.6/1.8 | 5.7/1.85 | 5.9/1.9 | |||
25/75 | 6.4/1.45 | 6.5/1.55 | 6.7/1.6 | |||
20/80 | 7.4/1.15 | 7.5/1.2 | 7.7/1.3 | |||
15/85 | 8.7/0.9 | 8.8/0.95 | 9.0/1.0 | |||
10/90 | 10.5/0.6 | 10.6/0.7 | 10.8/0.8 | |||
5/95 | 13.7/0.35 | 13.8/0.4 | 14.0/0.5 | |||
1/99 | 21.0/0.15 | 21.3/0.2 | 21.6/0.25 | |||
Packing by carton and plastic bag
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
Why you choose us?
Firstly we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this way we can provide you with high-end products, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.
Thirdly your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is complicated will reply u the second day.
Last but not the least , we have gained Alibaba trade assurance so there’s no worry about our quality.
Payment:
Massive order: T/T, T/T&LC, are all acceptable.
Small order: T/T, Credit- card, west-union are acceptable.
Shipping & Delivery:
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 years after-sale service. If there is no man-made problem .we will replace or repair for you freely. Even after one year If any problem happened ,our team will do our best to help you figure it out, so no worries.
