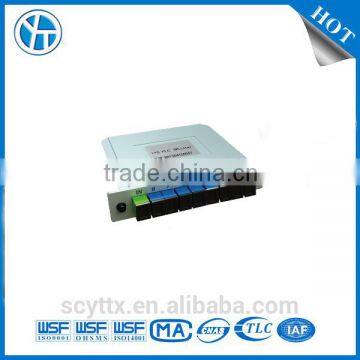

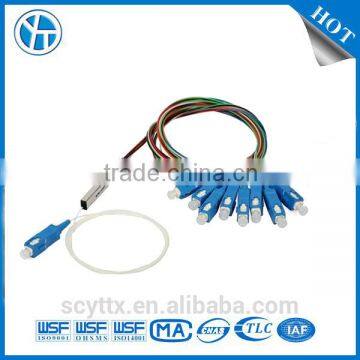

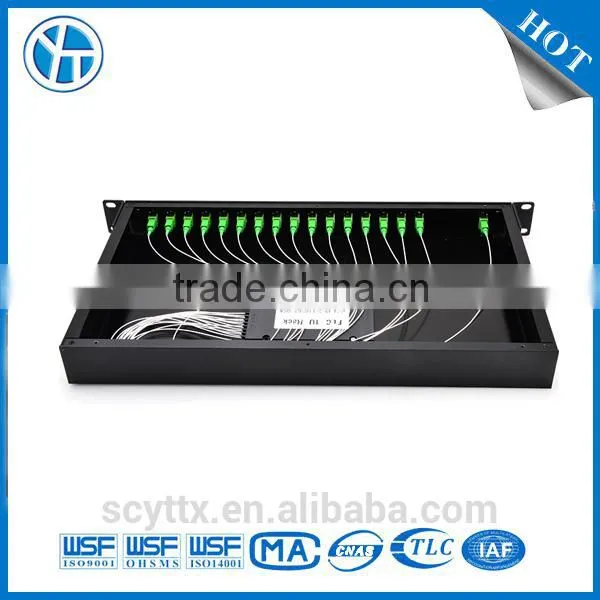

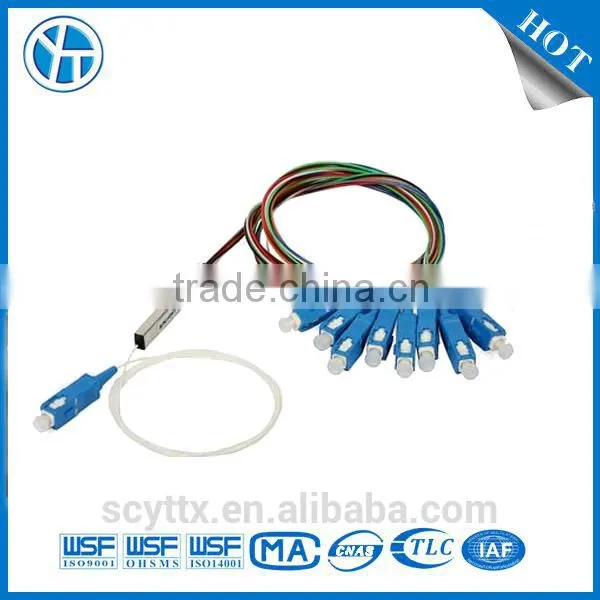

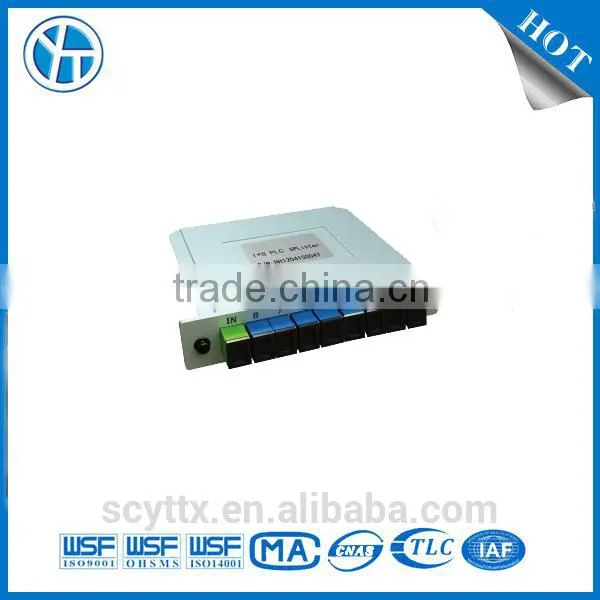

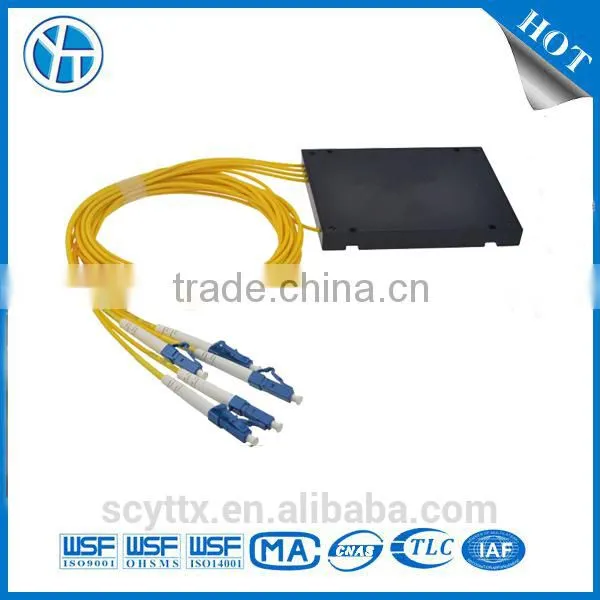

Data Communication 1x16 Fiber PLC Splitter
Feature
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Applications
FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)
Parameter |
Unit |
Premium |
A |
B |
||
Operating Wavelength |
nm |
1310±20, 1550±20 /1310±40, 1550±40 or Others |
||||
Excess Loss |
Typ. |
dB |
0.1 |
|||
Polarization Stability |
Max |
dB |
0.1 |
0.1 |
0.15 |
|
Uniformity (50:50) |
Max |
dB |
0.6 |
0.8 |
1.0 |
|
Thermal Stability |
Max |
dB |
0.2 |
0.3 |
0.4 |
|
Directivity |
Min |
dB |
50 (1x2), 60 (2x2) |
|||
Reflectance |
Min |
dB |
50 (1x2), 60 (2x2) |
|||
Operating Temperature |
°C |
-30 ~ 85 |
||||
Storage Temperature |
°C |
-40 ~ 85 |
||||
|
Insertion Loss
|
50/50 |
Max |
dB |
3.3/3.3 |
3.4/3.4 |
3.6/3.6 |
45/55 |
3.8/2.9 |
3.9/3.0 |
4.0/3.1 |
|||
40/60 |
4.3/2.5 |
4.4/2.6 |
4.6/2.7 |
|||
35/65 |
4.9/2.1 |
5.0/2.2 |
5.2/2.3 |
|||
30/70 |
5.6/1.8 |
5.7/1.85 |
5.9/1.9 |
|||
25/75 |
6.4/1.45 |
6.5/1.55 |
6.7/1.6 |
|||
20/80 |
7.4/1.15 |
7.5/1.2 |
7.7/1.3 |
|||
15/85 |
8.7/0.9 |
8.8/0.95 |
9.0/1.0 |
|||
10/90 |
10.5/0.6 |
10.6/0.7 |
10.8/0.8 |
|||
5/95 |
13.7/0.35 |
13.8/0.4 |
14.0/0.5 |
|||
1/99 |
21.0/0.15 |
21.3/0.2 |
21.6/0.25 |
|||

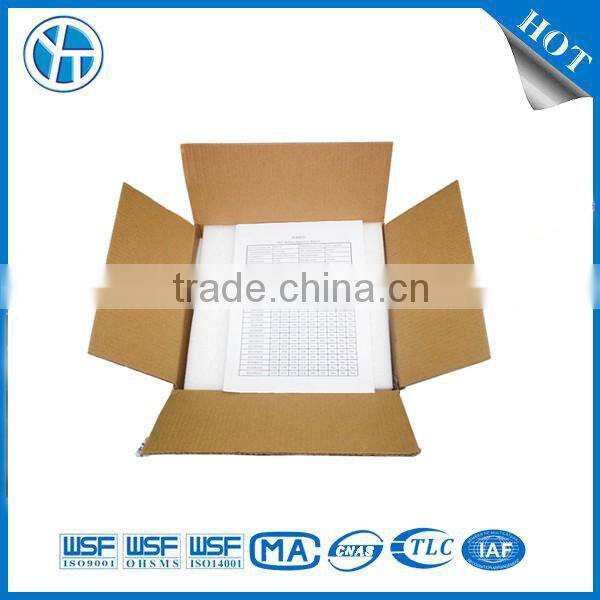

Packing by carton and plastic bag
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
