Single Mode 1x2 1x4 FBT Fiber Optic Splitter
- 100000 Piece / Pieces per Month
- Shanghai/Chongqing/Nongbo
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Sichuan, China | Brand Name: | YUANTONG | Model Number: | FBT |
Product Description

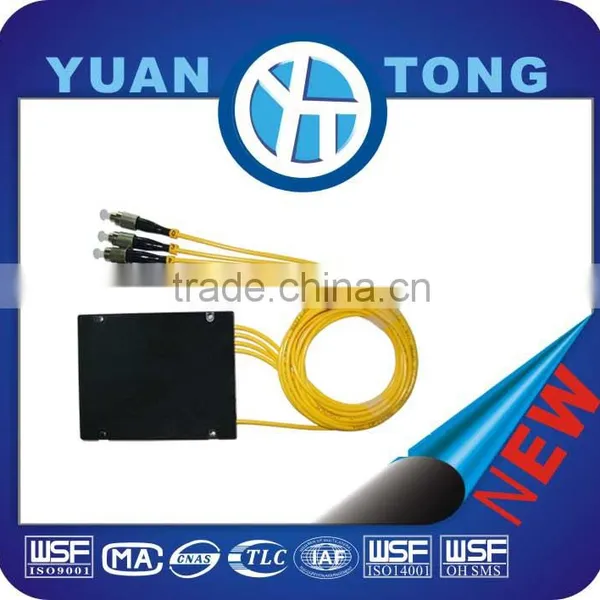

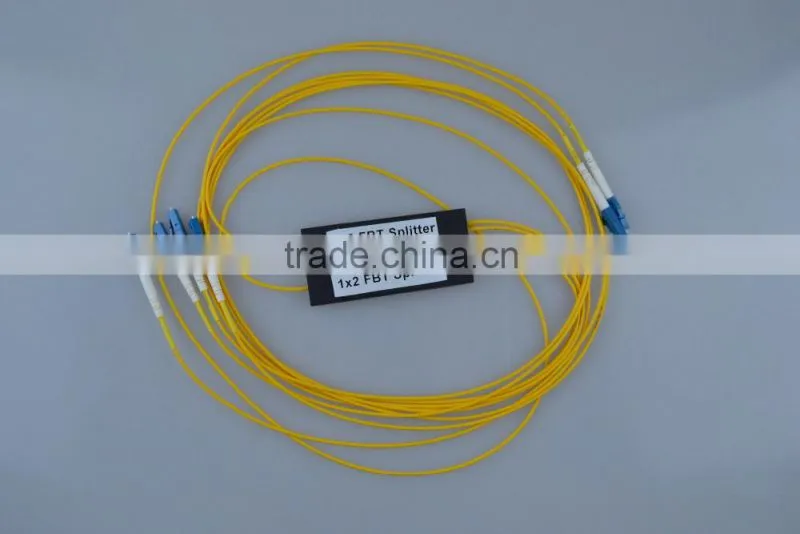

Single Mode 1x2 1x4 FBT Fiber Optic Splitter
Description
Fiber optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
Features
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. High Reliability
4. High Uniformity
5. Outstanding Optical Performance
6. Low Polarization Sensitivity
7. Excellent Environmental Stability and Widely Used
Application
1. FTTx Deployments (FTTP,FTTH,FTTN,FTTC)
2. Cable Television (CATV)
3. Local Aerial Networks (LAN)
4. Passive Optical Networks (PON)
5. Test Equipment
Technical Parameters
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating wavelength (mm) | 1260~1650 | |||||
Insertion loss(dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
Return loss(dB)(S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization dependent loss (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength dependent loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature stability (-40~85℃) (dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating temperature (℃) | -40~+85 | |||||
Storage temperature (℃) | -40~+85 |
Order Information
a. Different split ratios of the optical power can be selected: 40/60, 30/70, 20/80, 10/90, 5/95, 2/98, 1/99...
b. Two out of the 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24 configurations of splitters are available.
d. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default.
Packing by cartoon and plastic bags.
Shipping
1. Free sample is available according to order's situation.
2. All requires will be carefully studied and replied within 24hrs.
3. OEM and ODM services are available.
Sichuan Yuantong Communication Co.,Ltd was established in 2010, which covers an area of 4000 square
meters in the land of Abudance---Chengdu, Sichuan with US$500 million of regstered capital.
Our company is a high-tech companty putting R&D,production and sales into integrated for the fiber optic
cables and related accessories that are widely used in communication, electric power and other industries.
Yuantong owns a team with professional and technical skill, and has a great deal of experience in production
and sales. “Quality First” is the guideline of us.
Yuantong already has a significant partnership with China Telecom, China Mobile and China Unicom. Also we build good relationship with the customers from South America, Middle East and Southeast Asia,
praised by the majority of the users all around the world.
Why you choose us?
Firstly we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this way we can provide you with high-end products, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.
Thirdly your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is complicated will reply u the second day.
Last but not the least , we have gained Alibaba trade assurance so there’s no worry about our quality.
Payment:
Massive order: T/T, T/T&LC, are all acceptable.
Small order: T/T, Credit- card, west-union are acceptable.
Shipping & Delivery:
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 years after-sale service. If there is no man-made problem .we will replace or repair for you freely. Even after one year If any problem happened ,our team will do our best to help you figure it out, so no worries.
