Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 1xN SC PLC Splitter

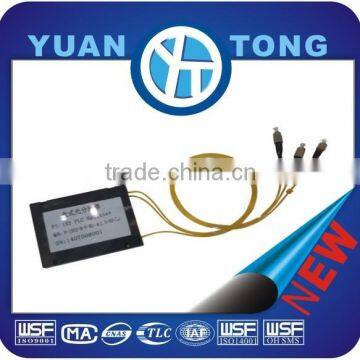

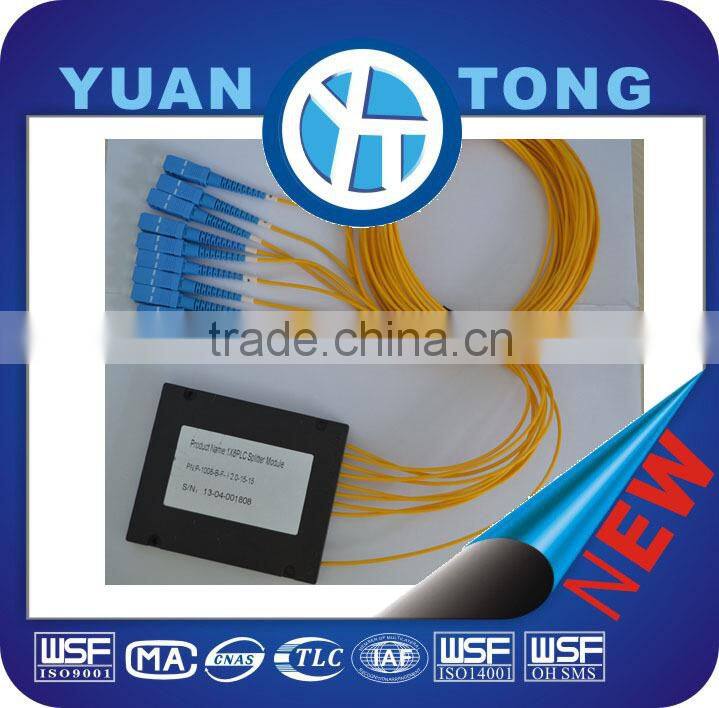

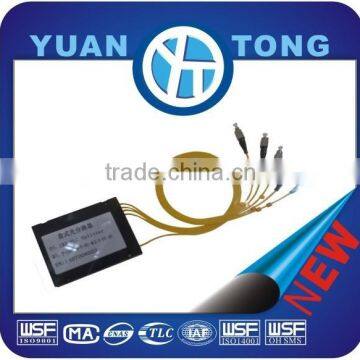

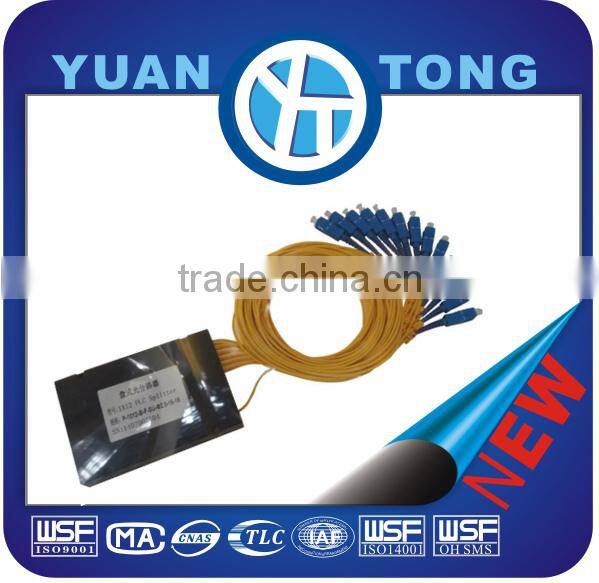

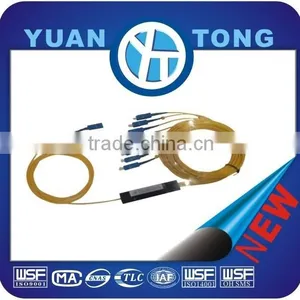

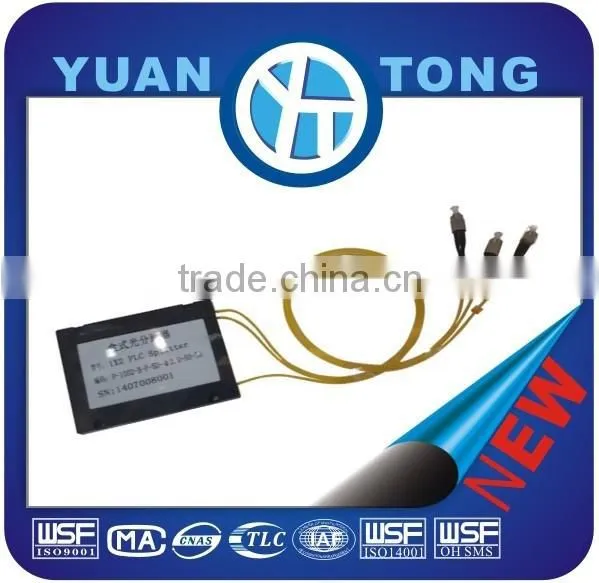

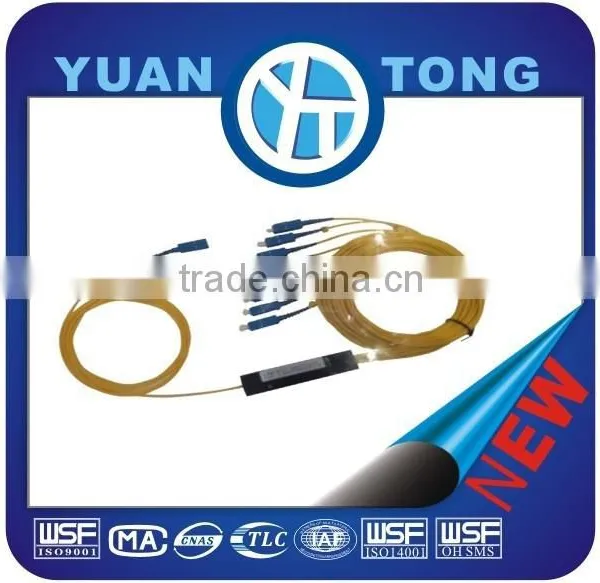

1xN SC PLC Splitter

Name: 1xN SC PLC Splitter
Brand: YUANTONG
SKU: 133333657
Availability: InStock

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

YUANTONG

Model Number:

PLC

Contact Supplier Request Quote Chat Now

Sichuan Yuantong Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Chongqing/Nongbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name YUANTONG

Model Number PLC

Product Description

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

It provides a cost effective and space saving networking solution. It is key component in FTTx networks and is responsible to distribute the signal from central office to numbers of premises. It has a very wide range of operating wavelength. With its compact size, the splitter can be utilzed in in-ground and aerial pedestals as well as rack mount systems.

Features

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. High Reliability

4. High Uniformity

5. Outstanding Optical Performance

6. Easy Installation

7. Excellent Environmental Stability and Widely Used

Application

1. FTTx System

2. Cable Television (CATV)

3. Local Aerial Networks (LAN)

4. Passive Optical Networks (PON)

5. Test Equipment

Technical Parameters

Parameter			Unit	Premium	A	B
Operating wavelength			nm	1310±20, 1550±20/1310±40, 1550±40 or Others
Excess loss		Typ.	dB	0.1
Polarization Stability		Max	dB	0.1	0.1	0.15
Uniformity (50:50)		Max	dB	0.6	0.8	1.0
Thermal Stability		Max	dB	0.2	0.3	0.4
Directivity		Min	dB	50(1x2), 60(2x2)
Reflectance		Min	dB	50(1x2), 60(2x2)
Operating Temperature			℃	-30 ~ 85
Storage Temperature			℃	-40 ~ 85
Insertion loss	50/50	Max	dB	3.3/3.3	3.4/3.4	3.6/3.6
	45/55			3.8/2.9	3.9/3.0	4.0/3.1
	40/60			4.3/2.5	4.4/2.6	4.6/2.7
	35/65			4.9/2.1	5.0/2.2	5.2/2.3
	30/70			5.6/1.8	5.7/1.85	5.9/1.9
	25/75			6.4/1.45	6.5/1.55	6.7/1.6
	20/80			7.4/1.15	7.5/1.2	7.7/1.3
	15/85			8.7/0.9	8.8/0.95	9.0/1.0
	10/90			10.5/0.6	10.6/0.7	10.8/0.8
	5/95			13.7/0.35	13.8/0.4	14.0/0.5
	1/99			21.0/0.15	21.3/0.2	21.6/0.25

Packaging & Shipping

Packing by cartoon and plastic bags.

Our Services

1. Free sample is available according to order's situation.

2. All requires will be carefully studied and replied within 24hrs.

FAQ

Why you choose us?

Firstly we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this way we can provide you with high-end products, competitive price and superb service.

Secondly we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.

Thirdly your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is complicated will reply u the second day.

Last but not the least, we have gained Alibaba trade assurance so there’s no worry about our quality.

Payment:

Massive order: T/T, T/T&LC, are all acceptable.

Small order: T/T, Credit- card, west-union are acceptable.

Shipping & Delivery:

Delivery after balance money received, massive quantity by sea while small patch by air.

Warranty:

All products have been tested before delivery.

All products have 1 years after-sale service. If there is no man-made problem. we will replace or repair for you freely. Even after one year If any problem happened, our team will do our best to help you figure it out, so no worries.
