High Quality 24 Cores Fiber Optic Splice Closure Joint Box
- 10000 Piece / Pieces per Month
- Shanghai/Shenzhen
- T/T Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Yuantong | Model Number: | Splice Closure |
Product Description

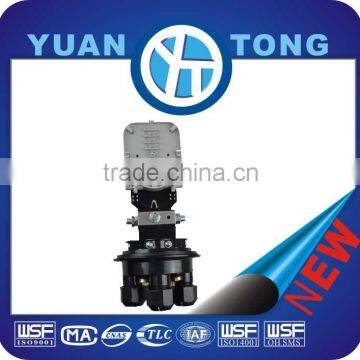

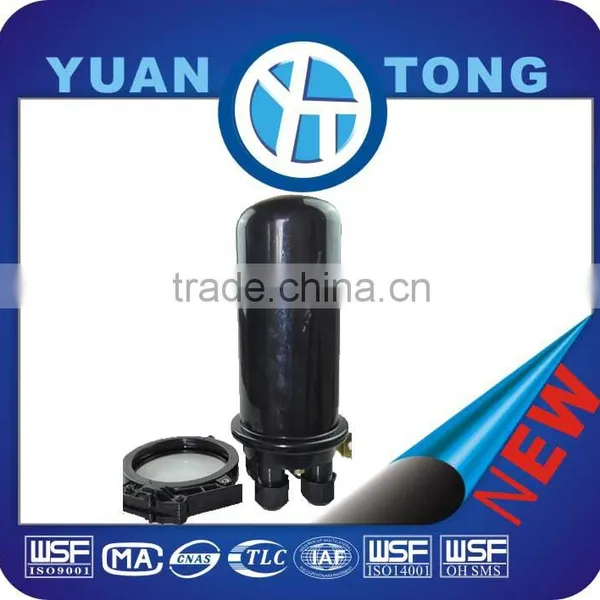

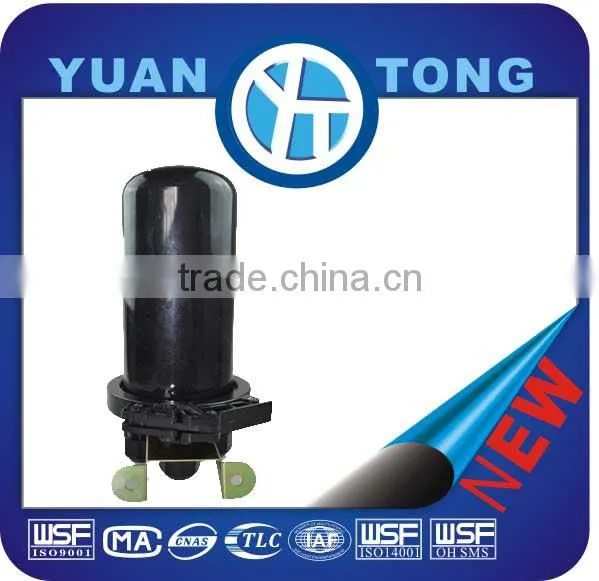

High Quality 24 Cores Fiber Optic Splice Closure Joint Box
Product Description
Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protection for the fiber optic cable splicing and joint. Fiber splice closureis used for aerial, strand-mount FTTH "tap" locations where drop cables are spliced to distribution cables. With different kinds of ports types, the products can fit different fiber optic core numbers. It is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.
Application
Aerial-hanging
Wall-mounting
Duct
Direct-bury
Technical Paremeters
Working temperature: -5℃ to +40℃
Relative humidity: ≤85% (at +30℃)
Atmospheric pressure: 70Kpa~106Kpa
Specification
Fiber optical cable diameter(mm) | φ10~φ17.5 |
Max in and out cable No. | Two in and two out |
Max Capacity | 24 cores (single fiber) |
Dimension (mm) | 430x230x230 |
Sealng material | Vulcanized silicone rubber |
Sealing structure | Mechanical Sealing |
Features
1. Two way cable entries and exists design
2. Can be reopened
3. Can be fixed by metal work
4. Clear optical fiber cable
5. Closure body is made by Super ABS material, and the bolt is made in stainless steel
6. Great corrosion resistance
7. Suitable for any harsh environment
8. Max capacity: 24 cores
9. All the indes reach the YD/T814-2005
Installation Procedure
1. Open the closure
2. Fix the cable and check its length in the closure
3. strip off the cable and cable jacket
4. Seek out the cable cores and get preparation for cable fixation
5. Fix the strengthen cores and reorganize the extra cores
6. Fix the cable and splice the cable
7. Arrange the splice protective tube and fiber
8. Complete inspection
9. Install the dome
Certification
Why Choose us?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of rawmaterial, in this way, we can provide you with high-end products, competitive price and surpb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.
Thirdly, your inquiry will be took seriously and replied immediately within 24 hours, ifthe inquiry is complicated, we will reply you the second day.
Last but not the least, we have gained Alibaba trade assurance so there’s no worry about out quality.
Company Information
Sichuan Yuantong communication Co.,Ltd is a company specializing in the development of optical communication products, production, sales and with independent right of high-tech enterprises.
Address: Chengdu Southwest Airport Economic Development Zone, from the Shuangliu Airport, highway takes only a few minutes.
Scale of company: More than 4000 square meters (office building area 1200 square meters, plant construction area of 2500 square meters, containing optical fiber cable workshop, workshop, extrusion workshop, preparatio workshop)
Staff: More than 150 workers
Main product: the covered optical cable,indoor cable and FTTH professional solution for the whole series of products
Our market: United states, Europe, the middle East and Southeast Asia and many other countries
