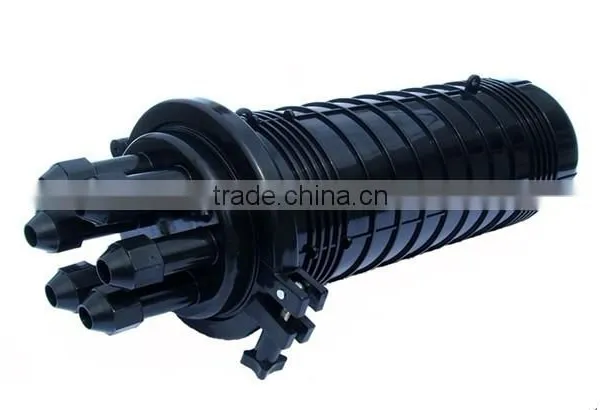

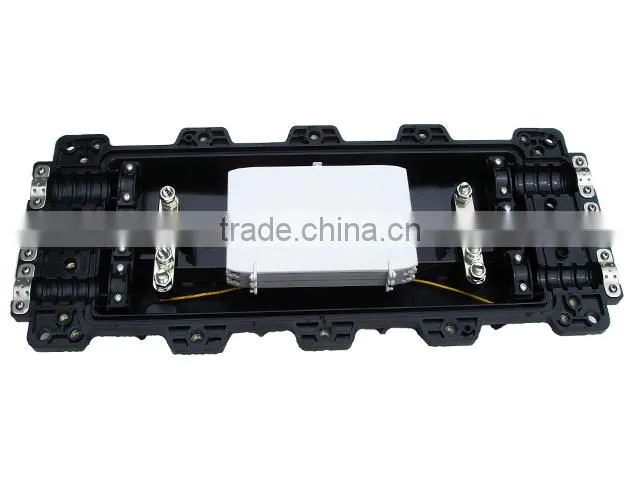

Optical Fiber Splicing Box Joint Closure

Optical  Fiber Splicing Box Joint Closure

Working Environment:

Working temperature: -5°C to +40°C

Relative humidity:≤85%(at +30°C)

Atmospheric pressure: 70Kpa-106Kpa

Applications:

Aerial-hanging

Wall-mounting

Direct-bury

Fiber optic splice closure introduction:

 Fiber optic splice closure provide suitable for cable whose diameter is 10-22mm, they can be used in aerial, duct and direct buried application. These products are made of high quality ABS material and with mechanical sealing structure filled with the sealing material.It can be reopened and reused without changing sealing material.

Specification:

Features:

1, Two- way cable entries and exists design

2, Can be reopened

3, Can be fixed by metal work

4, Clear optical fiber cable

5. Closure body is made by Super ABS material, and the bolt was made in stainless steel

6  Great corrosion resistance

7. Suitable for any harsh environment

8. Max capacity:168 cores

9. All the index reach the YD/T814-2004

Installation procedure:

1. Open the closure

2. Fix the cable and check its length in the closure

3. Strip off the cable and cable jacket

4. Seek out the cable cores and get preparation for cable fixation

5. Fix the strengthen cores and reorganize the extra cores

6. Fix the cable an splice the cable

7. Arrange the splice protective tube and fiber

8. Complete inspection

9. Install the dome.
