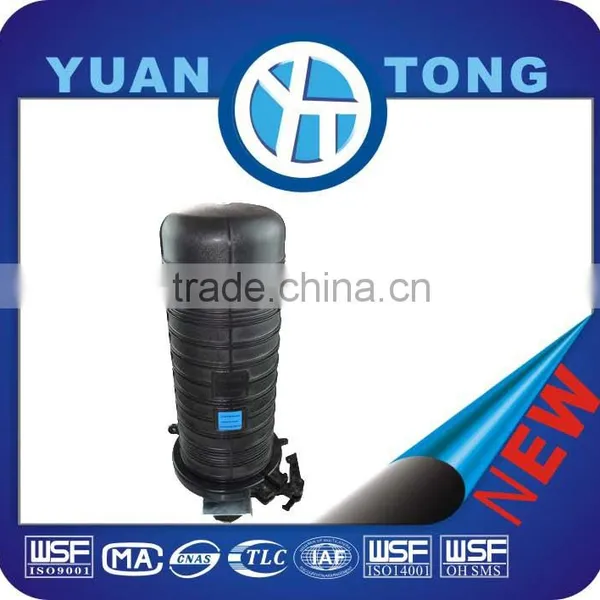

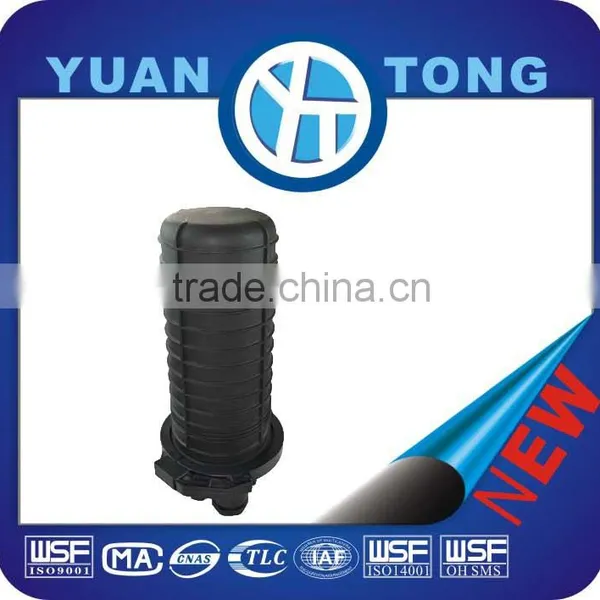

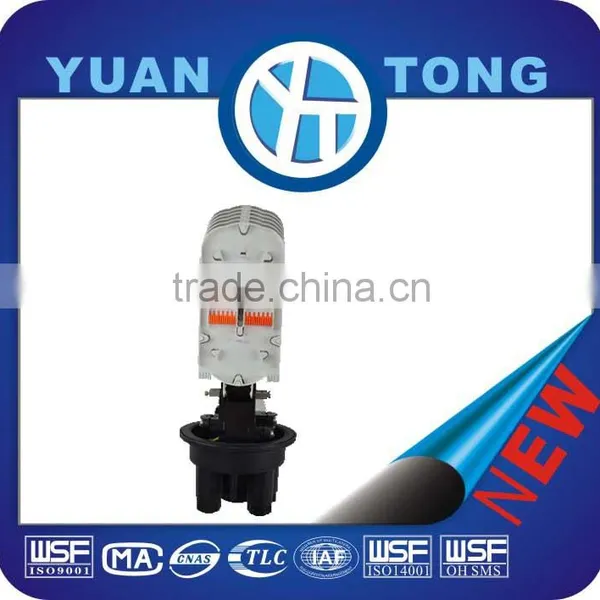

Waterproof 144 Core Dome Fiber Optical Splice Box
Product Description
Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It
provides space and protection for the fiber optic cable splicing and joint. Fiber splice closure is used for aerial,
strand-mount FTTH locations where drop cables are spliced to distribution cables. With different kinds of ports
types, the products can fit different fiber optic core numbers. It is suitable for protecting optical fiber splices in
straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable
projects. We can supply Dome type and In-line type. The max capacity includes 12 core, 24 core, 48 core, 72
core, 96 core and 144 core.
Application
Aerial-hanging
Wall-mounting
Underground
Direct-bury
Technical Paremeters
Working temperature: -5℃ to +40℃
Relative humidity: ≤85% (at +30℃)
Atmospheric pressure: 70Kpa~106Kpa
Specification
Item No. |
In and out No. |
Max Capacity (Fibers) |
Dimension (mm) |
Cable diameter |
Gross weight (kg) |
Sealing structure |
Normal configure |
1 |
1-1 |
48 (4x12) |
500x190x90 |
Φ7-18 |
3 |
Seal tape |
12 |
2 |
1-1 |
60 (5x12) |
502x180x116 |
Φ7-18 |
3 |
Seal tape or silicon rubber |
12 |
3 |
2-2 |
60 (5x12) |
460x180x108 |
Φ7-18 |
3 |
Seal tape or silicon rubber |
24 |
4 |
2-2 |
60 (5x12) |
492x180x104 |
Φ7-25 |
3 |
Seal tape |
24 |
5 |
2-2 |
60 (5x12) |
492x202x104 |
Φ7-25 |
3 |
Seal tape |
24 |
6 |
4-4 |
96 (8x12) |
492x202x175 |
Φ7-25 |
5 |
Seal tape |
24 |
7 |
2-2 |
96 (8x12) 120 (5x24) |
599x195x136 |
Φ7-25 |
4 |
Seal tape or silicon rubber |
24 |
8 |
4-4 |
144 (12x12) 216 (9x24) |
590x195x188 |
Φ7-25 |
8 |
Seal tape or silicon rubber |
48 |
9 |
6-6 |
72 (6x12) |
490x200x140 |
Φ7-25 |
5 |
Seal tape |
24 |
10 |
3-3 |
216 (9x24) |
660x260x250 |
Φ7-25 |
7 |
Seal tape |
36 |
Features
1. Two way cable entries and exists design
2. Can be reopened and re-used
3. Can be fixed by metal work
4. Clear optical fiber cable
5. Closure body is made by Super ABS material, and the bolt is made in stainless steel
6. Great corrosion resistance
7. Suitable for any 144 cores
9. All the indes reach the YD/T814-2005
Certification
Why Choose us?
Firstly, we are manufacturer for the truth, we can control the quality, delivery time, cost of raw material, in this way we can provide you with high-end products, competitive price and superb service.
Secondly, we have a very professional sales team, who are very familiar with all kinds of overseas trading terms and custom clearance documents in this way we will make your import process very smoothly and pleasantly.
Thirdly, your every inquiry will be took seriously and replied immediately within 24 hours, if the inquiry is complicated will reply u the second day.
Last, but not the least, we have gained Alibaba trade assurance so there’s no worry about our quality.
Payment:
Massive order: T/T, T/T&LC, are all acceptable.
Small order: T/T, Credit- card, west-union are acceptable.
Shipping & Delivery:
Delivery after balance money received, massive quantity by sea while small patch by air.
Warranty:
All products have been tested before delivery.
All products have 1 years after-sale service. If there is no man-made problem, we will replace or repair for you freely. Even after one year If any problem happened, our team will do our best to help you figure it out, so no worries.
Company Information
Sichuan Yuantong communication Co.,Ltd is a company specializing in the development of optical communication products, production, sales and with independent right of high-tech enterprises.
Address: Chengdu Southwest Airport Economic Development Zone, from the Shuangliu Airport, highway takes only a few minutes.
Scale of company: More than 4000 square meters (office building area 1200 square meters, plant construction area of 2500 square meters, containing optical fiber cable workshop, workshop, extrusion workshop, preparatio workshop)
Staff: More than 150 workers
Main product: the covered optical cable, indoor cable and FTTH professional solution for the whole series of products
Our market: United states, Europe, the middle East and Southeast Asia and many other countries
Our Services
1.Order Information:
Trade term: EXW/FOB
Delivery Time: 3-5 working days time.15-25 working days mass order.
2.Trade Terms:
Payment term: T/T 50% Deposit after order confirmed, later delivery pay the 50% (remaining balance) after goods ready before shipping.
Sample: Be ready in 3~10 days once payment received.
3.Our services:
For all your inqires about our product, we will reply to you within in 24 hrs.
We offer OEM and ODM services and we can print your logo in our products.
