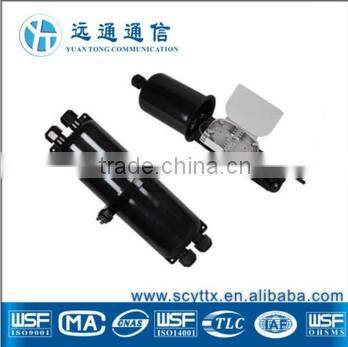

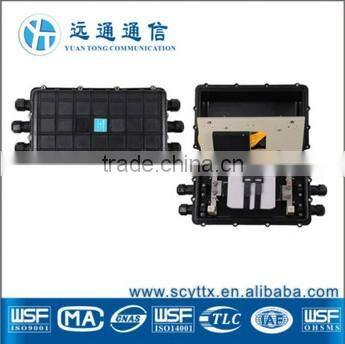

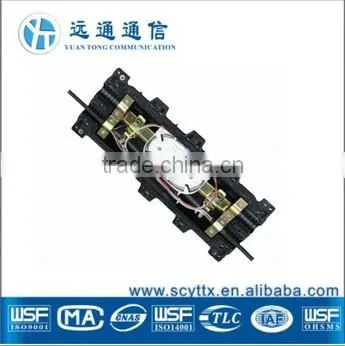

FTTH High Quality ABS Material Optic Fiber Splice Box Closure

Specifications

Working Environment:

Working temperature: -5°C to +40°C

Relative humidity:≤85%(at +30°C)

Atmospheric pressure: 70Kpa-106Kpa

Applications:

Aerial-hanging

Wall-mounting

Direct-bury

144 core fiber optic splice closure introduction:

144 core fiber optic splice closure provide suitable for cable whose diameter is 10-22mm, they can be used in aerial, duct and direct buried application. These products are made of high quality ABS material and with mechanical sealing structure filled with the sealing material.It can be reopened and reused without changing sealing material.

Specification:

Features:

1, Two- way cable entries and exists design

2, Can be reopened

3, Can be fixed by metal work

4, Clear optical fiber cable

5. Closure body is made by Super ABS material, and the bolt was made in stainless steel

6  Great corrosion resistance

7. Suitable for any harsh environment

8. Max capacity:168 cores

9. All the index reach the YD/T814-2004

Installation procedure:

1. Open the closure

2. Fix the cable and check its length in the closure

3. Strip off the cable and cable jacket

4. Seek out the cable cores and get preparation for cable fixation

5. Fix the strengthen cores and reorganize the extra cores

6. Fix the cable an splice the cable

7. Arrange the splice protective tube and fiber

8. Complete inspection

9. Install the dome.

1.Order Information:

   Trade term:EXW/FOB

   Delivery Time:3-5 working days time.15-25 working days mass order.

   Warranty :

2.Trade Terms:

    Payment term:T/T 50% Deposit after order confirmed,later delivery pay the 50%(remaining balance) after goods ready before shipping.

   Sample :Be ready in 3~10 days once payment received.

3.Our services:

    For all your inqires about our product,we will reply to you within in 24 hrs.

    We offer OEM and ODM services. Can print your logo in our products.
