Specifications
Our aerial fiber optic cable1.Steel strength member
2.SM fiber G652D
3.Aluminum tape & a layer of steel wires
Application: | Long distance communication, local communication, CATV, computer network transmission system, etc. |
Low dispersion and attenuation Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance With small cable diameter, light cable weight, self-supporting Operating Temperature : -40 ~ +60 C
Constructure of products:

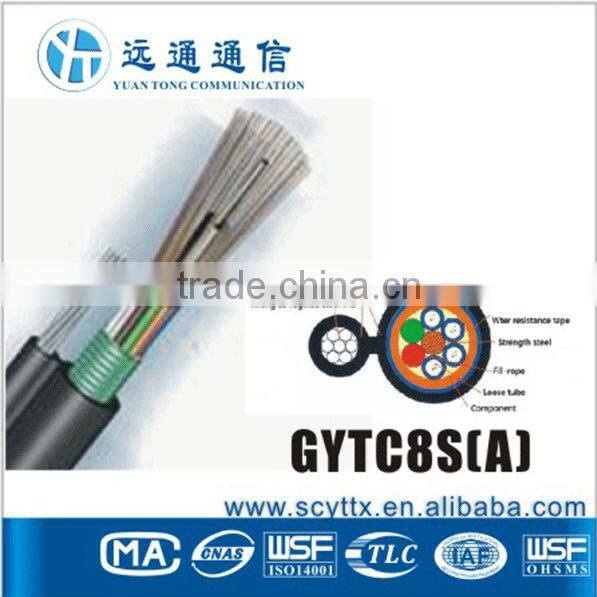

2~144 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer coated steel tape, PE outer sheath, fig 8 type, the suspension line (1.2x3=3.6mm), 7 steel wires stranded together. G652D SM fiber, detailed specification on your request.
Data Sheet:
Fiber Count | Cable size(mm) | Cable weight (kg/km) | Minimum bending Radius (mm) D=cable diameter | Max. tensile load (N) | Max. crush load (N/100mm) | |||
static | dynamic | Short-term | Long-term | Short-term | Short-term | |||
30 and below | 10.1*19.3 | 188 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
32~36 | 10.6*19.9 | 208 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
38~60 | 11.4*20.8 | 217 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
62~72 | 12.2*21.6 | 250 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
74~84 | 13.0*22.4 | 267 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
86~96 | 13.8*23.2 | 285 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
98~108 | 15.0*24.4 | 304 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
110~120 | 15.4*24.8 | 322 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
122~132 | 16.2*25.6 | 343 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
134~144 | 17.0*26.4 | 364 | 10D | 20D | 6000 | 3000 | 1000 | 300 |
Messenger wire | Φ3.6mm stranded wire | |||||||
Connection part | H×W:2.8×2.1 mm | |||||||
Operating temperature | -40~+60°C | |||||||
