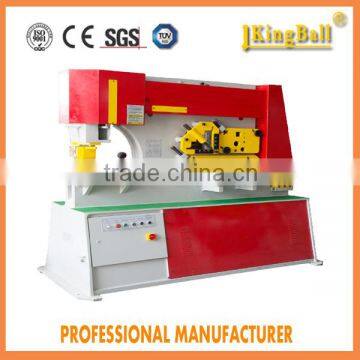

Help CenterProfessional Manufacturer! Famous Brand KingBall Q35Y-12 Hydraulic Small Iron Worker
Related Products
-
Professional Manufacturer! High Precision Q35Y-12 Hydraulic Small Iron WorkerUS$ 6,900 - 6,900MOQ: 1 Set -
Professional Manufacturer! 2016 Hot Sale Q35Y-12 Hydraulic Small Iron WorkerUS$ 6,900 - 6,900MOQ: 1 Set
-
Q35Y-30 Hydraulic Iron Worker DiesUS$ 21,399 - 21,399MOQ: 1 Set
-
2016 New! Q35Y-30 Hydraulic Small Iron Worker DiesUS$ 21,399 - 21,399MOQ: 1 Set
-
Professional Manufacturer! 2016 Popular Q35Y-12 Hydraulic Small Iron WorkerUS$ 6,900 - 6,900MOQ: 1 Set
Product Pictures& Descriptions
Product Description
- Double cylinders hydraulic punch & shear machine

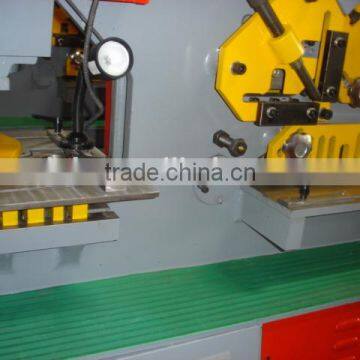

- Five independent stations for punch, shear, notcher, section cut

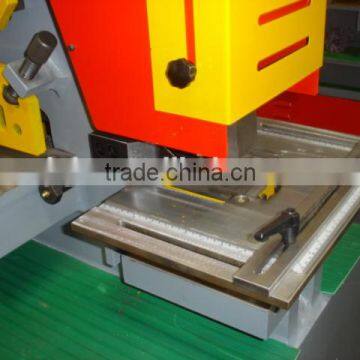

- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications

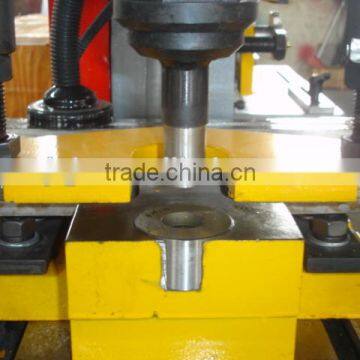

- Universal die bolster, easy change punch holder fitted, punch adapters supplied
- Angle, round & square solid monoblock crop station

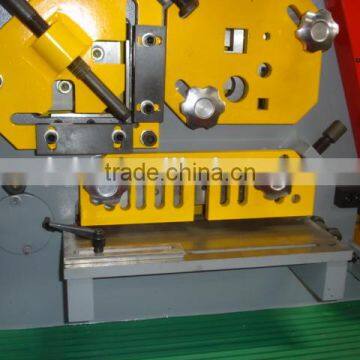

- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system

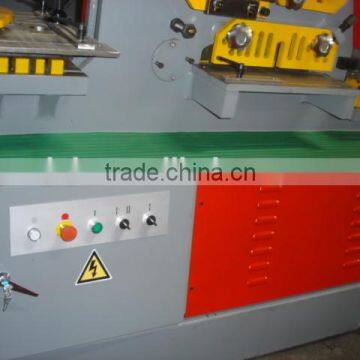

- Electric panel with overload protaction elements and ingetrated controls
- Safety movable foot pedal
Technical Parameters
Model |
Q35Y-12 |
Punching Pressure (T) |
35 |
Max. cutting thickness of sheet plates (mm) |
12 |
Material strength (N/mm²) |
≤450 |
Angle of Shear (°) |
7° |
Flat bar shearing (T*W)(mm) |
12*300 |
Max. length of cylinder stroke (mm) |
35 |
Trips frequency (times/min) |
10-18 |
Depth of throat (mm) |
115 |
Max. punching diameter (mm) |
25 |
Motor power (KW) |
4 |
Overall dimensions (L*W*H)(mm) |
950*550*1800 |
Weight(kg) |
1200 |
Types of profiled steel for shearing (If you want Joist or Channel, need special order)
Steel category |
Round Bar |
Square Bar |
Equal Angle |
T Bar |
I-iron |
Channel steel |
|||
90° Shearing |
45° Shearing |
90° Shearing |
45° Shearing |
||||||
Q35Y-12 |
35 |
30*30 |
100*100*8 |
|
100*55 |
|
100*55 |
100*48 |
|
punching tools
our clients
our service
we have overseas engineers available
warranty is 2 years
shipping
TIPS:
we also have cutting machines, rolling machine, shearing machings and other machines,
If you want to know more about us, please contact us.We are available any time. Thanks.
