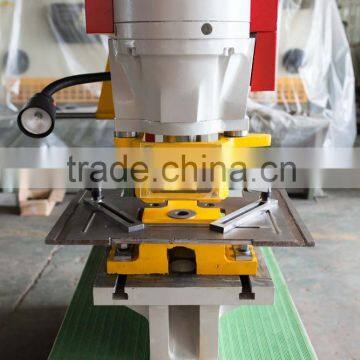

Q35Y-16 Round Bar Cutting Hydraulic Iron Worker
- 80 Set / Sets per Month
- Any Port
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |
Place of Origin: | Jiangsu, China | Brand Name: | KingBall | Model Number: | Q35Y |
Voltage: | 380V | Power(W): | 5.5KW | Weight: | 1800kg |
Dimension(L*W*H): | 1700*750*1800 | Certification: | CE ISO | Warranty: | 2 Years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description

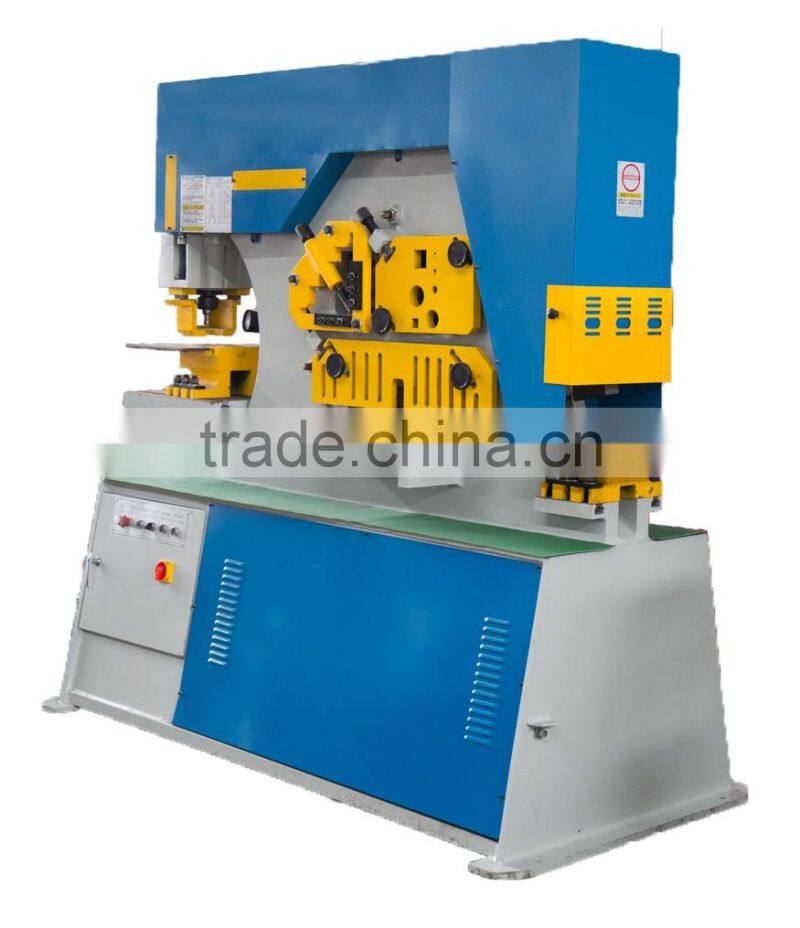

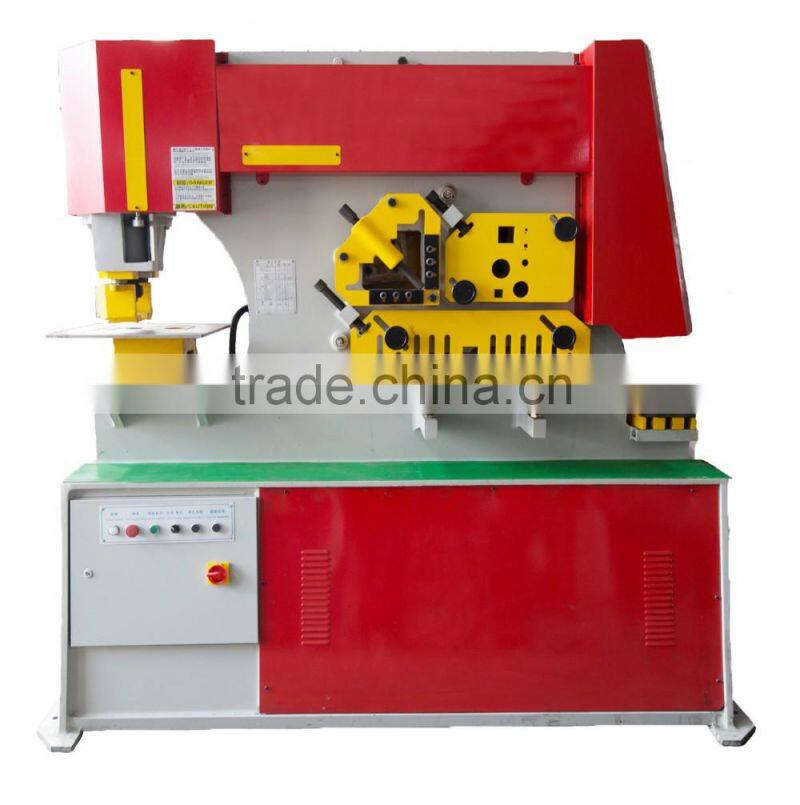

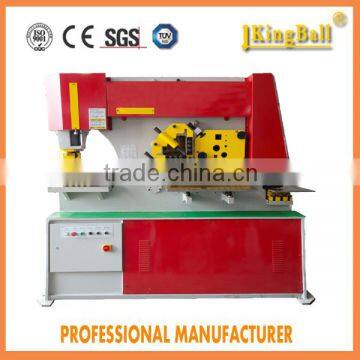

King ball brand Q35Y Series Hydraulic Iron worker
Mould Type
This iron worker uses hydraulic driving system and is the latest punching and shearing machine in our country, Various metal plates, square steel, Round steel, angle steel, channel steel and I-iron can be cut, punched and notched by this machine. It is also equipped with a stop device for cutting.
- Double cylinders hydraulic punch & shear machine, the same as iron worker
- Five independent stations for punch, shear, notcher, section cut

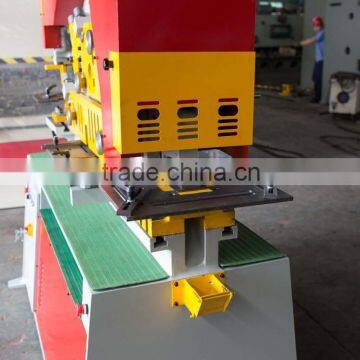

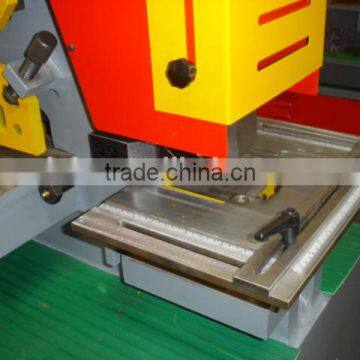

- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications

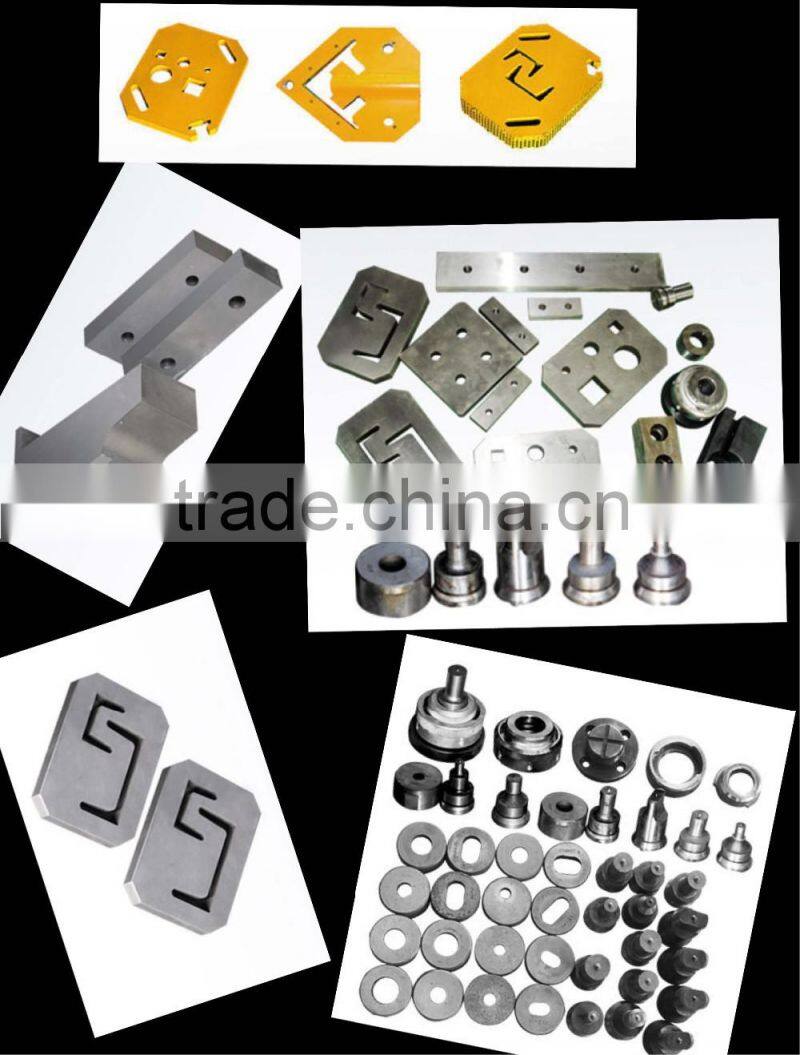

- Universal die bolster, easy change punch holder fitted, punch adapters supplied

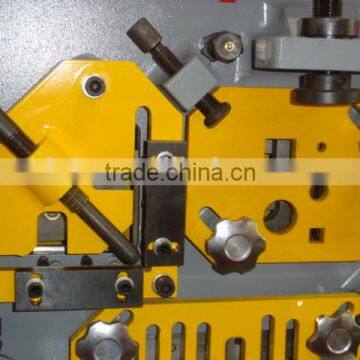

- Angle, round & square solid monoblock crop station
- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system
- Electric panel with overload protaction elements and ingetrated controls
- Safety movable foot pedal
Certification

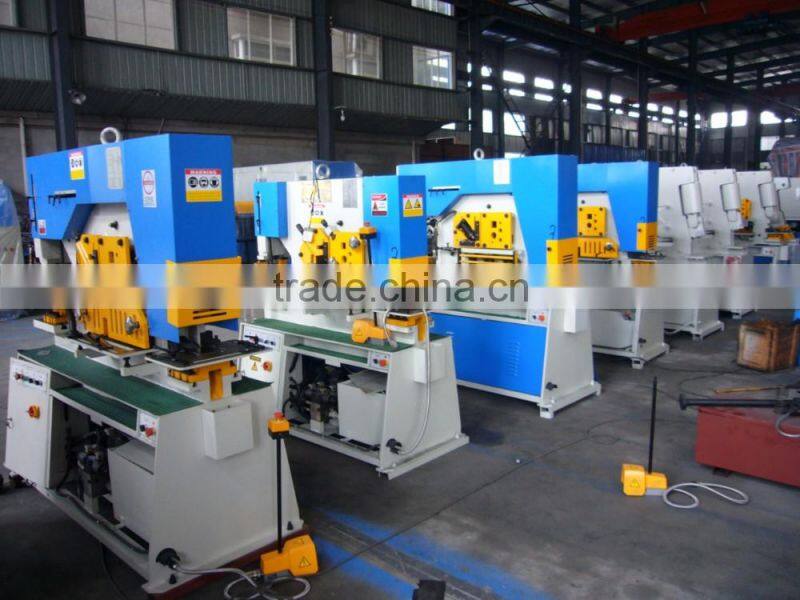

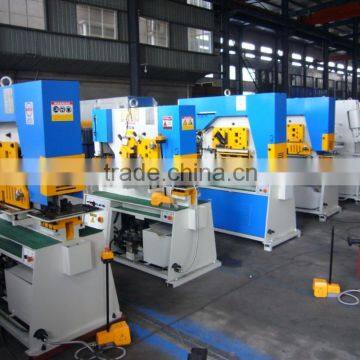

Factory
Our Customers
We still manufacture press brake, shearing machine, rolling machine and many other products.
For more details please contact me!
Website: http: //www. njjqjc. com
Q35Y-16
Technical Parameters:
Model | Q35Y-16 |
Punching Pressure (T) | 55 |
Max. cutting thickness of sheet plates (mm) | 16 |
Material strength (N/mm²) | ≤450 |
Angle of Shear (°) | 7° |
Flat bar shearing (T*W)(mm) | 16*250 8*400 |
Max. length of cylinder stroke (mm) | 80 |
Trips frequency (times/min) | 11-20 |
Depth of throat (mm) | 300 |
Max. punching diameter (mm) | 26 |
Motor power (KW) | 5.5 |
Overall dimensions (L*W*H)(mm) | 1700*750*1800 |
Weight(kg) | 1800 |
Types of profiled steel for shearing (If you want Joist or Channel, need special order)
Steel category | Round Bar | Square Bar | Equal Angle | T Bar | I-iron | Channel steel | |||
90° Shearing | 45° Shearing | 90° Shearing | 45° Shearing | ||||||
Section view | |||||||||
Q35Y-16 | 45 | 40*40 | 125*125*12 | 70*70*8 | 120*120*12 | 60*60*8 | 126*74*5 | 126*53*5.5 | |
