High Quality Carbon Steel/ Stainless Steel Choke Valve

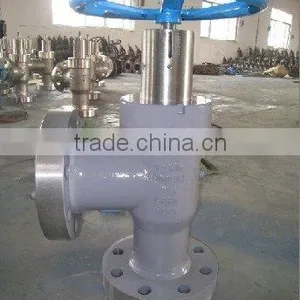

High Quality Carbon Steel/ Stainless Steel Choke Valve thumbnail-1
High Quality Carbon Steel/ Stainless Steel Choke Valve photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Root
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Shanghai Changhao High Pressure Pipe Fittings Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Root
Pressure High Pressure
Power Pneumatic
Material Forged
Temperature of Media Medium Temperature
Media Water
Port Size 1"~24"
Place of Origin Shanghai, China
Model Number CH-COV
Brand Name changhao

Specifications

Choke valve
1. High quality but competitive price;
2. Easy installation;
3. Safety and convenient to use.


The choke valve, a main component of Christmastree, is design to control production rate of the oil well,with working pressure up to 10000psi. Choke valvescan be classified as follows: adjustable choke valves and positive choke valves. By rotating handwheel todrive the stem, the adjustable choke valve is designedto adjust the effective area available for the flow to ac-complish control of production rate. The positive chokevalve is design to accomplish control of production rateby changing flow beans.


. The coupling nut used for connecting the bonnetand body allows fast make-up and break-out
. Stem tip and bean adaptor are fabricated from spe-cial carbide alloys for corrosion and abrasionresistance.
. Indicator lens with scale marks allows the operatorto know stem's position and actual orifice area
. Turn handwheel counter-clockwise and the valvewill open; turn handwheel clockwise and the valvewill close.

Detailed Product Description:

1) Standards:
a) Basic design: API 609
b) Test: API 598, BS 6755
2) Size: 2 1/16'' - 4 1/16''
3) Rating: 3000-10000PSI
4) Body materials: cast iron, ductile iron, cast steel, stainless steel
5) Operation: hand wheel, gear, motor, pneumatic operator
6) End connection: wafer, lug, double flange
7) Packing:PTFE
8) Sealing O ring:NBR
9) Working temperature: PU
10) Working fluid: petroleum,natural gas,
11) Design features:
a) Concentric design
b) Bi-directional service
c) Self cleaning
d) Blow-out proof shaft
e) API 6A,ISO 5211 top flange
